Brake Drum Coupling for Crane

Brake Drum Coupling for Crane Specification

Sealing
No integrated sealing, relies on mechanical fit

Thread
No threads, uses bolt holes for fastening

Head Code
Round with drilled bolt holes

Connection
Flanged bolt connection and keyed shaft coupling

Bore
Customizable as per shaft requirements

Max. Speed
Up to 2000 RPM

Torque
Designed for high torque transmission; commonly up to 50,000 Nm

Material
High strength steel or cast iron with brass/bronze bushings

Structure
Composed of a flanged drum, internal gear, and coupling plate

Standard
Conforms to general mechanical and crane equipment standards (optional as per project)

Inner Diameter
Typically ranges from 50 mm to 400 mm (custom sizes available)

Outer Diameter
Ranges from 100 mm to 600 mm (custom sizes available)

Application
Used in crane systems for connecting the brake drum to the drive

Surface Treatment
Machined and anti-corrosive coating

Technique
Precision machining and gear hobbing

Shape
Cylindrical with flanged fittings and geared inner profile

Installation Type
Easy assembly and maintenance

Noise Level
Low during operation

Alignment
Designed for accurate shaft alignment

Compatibility
Fits both metric and inch shafts

Gear Teeth
Hardened/precision cut for durability

Customization
Available as per user specification and OEM drawings

Finish
Polished and anti-rust finish

Temperature Range
-20C to +150C

Resilience
High shock load absorption

Usage
Power transmission and mechanical link

Weight
Depends on size, ranges from 8 kg to 60 kg

Service Life
Long operational durability with minimal lubrication maintenance

Brake Drum Coupling for Crane About

Brake Drum Coupling for EOT Crane

Product Description:

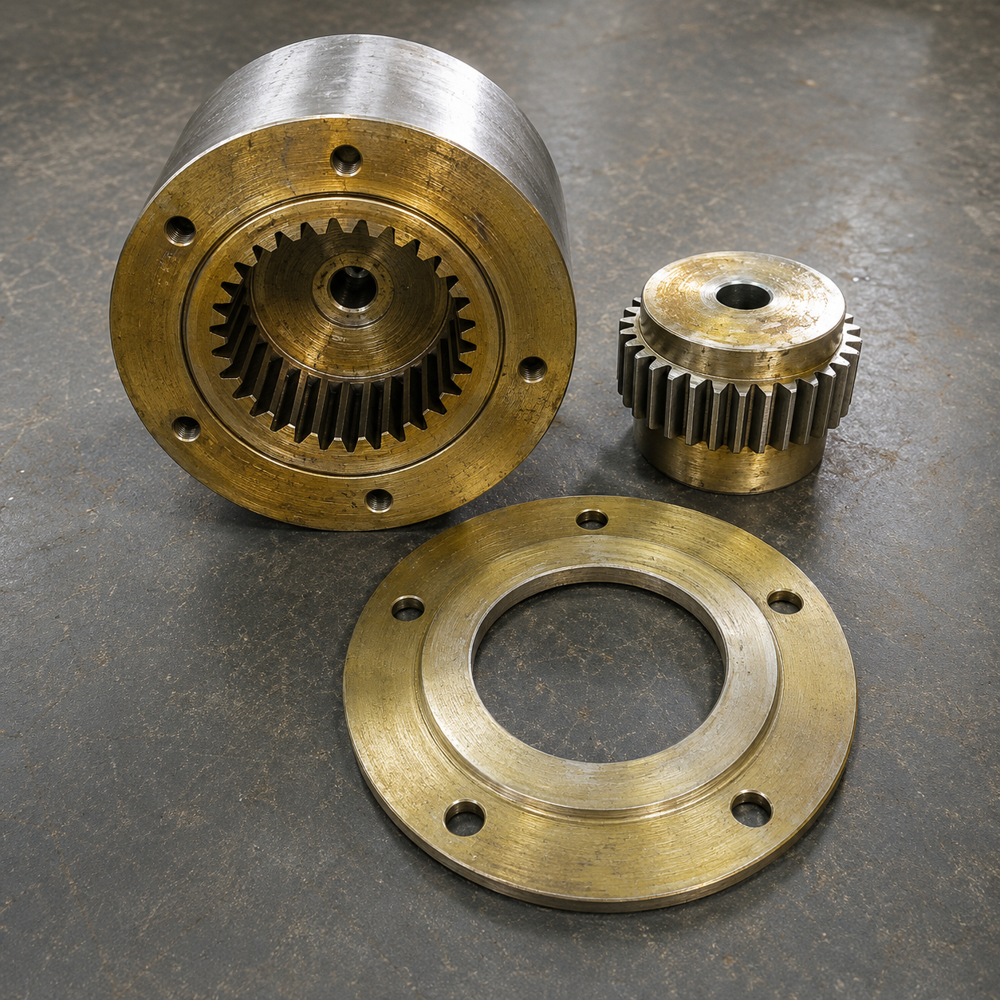

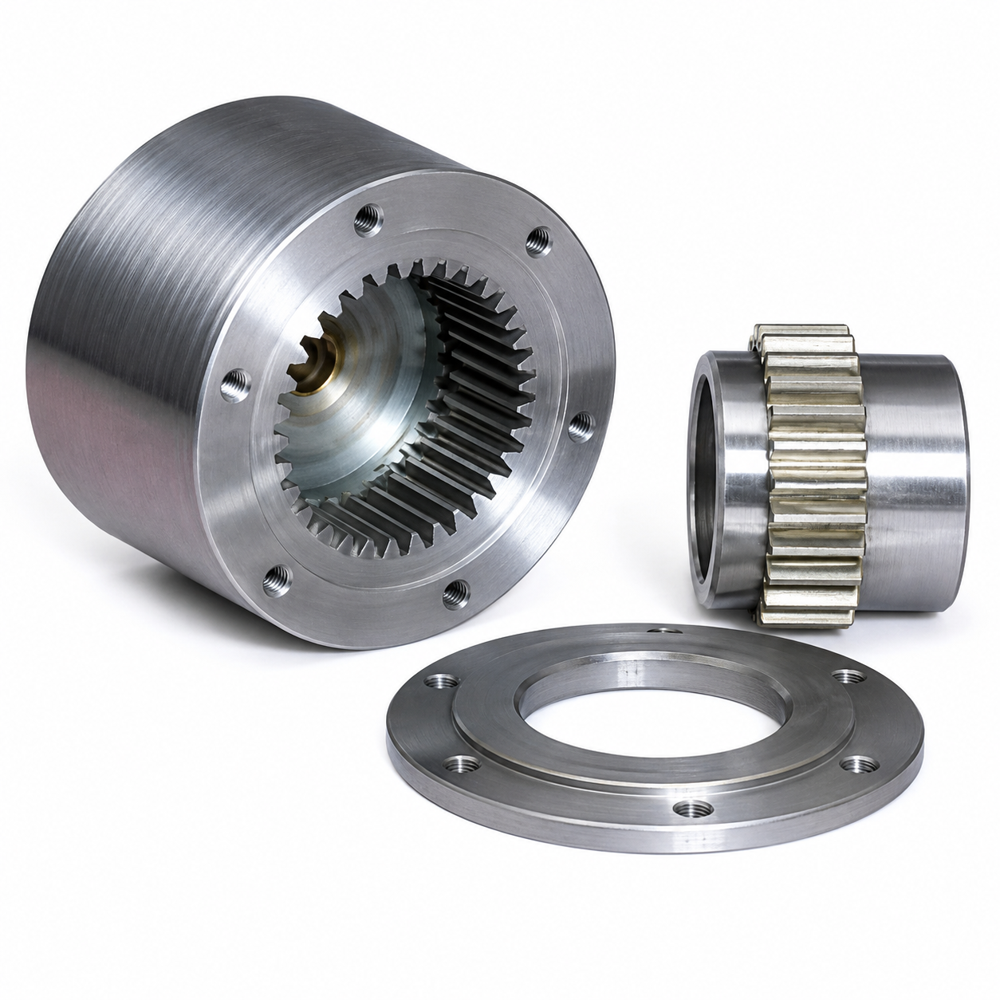

The Brake Drum Coupling for EOT Crane is a precision-engineered mechanical component that combines the functions of a coupling and brake drum in one compact unit. It is designed to connect the motor and gearbox shafts while simultaneously providing a braking surface for the application of mechanical or electromagnetic brakes.

Made from high-grade cast iron or steel, the brake drum coupling ensures high strength, accurate alignment, and vibration-free performance. It is widely used in EOT cranes, hoists, and material handling machinery where smooth torque transmission and reliable braking are essential.

Precision Engineering for Crane Safety

Our brake drum couplings are crafted through precision machining and gear hobbing, ensuring optimal fit and alignment for crane applications. This design reduces vibration, minimizes operational noise, and provides high shock absorption. A flanged, cylindrical structure with machined surfaces and anti-corrosive coating further safeguards the component against harsh working conditions.

Versatile Compatibility and Easy Maintenance

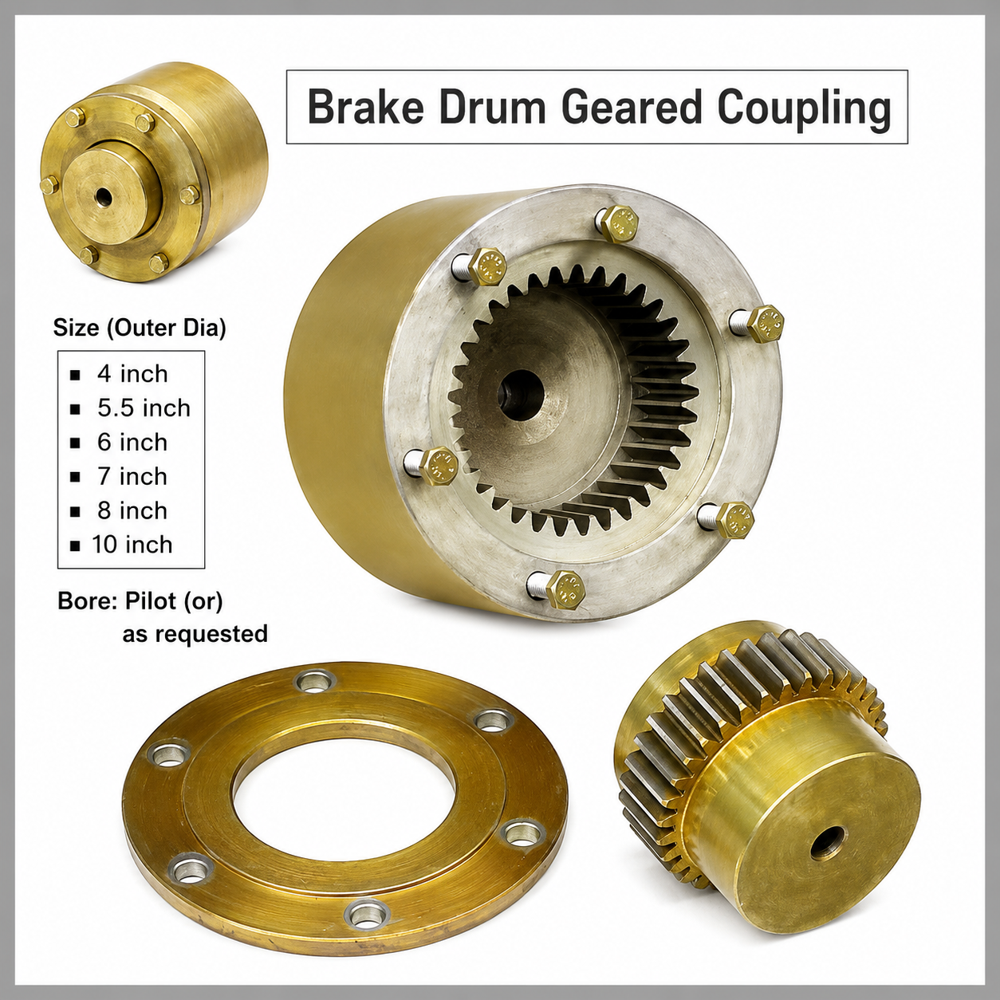

Accommodating both metric and inch shafts, the coupling design features drilled bolt holes for secure, easy flanged installation. Customizable bore sizes and inner/outer diameters allow seamless integration with diverse shaft dimensions, while the robust mechanical fit eliminates the need for integrated sealing, simplifying upkeep and reducing service times.

Durability and Long-Term Efficiency

With its hardened or precision-cut gear teeth and anti-rust finish, this brake drum coupling offers exceptional wear resistance and longevity. Designed to withstand temperatures from -20C to +150C and transmit torque up to 50,000 Nm, it easily handles heavy-duty crane demands. Minimal lubrication requirements ensure time-saving, cost-effective maintenance.

FAQ's of Brake Drum Coupling for Crane:

Q: How is the brake drum coupling installed and maintained?

A: The coupling features a flanged bolt connection and keyed shaft fitting, allowing straightforward assembly with basic tools. Maintenance is minimal, typically involving periodic checks for wear and lubrication, thanks to its precision-machined parts and anti-corrosive surface treatment.

Q: What benefits does the anti-rust, polished finish provide for crane applications?

A: The anti-rust, polished finish protects the coupling from corrosion and environmental damage, prolonging operational lifespan, reducing maintenance intervals, and ensuring reliable performance in outdoor or demanding environments.

Q: When should a brake drum coupling be used in crane systems?

A: This coupling is ideal for mechanical linking between the brake drum and drive in crane applications requiring robust torque transmission, high shock load absorption, and precise shaft alignment.

Q: Where can this coupling be applied apart from cranes?

A: While designed primarily for cranes, it is also suitable for other industrial machinery that demands high torque, reliable shaft alignment, and resilience to shock loads, such as hoists, winches, and conveyor systems.

Q: What customization options are available for the brake drum coupling?

A: The coupling can be tailored to user specifications and OEM drawings, including custom bore sizes, inner and outer diameters, gear teeth profiles, and material selection to match unique project or equipment requirements.

Q: How does the coupling enhance operational safety and efficiency?

A: Its precise alignment, high shock load absorption, and low noise contribute to stable crane operation and reduced vibration, making for safe and efficient lifting tasks with decreased downtime and maintenance needs.
