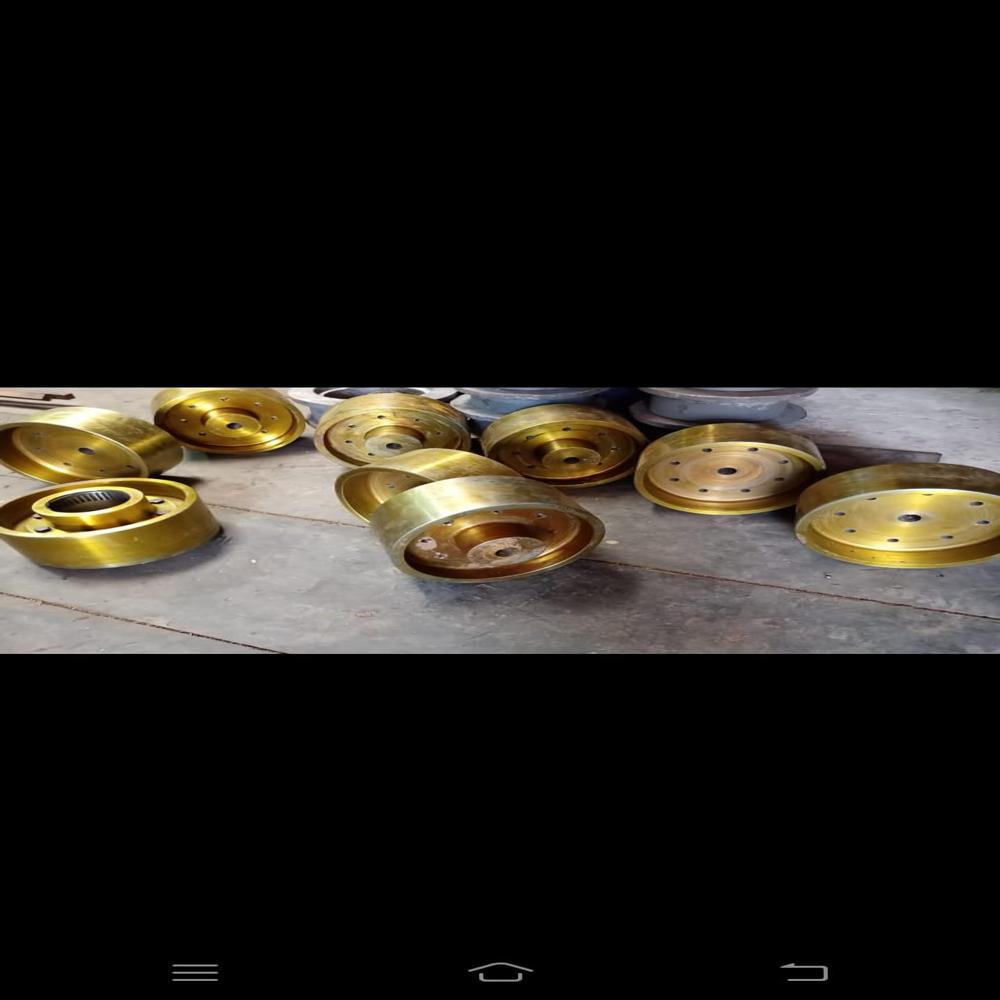

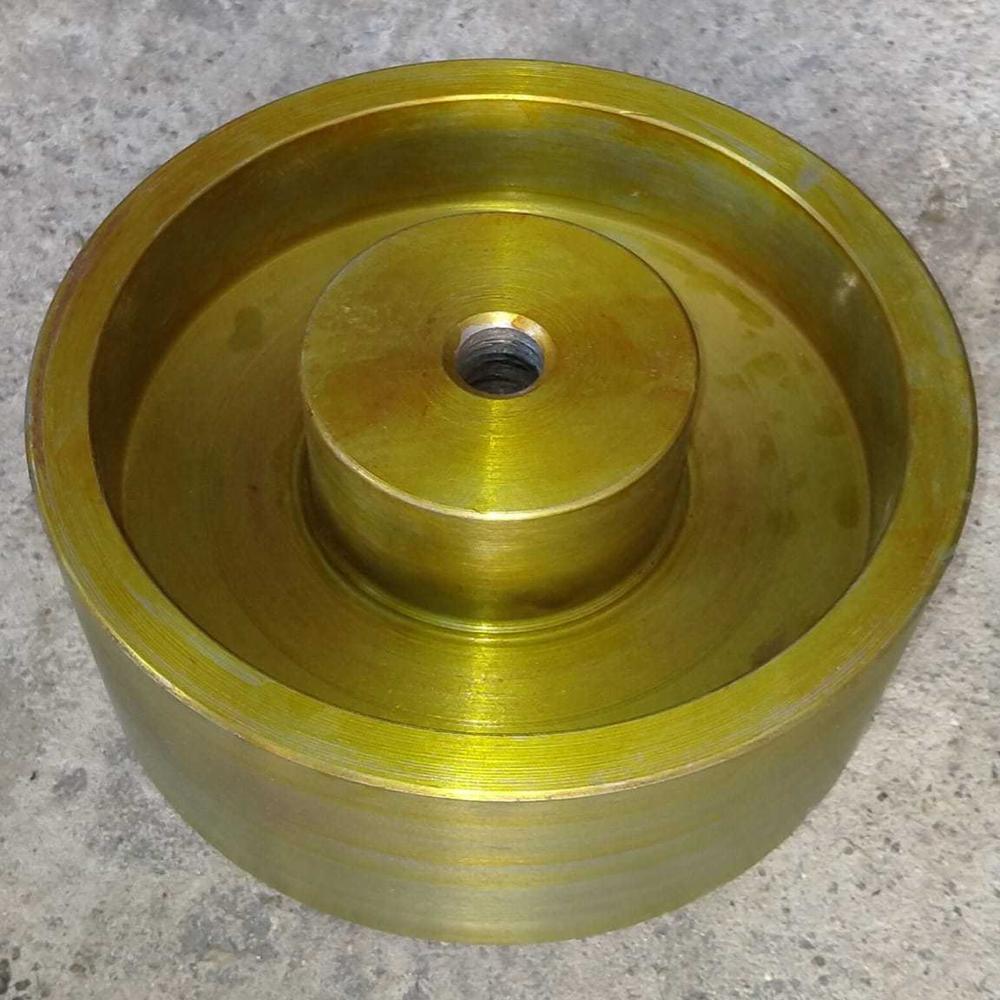

Brake Drum for Lifting Equipment

Brake Drum for Lifting Equipment Specification

Connection
Hub Mount

Sealing
Unsealed

Torque
400 Nm

Head Code
Round

Max. Speed
1450 RPM

Bore
30 mm

Material
Cast Iron

Structure
Solid

Standard
IS 4770

Inner Diameter
300 mm

Outer Diameter
320 mm

Application
Lifting Equipment

Surface Treatment
Paint Coated

Technique
Casting

Shape
Round

Compatibility
Electric Hoists, Cranes, Winches

Hardness
180-220 HB

Maintenance
Low

Corrosion Resistance
High

Number of Grooves
Single or Double

OEM Service
Available

Weight
18 kg

Color
Grey

Brake Drum for Lifting Equipment Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
2 Days

About Brake Drum for Lifting Equipment

Brake Drum for Lifting Equipment Description

The Brake Drum for Lifting Equipment is a high-strength, precision-machined component designed to deliver reliable and efficient braking performance in various lifting and material handling applications. It ensures smooth, controlled, and vibration-free operation, providing maximum safety and stability during lifting operations.

Manufactured from premium-grade cast iron or steel, this brake drum offers excellent heat dissipation, wear resistance, and long service life. It is suitable for use with electro-hydraulic thruster brakes, electromagnetic brakes, and other industrial braking systems.

Each brake drum is accurately balanced and machined to maintain perfect alignment with the brake shoe, minimizing liner wear and ensuring consistent braking torque under continuous operation.

Engineered for Lifting Equipment

Our brake drum seamlessly integrates with electric hoists, cranes, and winches, providing dependable braking and safety. Its high-load capacity and durable cast iron construction make it ideal for heavy-duty industrial applications, ensuring operational stability for a range of lifting tasks.

Reliable and Low-Maintenance

With advanced casting technique and precise machining, this brake drum delivers stability and longevity. The hard, unsealed solid structure, combined with a paint-coated finish, ensures exceptional resistance to abrasion and corrosion, allowing for consistent performance with minimal maintenance over time.

Tailored to Industry Standards

Adhering to IS 4770 specifications, this brake drum guarantees compatibility and safety for various lifting systems. Available in single or double groove options and customizable through OEM services, it meets the unique demands of different industries and operational environments.

FAQs of Brake Drum for Lifting Equipment:

Q: How is the brake drum installed onto lifting equipment?

A: The brake drum features a hub mount connection for straightforward installation onto the shaft of electric hoists, cranes, or winches. Alignment with the equipments hub is required, and standard fitting procedures should be followed. Optional OEM customization is available for specific mounting needs.

Q: What are the main benefits of using this brake drum in lifting applications?

A: This brake drum offers high corrosion resistance, solid cast iron durability, and a paint coated surface for extra protection. It delivers stable performance at speeds up to 1450 RPM and 400 Nm torque, while its low-maintenance design reduces downtime and operating costs, making it ideal for continuous industrial use.

Q: When should the brake drum be replaced or inspected?

A: Periodic inspection is recommended according to your equipments maintenance schedule. Check for wear, grooves, or changes in braking efficiency. Due to its high hardness (180-220 HB) and corrosion resistance, it typically requires infrequent replacement; however, replace immediately if excessive wear is detected.

Q: Where can this brake drum be used effectively?

A: This brake drum is suitable for integration in various lifting equipment across industries, including manufacturing plants, warehouses, shipping yards, and construction sites. It performs reliably on electric hoists, cranes, and winches that require robust and safe braking solutions.

Q: What is the manufacturing process for this brake drum?

A: The brake drum is produced using precision casting techniques, followed by machining to attain accurate dimensions. It is then paint coated for enhanced surface protection and undergoes quality inspection to ensure it meets IS 4770 standards and customer specifications.

Q: How does the single or double groove design affect usage?

A: The groove type determines the compatibility with different brake lining and cable arrangements. Single groove designs are used for basic setups, while double grooves accommodate more complex or heavier lifting requirements, offering greater flexibility in application.

Q: What are the advantages of choosing an OEM service for this brake drum?

A: Opting for OEM service allows customization of size, groove number, or other specifications to perfectly match unique equipment requirements. This ensures seamless integration, improves operational efficiency, and caters to specialized industry demands.
