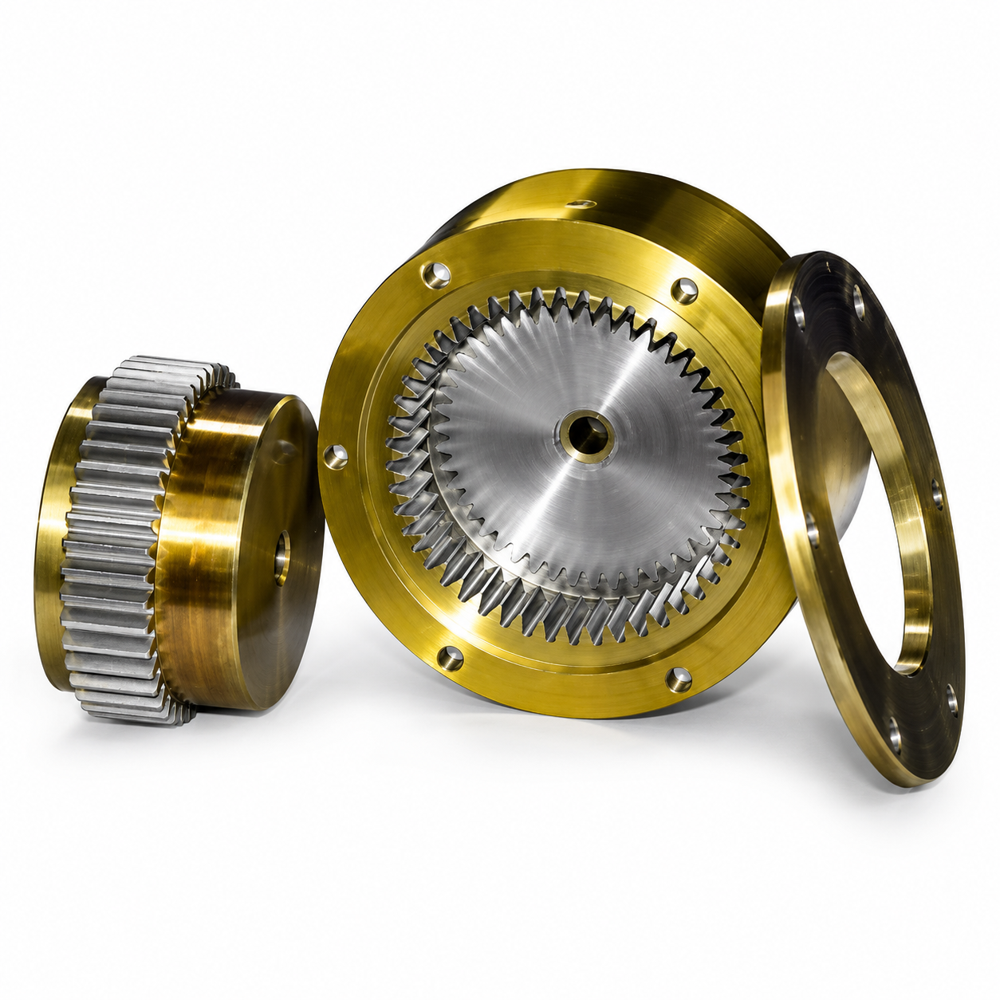

Brake Drum Hub Coupling

Brake Drum Hub Coupling Specification

Bore
Through bore, customizable based on required shaft size.

Torque
20 Nm - 15,000 Nm (depending on size and material).

Head Code
Flanged head.

Connection
Bolted flange coupling.

Max. Speed
Up to 3500 RPM (application-dependent).

Sealing
No integrated sealing; seals may be used externally per application.

Thread
No thread (mounting holes are plain for bolt fitting).

Material
High-grade forged steel, optional phosphor bronze or cast iron.

Structure
Split hub with brake drum profile and internal gear teeth.

Standard
DIN/ISO/ANSI (customizable upon request).

Inner Diameter
Standard range: 30 mm - 250 mm (custom sizes available).

Outer Diameter
Standard range: 100 mm - 500 mm (customizable).

Application
Industrial machinery, transmission systems, conveyors, and drive shafts.

Surface Treatment
Polished with anti-corrosive coating.

Technique
Precision machining, CNC turning, and hobbing.

Shape
Cylindrical with flanged face and toothed internal gear.

Industry Use
Steel Plants, Paper Mills, Sugar Mills, Cement Plants, Power Generation

Mounting Holes
Precision Drilled on Flange

Manufacturing Tolerance
0.01 mm

Alignment Capability
Accommodates Parallel, Angular, and Axial Misalignment

Customization
Available for Various Industrial Applications

Temperature Resistance
-20C to +120C

Durability
High Wear and Fatigue Resistance

Lubrication
Grease Filled or Oil Bath (as required)

Weight
Varies according to Size (Approx. 2 kg - 45 kg)

Color
Metallic Silver and Gold Finish

Brake Drum Hub Coupling About

Experience the famed precision of our Brake Drum Hub Coupling, now available in a sterling Metallic Silver and Gold Finish. With a towering tolerance of 0.01 mm and constructed from high-grade forged steel, this coupling boasts high wear and fatigue resistance. Designed for ephemeral industrial challenges, it excels in heavy-duty use-steel plants, paper, sugar, and cement mills. Accommodating varied misalignment, its split hub and precision-drilled flange guarantee robust connection. Limited stock-seize this exclusive sale before it's gone! Custom sizes available.

Versatile Industrial Coupling: Premium Material & Design

Crafted from renowned forged steel, our Brake Drum Hub Coupling is tailored for durability and performance. Compatible with conveyors, drive shafts, and transmission systems across industries, it features a high-torque capacity and resistance to extreme temperatures. Its precision-machined, flanged head and internal gears enable flexible alignment and dependable operation in steel, power, paper, and cement sectors. The anti-corrosive polished coating and customizable bore sizes further enhance its adaptability and longevity.

Certifications, Delivery & Payment: Secure Industrial Supply

Supplied to global standards-DIN, ISO, and ANSI-our couplings meet rigorous quality certifications. Quick dispatch ensures minimal downtime, while secure shipping methods safeguard each unit. Delivery timeframes are kept short, with immediate availability for common sizes and modest lead times for custom requirements. Payment terms are flexible for convenience. Rely on our streamlined ordering process for consistent, reliable supply and expedited service for urgent industrial needs.

FAQ's of Brake Drum Hub Coupling:

Q: How can the Brake Drum Hub Coupling be customized for specific industrial requirements?

A: The coupling is customizable in bore diameter, length, material (forged steel, phosphor bronze, or cast iron), and mounting hole specifications to align with unique machinery or transmission needs.

Q: What are the primary commercial uses of this coupling?

A: It is widely used in steel plants, paper mills, sugar mills, cement factories, power generation units, and industrial machinery for transmission systems, conveyors, and drive shafts.

Q: Where can I employ these couplings within my operations?

A: These couplings are suitable for installation in heavy-duty industrial environments that require reliable torque transfer, such as conveyor lines, gearboxes, and rotating drum machinery.

Q: How does the Brake Drum Hub Coupling handle misalignment?

A: The design accommodates parallel, angular, and axial misalignment, ensuring smooth operation and reduced wear across connected shafts.

Q: What steps are involved in the purchasing process and delivery?

A: Place an inquiry or order specifying size and features; receive confirmation, followed by secure, quick dispatch and tracked shipping to your facility. Flexible payment options are available.

Q: What are the benefits of the anti-corrosive coating and temperature resistance?

A: The polished anti-corrosive coating prolongs lifespan by preventing rust, while the -20C to +120C temperature resistance ensures reliable operation in diverse environments.
