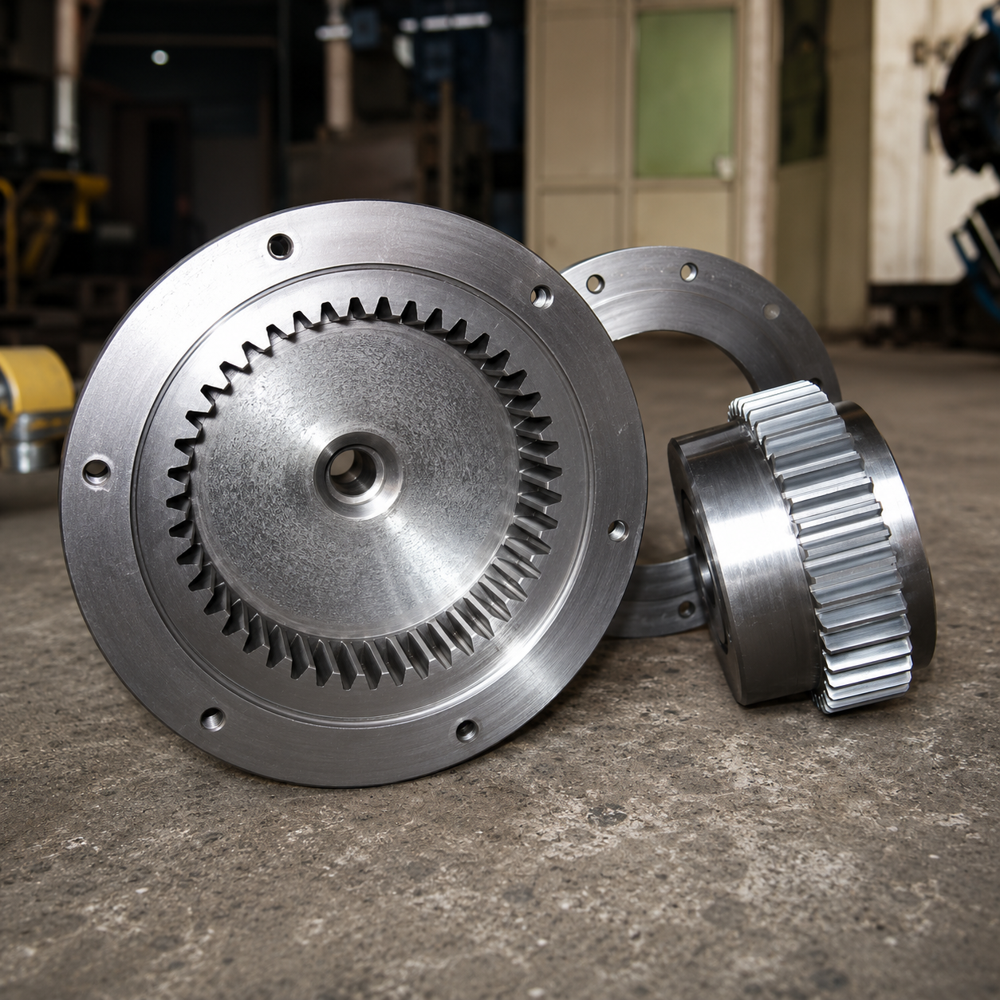

OEM Brake Drum Gear Coupling

OEM Brake Drum Gear Coupling Specification

Torque
Up to 150,000 Nm (based on model and application)

Sealing
Not sealed (open type)

Max. Speed
Up to 3,600 RPM (based on design & size)

Connection
Bolt connection with flange mount

Thread
Not applicable (flange bolted mounting)

Head Code
Standard OEM pattern

Bore
Customized; available in standard and custom sizes

Material
Forged steel / EN8 / EN19 / En31

Structure
Segmented drum with gear teeth and coupling hub

Standard
Conforms to AGMA and ISO standards

Inner Diameter
Range: 30 mm - 250 mm (custom as per request)

Outer Diameter
Range: 100 mm - 600 mm (custom as per request)

Application
Industrial machinery, conveyor systems, power transmission, cranes, hoists, and heavy equipment

Surface Treatment
Precision machined and anti-corrosive coating

Technique
CNC machining and gear hobbing

Shape
Round with geared profile

Lubrication
Grease Packed or Oil Bath

Balancing
Dynamic Balancing Available

Packing
Wooden Box or Export Standard Packing

Misalignment Capability
Angular up to 1.5, Axial up to 5 mm

Coupling Size Range
Standard sizes GCD 101 to GCD 116 (or custom sizes)

Color
Natural Steel/Grey or Painted Finish

Customization
Dimensions, keyway, and bore profiles as per drawing

Number of Teeth
As per customer requirement/drawing

Hardness
Up to 45-60 HRC (Depending on Material and Application)

Corrosion Resistance
Surface coating available on request

Gear Type
External and Internal Spur Gear

Replacement
Direct replacement for major OEM brands

Mounting
Horizontal or Vertical Installation

Delivery
4-6 weeks for standard models

Service Life
Designed for Long Duty Cycle

OEM Brake Drum Gear Coupling About

We, Shruti Engineering, are an appreciated manufacturer, exporter and supplier of high quality Disc Brakes and Industrial Hoists. Offered range of products includes Foot Mounted Brake Motor, Disc Brake and Liner Brake.

Robust Gear Coupling for Industrial Demands

Engineered for heavy-duty usage, our OEM Brake Drum Gear Couplings deliver high performance in power transmission, conveyors, and crane systems. Dynamic balancing and precision machining ensure smooth operation, even at speeds up to 3,600 RPM. Customers benefit from direct OEM replacement compatibility and tailored configurations to suit project-specific requirements.

Customizable Design & Quick Delivery

We offer couplings built to your print, including tooth number, keyway, bore profile, and size range. Fast turnaround of 4-6 weeks (standard models) and premium export packaging ensure your solution arrives ready for integration. A broad selection of coatings and finishes enhances longevity, while open-structure design simplifies inspection and maintenance.

Advanced Material & Processing Techniques

Our couplings are produced from forged steels (EN8, EN19, EN31) and are heat-treated to achieve hardness up to 60 HRC, depending on service needs. Gear hobbing, precision machining, and anti-corrosive coatings guarantee longevity and consistent quality, conforming to leading AGMA and ISO standards.

FAQ's of OEM Brake Drum Gear Coupling:

Q: How do OEM Brake Drum Gear Couplings accommodate misalignment?

A: These couplings allow for angular misalignment up to 1.5 and axial movement up to 5 mm, enabling flexible power transmission despite shaft deflection or movement during operation.

Q: What customization options are available for the gear coupling?

A: Customization includes tooth count, bore size, keyway, coupling dimensions, and profile. Finish options, surface treatments, and packing can also be tailored as per customer drawings and specific application needs.

Q: When should I choose a grease-packed versus oil bath lubrication?

A: Grease-packed lubrication is suitable for most standard industrial uses and simplifies maintenance. Oil bath systems are advisable for high-speed or heavy-duty applications requiring continuous lubrication.

Q: Where can this gear coupling be installed?

A: These couplings are suited for both horizontal and vertical installations and are commonly used in industrial machinery, conveyor systems, cranes, hoists, and similar power transmission setups.

Q: What is the typical process for ordering and delivery?

A: Once customer requirements or drawings are submitted, production begins on approval. Standard models are delivered within 4-6 weeks, with export-grade wooden packaging ensuring protection during transit.

Q: What are the main benefits of using this coupling design?

A: The advantages include high torque capacity, direct OEM replacement fit, adaptable misalignment capability, customizable features, extended service life, and optional corrosion-resistant coatings for challenging environments.

Q: How is product longevity ensured for demanding applications?

A: Longevity is secured through dynamic balancing, use of high-strength forged steel, precision gear hobbing, heat treatment, and optional anti-corrosive coatings-all engineered to withstand rigorous, long-term industrial operation.
