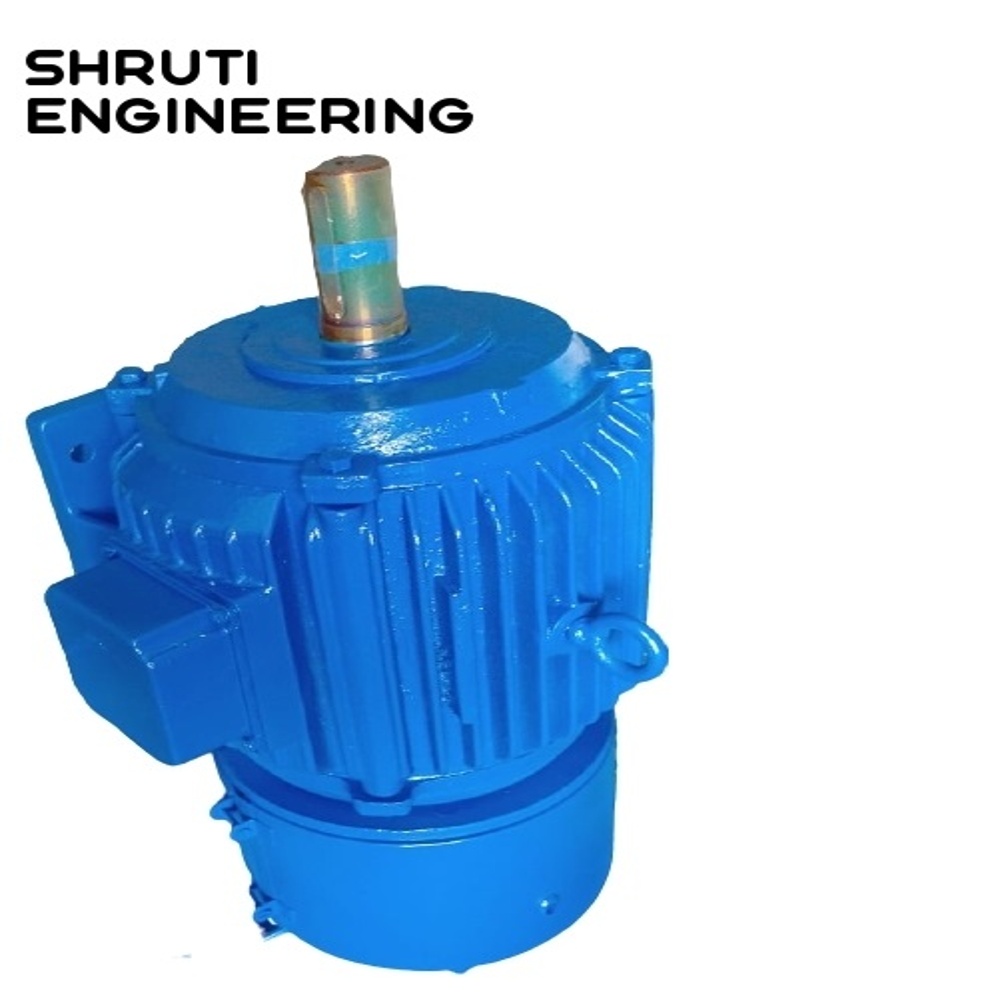

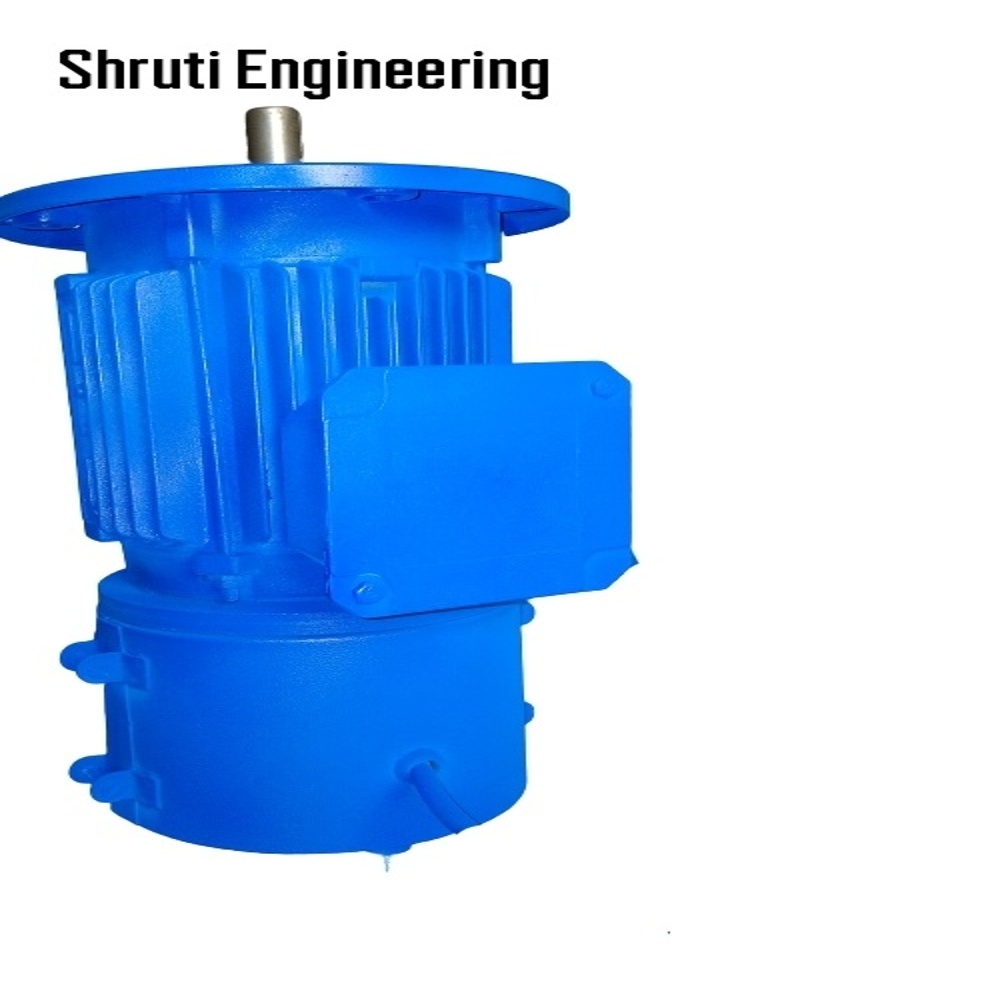

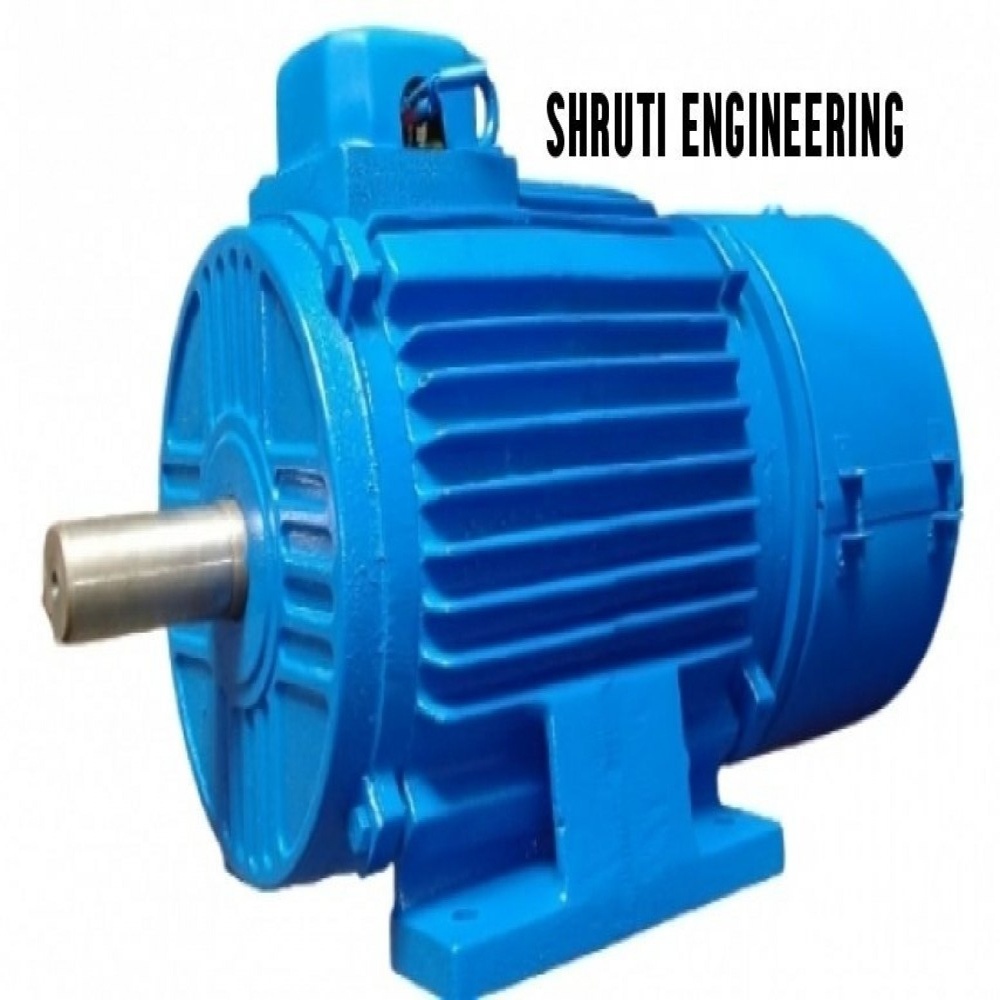

Brake Motor for Conveyor

Brake Motor for Conveyor Specification

Horse Power
0.5 HP to 30 HP

Current Type
AC

Sealed Type
TEFC

Motor Type
AC Induction Motor with Electromagnetic Brake

Voltage
415 V

Features
Electromagnetic fail-safe brake, high efficiency, long life, maintenance free, suitable for conveyors, compact design

Rated Voltage
415 V

Cooling Method
Fan Cooled

Ambient Temperature
-10C to +50C

Torque
Standard/Heavy Duty as per requirement

Rated Frequency
50 Hz

Efficacy
High Efficiency (IE2/IE3 as required)

Poles Number
2/4/6 Pole

Power Rating
0.37 kW to 22 kW

Bearing Type
Deep Groove Ball Bearing

Noise Level
<70 dB

Standard
Conforms to IS / IEC Standards

Starting Type
Direct-On-Line (DOL), Star-Delta

Product Type
Brake Motor for Conveyor

Output Power
0.37 kW to 22 kW (as per model)

Frequency (MHz)
50 Hz

Protect Feature
Totally Enclosed Fan Cooled (TEFC), Class F insulation

Phase
Three Phase

Speed
1440/2880 RPM

Power
0.5 HP to 30 HP

Color
Blue

Dimension (L*W*H)
As per model/customized

Weight
Vary as per model (approx. 10kg-120kg)

Shaft Diameter
As per IEC / model specification

Mounting Type
Foot / Flange / Face Mounting

IP Rating
IP55

Brake Type
Electromagnetic AC Fail Safe Brake

Application
Conveyor systems, hoists, cranes, material handling equipment

Maximum Ambient Humidity
95%

Starting Current
6-7 times rated current

Insulation Class
Class F/H

Thermal Protection
Yes, PTC/PT100 on request

Direction of Rotation
Both directions possible

Material
High-grade cast iron body, copper winding

Brake Coil Voltage
190V/220V DC (rectified from motor terminal)

Connection
Terminal box at top

Duty Type
S1 (Continuous)

About Brake Motor for Conveyor

The Popular Brake Motor for Conveyor-renowned for its invincible design and splendid performance-is specially crafted for top-tier conveyor systems, hoists, cranes, and material handling equipment. This valuable solution features an Electromagnetic AC Fail Safe Brake, offering rapid, reliable stopping power even during sudden outages. Built from high-grade cast iron with copper winding, it ensures long service life. With high efficiency (IE2/IE3), dual rotation, robust thermal protection, and customizable specifications, this brake motor stands unrivaled for both standard and heavy-duty demands across diverse environments.

Highly Functional Brake Motor for Conveyor-Superior Features and Applications

This splendid brake motor is used in conveyor systems, cranes, hoists, and other industrial material handling solutions. Crafted for reliability, it provides high efficiency (IE2/IE3) and features a maintenance-free electromagnetic fail-safe brake. Extra features like dual rotation, terminal box at the top, and thermal protection (PTC/PT100 on request) ensure adaptability and safety. Designed for continuous duty (S1), these motors promise valuable longevity and versatility for rigorous industrial environments.

Order Completion and Shipping Details for Brake Motors

All brake motors are exported and delivered through reputable FOB ports, ensuring secure and timely shipped goods. Our main export markets include Asia, Middle East, Africa, Europe, and the Americas, along with strong distribution in India's domestic market. Customers experience seamless order completion, efficient freight handling, and comprehensive logistics for each dispatch. Freight charges and delivery timelines are transparently communicated, guaranteeing reliable service from order placement to the receipt of consignments.

FAQ's of Brake Motor for Conveyor:

Q: How does the electromagnetic brake enhance the safety of conveyor motors?

A: The electromagnetic AC fail safe brake instantly engages in the event of power loss, providing secure and reliable stopping for conveyor systems. This feature ensures enhanced safety for both operators and materials during operation and unexpected stoppages.

Q: What applications are ideal for the Brake Motor for Conveyor?

A: This brake motor is ideal for use in conveyor systems, hoists, cranes, and a variety of material handling equipment where reliable stopping and high efficiency are critical requirements.

Q: Where can the Brake Motor for Conveyor be installed?

A: The motor supports both foot, flange, and face mounting, making it adaptable to diverse installations in industrial, warehouse, and manufacturing settings.

Q: What is the process for placing a custom order for these brake motors?

A: Customers can specify their requirements such as power rating, mounting type, shaft diameter, and additional features like thermal protection at the time of order. Our team then ensures order completion, assembly, and shipping from the nearest FOB port.

Q: What benefits do users gain from the high insulation and enclosure standards?

A: With Class F/H insulation and IP55 (TEFC) enclosure, the motor is well-protected against dust, moisture, and thermal stress, contributing to a longer operational life and reduced maintenance needs.

Q: How does the brake motor maintain high performance in demanding environments?

A: Thanks to its high efficiency, sturdy cast iron body, copper winding, and thermal protection, the brake motor delivers reliable, maintenance-free performance even under heavy-duty or continuous use scenarios.
