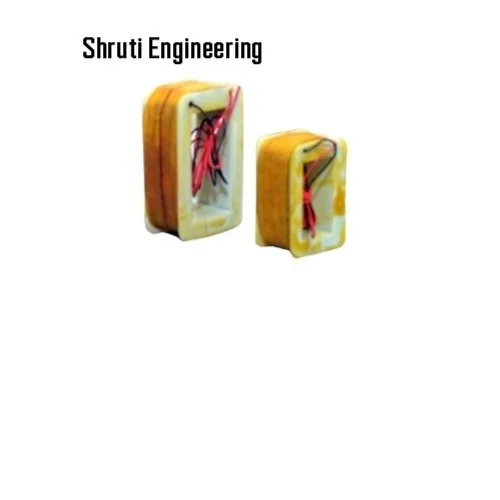

Brake Suspension Coils

Brake Suspension Coils Specification

Usage & Applications
Brake systems, Elevators, Cranes, Industrial Machinery

Part Type
Coil/Solenoid for Brake Suspension

Features
High durability, Heat resistance, Superior winding finish

Noise Level
Low noise operation

Mounting Type
Chassis/Bracket Mountable

Brake Type
Electromagnetic Brake

Size
Custom/As required

Material
Copper Winding with Insulating Material

Pattern Material
Fiber/Resin-based Insulation

Surface Finish
Insulated/Polished

Standard
OEM/IS Standard

Frequency
50 Hz/60 Hz

Insulation Class
Class F/H

Shape
Rectangular

Color
Yellow insulation, Black wires

Weight
Approx. 0.5-2 kg (varies as per size)

Lead Type
Flexible wire leads for easy connection

Current Capacity
Up to 10A

Coil Wire Gauge
Standard winding, as per application

Working Temperature
-20C to +120C

Voltage Rating
24V/48V/110V/220V (as required)

Brake Suspension Coils About

We, Shruti Engineering, are an appreciated manufacturer, exporter and supplier of high quality Disc Brakes and Industrial Hoists. Offered range of products includes Foot Mounted Brake Motor, Disc Brake and Liner Brake.

Engineered for Industrial Excellence

Designed for brake systems across elevators, industrial machinery, and cranes, our coils offer superior heat resistance, low noise function, and durable copper windings. Custom sizes and voltage ratings provide flexibility to fit your precise application while meeting OEM/IS standards.

Outstanding Heat and Electrical Resilience

With an insulation class of F/H and working temperature range from -20C to +120C, these coils ensure dependable operation under extreme conditions. Their current capacity reaches up to 10A, supporting heavy-duty performance in continuous and intermittent braking scenarios.

Customizable and Easy to Install

Every unit is built with flexible wire leads, facilitating hassle-free connection and mounting. Standard winding patterns and polished insulation guarantee consistent quality and long-lasting operation. The coils' tailored sizing and mounting options fit a broad array of equipment layouts.

FAQ's of Brake Suspension Coils:

Q: How do the brake suspension coils ensure safe and efficient operation?

A: Our brake suspension coils are manufactured with Class F/H insulation and robust copper windings, delivering reliability and heat resistance in high-demand environments. The careful selection of insulation materials and precise winding techniques minimize risks and support consistent brake performance, ensuring safety and efficiency in operation.

Q: What advantages does the yellow insulation and black wiring provide?

A: The yellow insulation allows for easy coil identification during installation and maintenance, while the black wires help distinguish power and connection leads. This color coding reduces mistakes, streamlines troubleshooting, and enhances workplace safety.

Q: When should I select a custom coil size or voltage rating?

A: Custom coil sizes or voltage ratings are ideal when your equipment or application has unique spatial constraints or specific electrical requirements not covered by standard models. Our engineering team can manufacture coils tailored to fit your installation and operational needs perfectly.

Q: Where are these brake suspension coils most commonly used?

A: These coils are widely deployed in electromagnetic brake systems for elevators, cranes, and various types of industrial machinery. Their durability and heat resistance make them especially suitable for critical safety and control applications in manufacturing and material handling sectors.

Q: What is the installation process for these coils?

A: Installers benefit from the flexible wire leads and chassis/bracket mountable design. The coil can be positioned according to your mechanical layout, connected via the insulated leads, and secured with mounting hardware to ensure proper alignment and electrical integration.

Q: How do the coils perform under varying temperature conditions?

A: Engineered to operate between -20C and +120C, the coils maintain stable performance in both high heat and cold environments. The insulation and coil materials are selected to resist thermal stress, ensuring long service life even under fluctuating temperatures.

Q: What are the key benefits of choosing these coils for my braking system?

A: Customers gain durable, heat-resistant, and low-noise components with a superior winding finish. Tailored sizing, easy installation, and compliance with OEM/IS standards add further value, ensuring performance and compatibility in a wide range of brake suspension applications.
