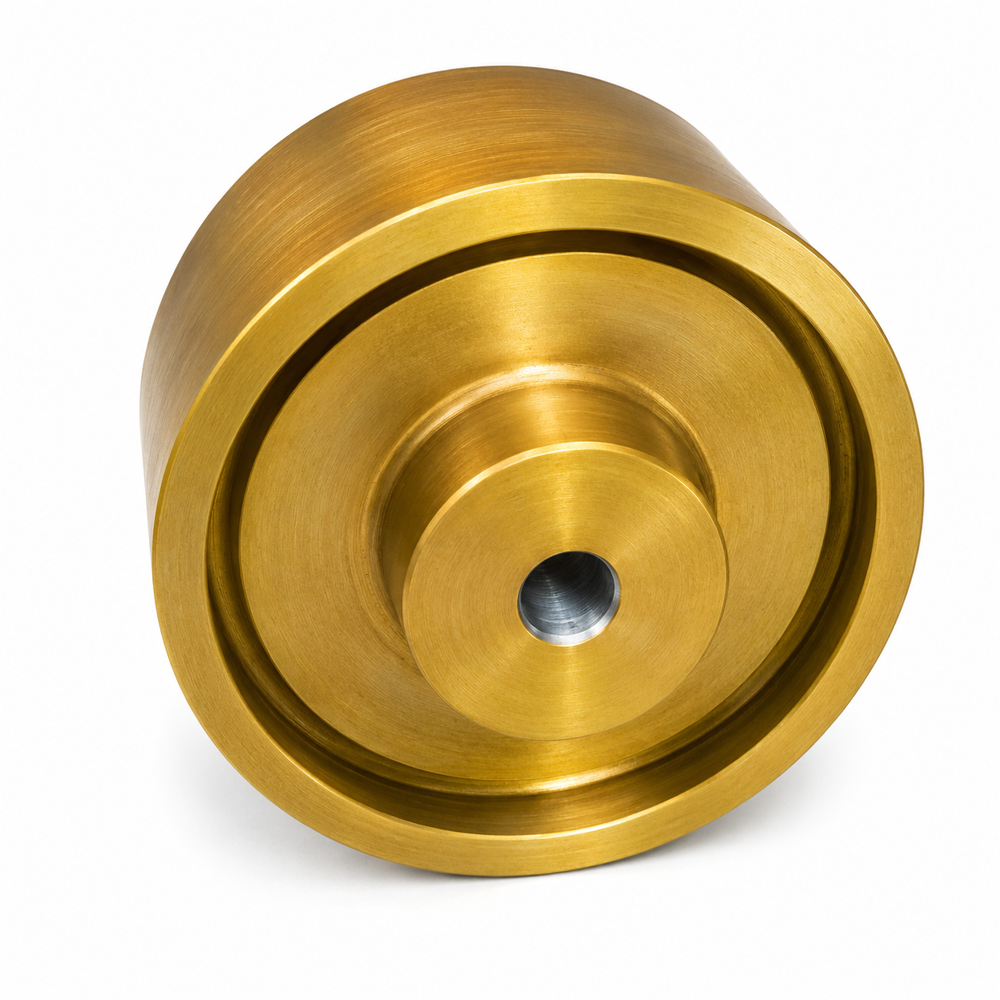

Crane Brake Drum Gear Coupling

Crane Brake Drum Gear Coupling Specification

Head Code
Flange

Bore
Customizable as per shaft size requirements

Torque
Up to 50,000 Nm depending on size

Thread
Non-threaded (Bolt holes for mounting).

Sealing
None required or via optional dust covers

Max. Speed
2000 rpm

Connection
Gear teeth meshing, bolted flange

Material
Alloy steel, cast steel, forged steel

Structure
Gear coupling with brake drum integration

Standard
IS 2693 or as per client specification

Inner Diameter
Custom (commonly 50 mm - 300 mm)

Outer Diameter
Custom (commonly 150 mm - 500 mm)

Application
Crane machinery, lifting equipment, overhead cranes, EOT cranes, hoisting systems

Surface Treatment
Polished, anti-rust coating

Technique
Machined

Shape
Cylindrical with flanged face

OEM Service
Available as per customer design

Application Environment
Indoor & outdoor, industrial settings

Coupling Type
Flexible Gear Coupling integrated with Brake Drum

Finish
Precision ground & honed

Hardness
Surface hardened to 50-55 HRC

Teeth Profile
Involute straight cut gears

Color
Metallic (natural metal/brass finish)

Compatibility
Compatible with most EOT/HOT cranes

Flange Holes
6 standard mounting holes

Heat Treatment
Case carburized and tempered

Resistant Features
Corrosion and wear resistant

Maintenance
Minimal, periodic lubrication required

Crane Brake Drum Gear Coupling About

Industrial Gear Brake Drum Coupling

An Industrial Gear Brake Drum Coupling is a heavy-duty power transmission device that combines a gear-type flexible coupling with an integral brake drum. It is specifically designed for industrial applications where torque transmission and controlled braking are required within the same compact unit.

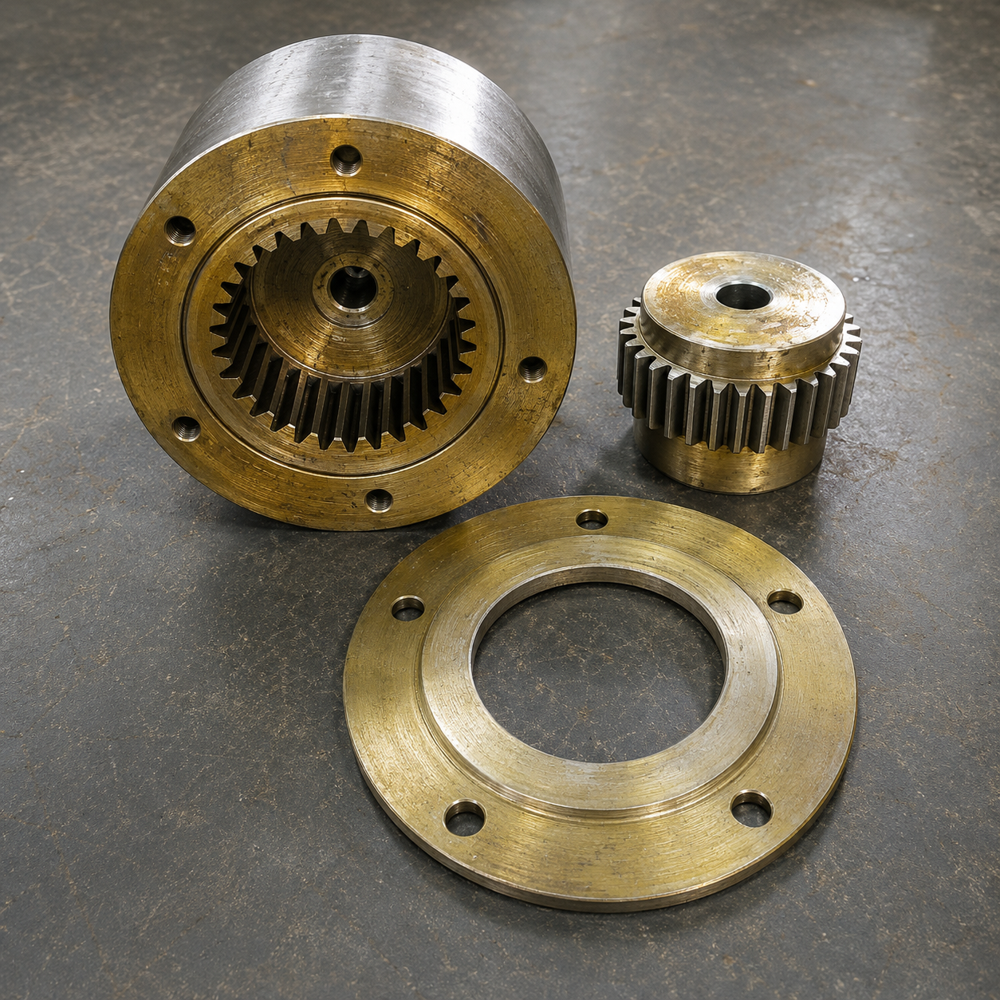

The coupling consists of two hubs with external gear teeth, a sleeve or casing with internal teeth, and an integrated brake drum. The gear mesh allows for smooth power transmission while compensating for angular, parallel, and axial shaft misalignments. The brake drum provides a reliable surface for mounting brake shoes or bands, enabling efficient braking, holding, or speed control.

Salient Features:

High torque transmission capacity
Integral brake drum for safe braking operations
Compensates for axial, angular, and parallel misalignment
Rugged cast iron / steel construction for industrial use
Suitable for reversing and heavy-duty applications
Easy installation and low maintenance design

Engineered for Performance and Durability

Our Crane Brake Drum Gear Couplings are engineered using premium alloy, cast, or forged steel, ensuring robustness and longevity. The surface is case carburized, tempered, and hardened for superior performance under demanding industrial environments. Precision finishing with grinding, honing, and anti-rust coatings delivers long-lasting protection and reliability, making these couplings suitable for continuous usage in EOT, HOT, and overhead cranes.

Flexible Integration with Customizable Specifications

Available in a range of outer and inner diameters (commonly 150-500 mm OD, 50-300 mm ID) and customizable bore sizes, the coupling is designed for seamless integration with crane machinery. The flanged face with six standard mounting holes and gear teeth meshing ensures strong, secure connections. OEM services are available for client-specific requirements, ensuring compatibility with most crane setups.

Minimal Maintenance - Maximum Uptime

Requiring only periodic lubrication, this coupling-drums system keeps downtime to a minimum for crane machinery operation. Its corrosion and wear-resistant surfaces reduce the frequency and extent of maintenance tasks, promoting cost efficiency and smoother operations. Optional dust covers can be added for extra protection in harsh environments.

FAQ's of Crane Brake Drum Gear Coupling:

Q: How does the brake drum gear coupling enhance crane safety and efficiency?

A: This coupling integrates a precision brake drum with a flexible gear coupling, offering secure, stable torque transmission up to 50,000 Nm. Surface-hardened gears and precision finishes ensure reliable operation under heavy loads, improving crane safety and operational efficiency.

Q: What materials and surface treatments are used in this coupling?

A: The coupling is constructed from high-quality alloy steel, cast steel, or forged steel. It undergoes case carburizing and tempering to achieve a surface hardness of 50-55 HRC. Each part is precision ground, honed, and finished with a polished, anti-rust coating for maximum wear and corrosion resistance.

Q: When is maintenance required for this gear coupling?

A: Routine maintenance involves minimal effort, primarily periodic lubrication at predefined intervals depending on usage intensity. The design and surface coatings extend service intervals, reducing the need for frequent interventions.

Q: Where can this coupling be used?

A: It is suitable for both indoor and outdoor industrial settings, including EOT cranes, HOT cranes, overhead lifting equipment, and hoisting systems. Its corrosion resistance and robust construction allow for use in a variety of harsh environments.

Q: How can the coupling be customized to fit specific requirements?

A: OEM services are available, enabling customization of dimensions such as outer and inner diameter, bore size, and other connection features. Clients can specify requirements for compatibility with different crane models or operational conditions.

Q: What is the installation process for this coupling?

A: Installation involves aligning the gears, securing the flanged face using the six standard mounting holes with bolts, and ensuring the proper engagement of gear teeth. The flanged design simplifies mounting and maintenance.

Q: What are the main benefits of choosing this coupling for crane operations?

A: Key advantages include high torque capacity, minimal maintenance needs, superior resistance to corrosion and wear, and compatibility with most crane machinery. Customization options and robust engineering guarantee performance, longevity, and reliable service in demanding industrial applications.
