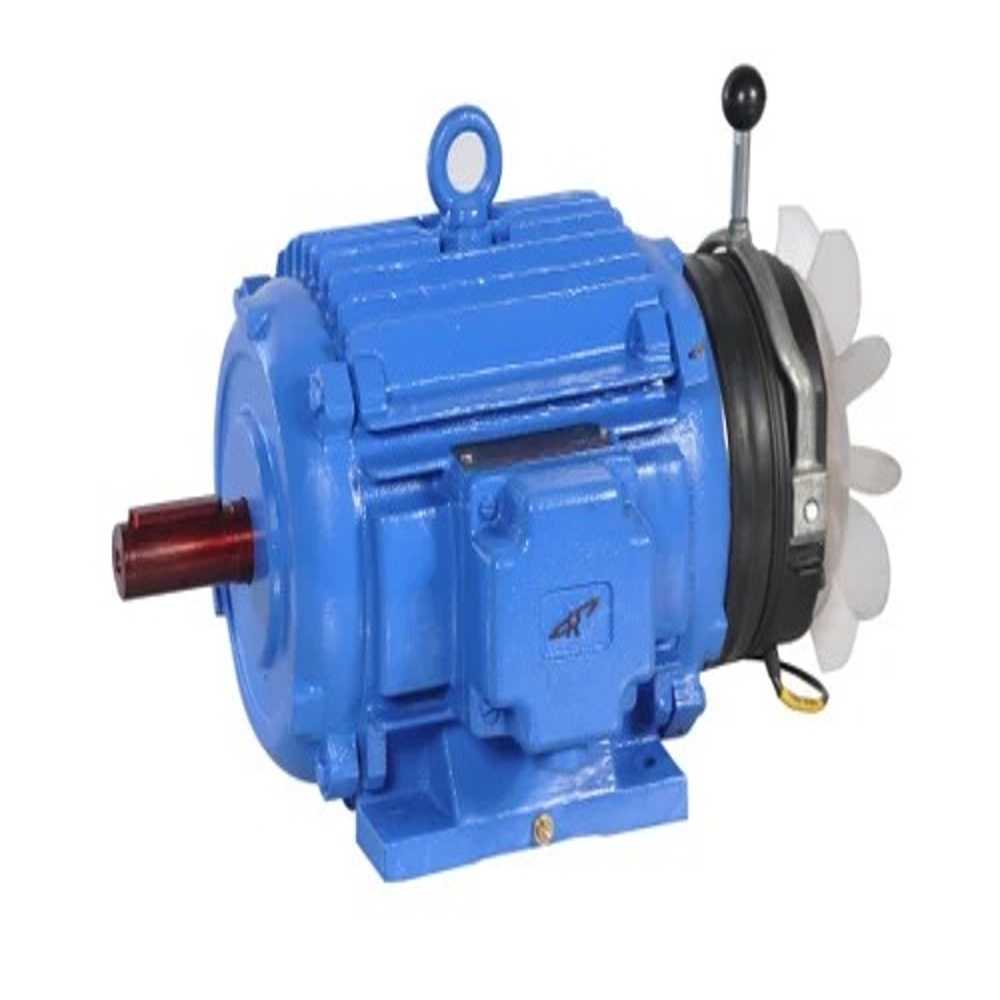

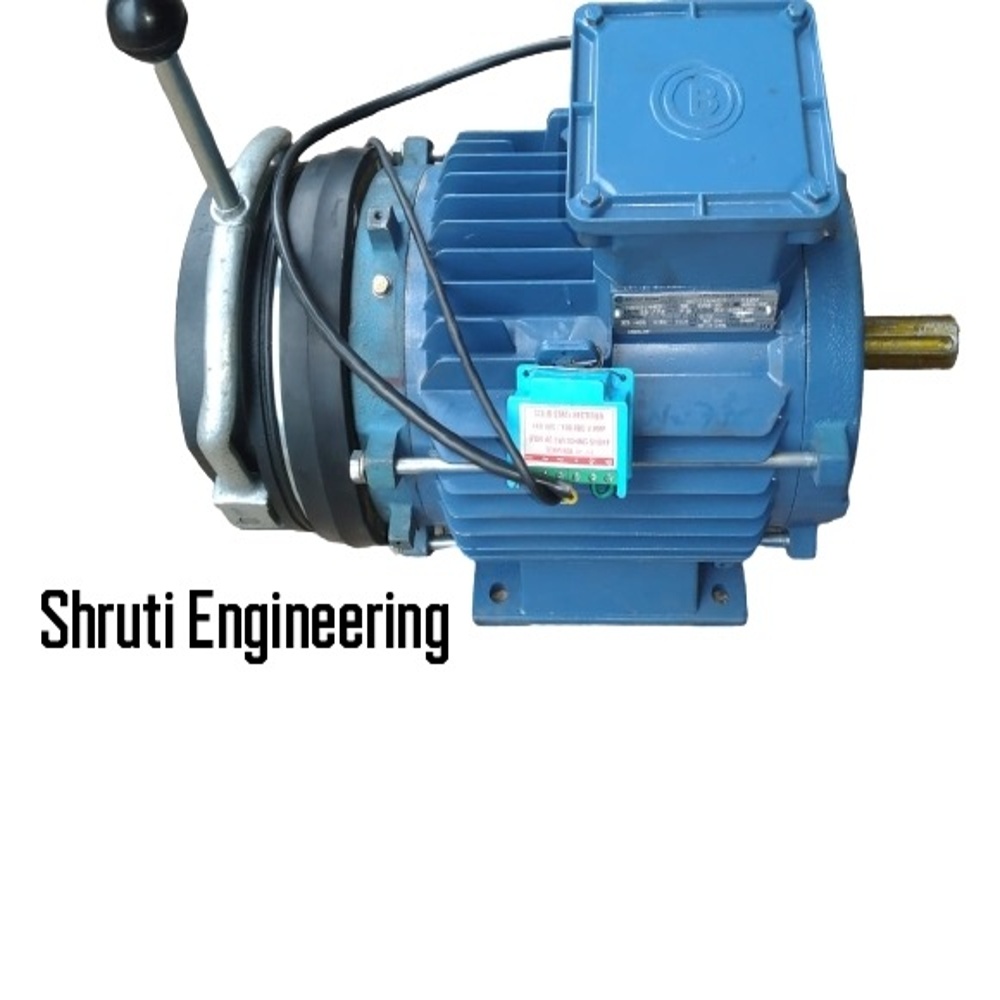

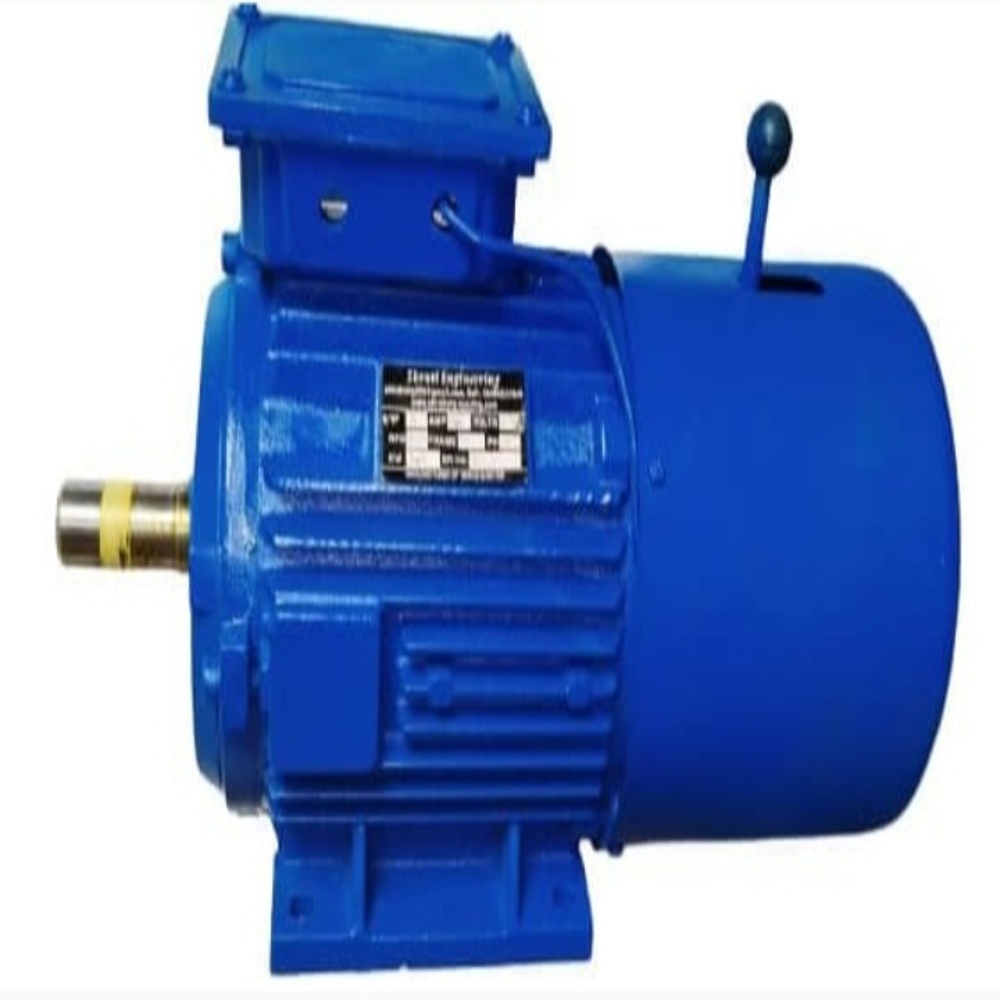

DC Brake Induction Motor

DC Brake Induction Motor Specification

Motor Type
Squirrel Cage Induction Motor with DC Brake

Rated Frequency
50 Hz

Starting Type
Direct On Line (DOL)

Torque
High starting torque

Efficacy
High Efficiency

Rated Voltage
415 V

Horse Power
0.25 HP to 20 HP

Voltage
415 V

Pressure
Standard atmospheric

Power Rating
0.18 kW to 15 kW

Poles Number
2, 4, 6, 8 Poles

Current Type
AC

Noise Level
Low

Features
Robust construction, Reliable braking, Low maintenance

Standard
IS 325

Bearing Type
Ball / Roller Bearing

Sealed Type
TEFC

Cooling Method
Fan Cooled

Ambient Temperature
Up to 45C

Product Type
DC Brake Induction Motor

Output Power
0.18 kW to 15 kW

Frequency (MHz)
50 Hz

Protect Feature
Totally Enclosed Fan Cooled (TEFC)

Phase
Three Phase

Speed
1440 RPM, 960 RPM, 2880 RPM

Power
0.25 HP to 20 HP

Color
Blue

Dimension (L*W*H)
Custom as per requirement

Weight
Varies as per model

Shaft Diameter
Standard as per model

Mounting Type
Foot / Flange Mounted

IP Rating
IP55

Insulation Class
F class

Enclosure
Totally Enclosed

Frame Size
63 to 180M

Application
Used for cranes, hoists, lifts, conveyors, and material handling equipment

Brake Voltage
190V DC / 220V DC

Duty Type
S1 (Continuous Duty)

Rotation
CW/CCW (Both Directions Supported)

About DC Brake Induction Motor

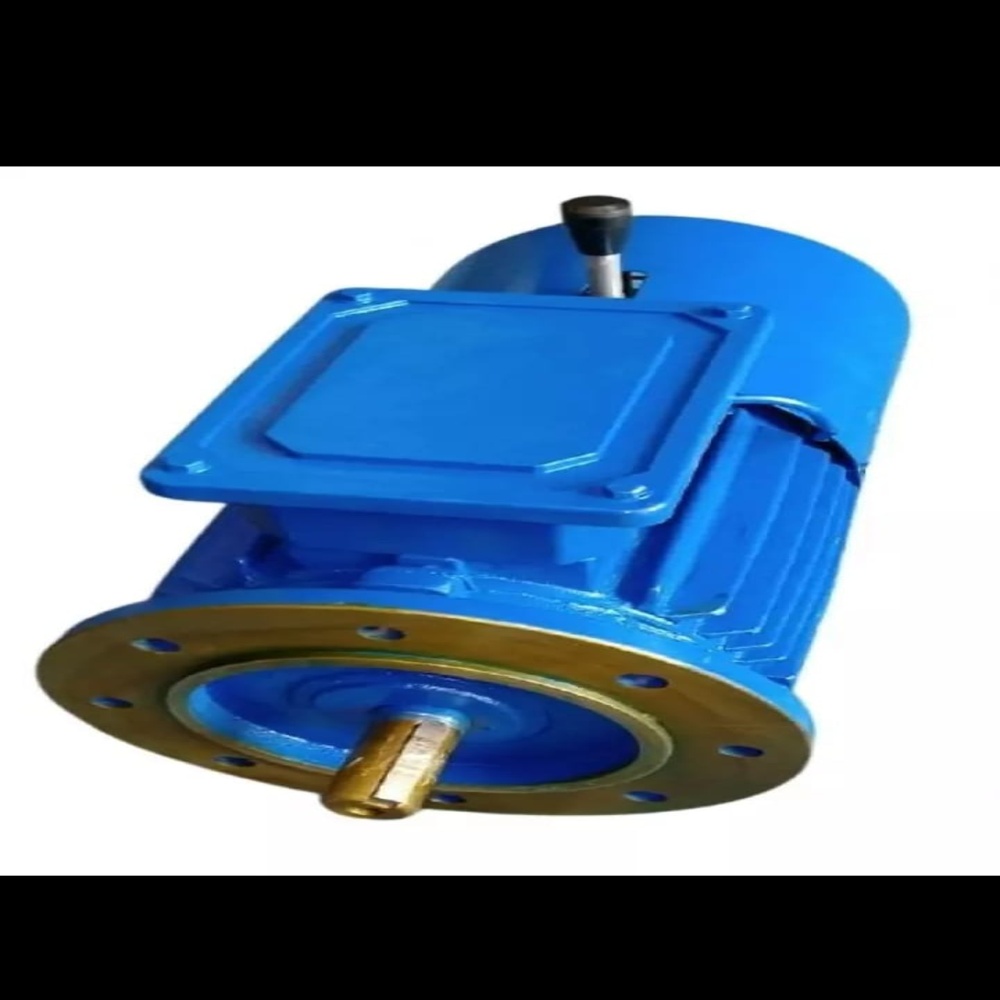

Heavy Duty DC Brake Motor Description

A Heavy Duty DC Brake Motor is specially designed for demanding industrial applications where high torque, robust performance, and reliable braking are essential. Built with a sturdy DC motor and an integrated fail-safe brake, it provides smooth operation, instant stopping, and maximum safety under heavy load conditions.

Engineered for continuous duty and frequent start-stop cycles, these motors deliver excellent thermal capacity, long service life, and consistent performance in tough working environments. Their strong construction and dependable braking make them an ideal choice for heavy-duty lifting and material handling equipment.

Key Features:

High torque output for heavy-duty applications
Fail-safe DC brake for instant and secure stopping
Rugged construction with superior durability
Suitable for continuous duty and frequent reversing
Low maintenance with smooth and vibration-free performance
Available in multiple mounting options

Reliable Braking Performance

Equipped with a high-quality DC brake operating at 190V or 220V DC, this induction motor ensures rapid and reliable stopping power, critical for safety in material handling applications. The braking system is engineered for durability and consistent performance, reducing downtime and enhancing operational safety.

Versatile Application Range

Suited for a variety of industrial environments, this motor is designed to power equipment such as cranes, hoists, lifts, and conveyors. With multiple power and frame size options, as well as CW/CCW rotation and customizable mounting, it meets diverse operational requirements for continuous, efficient service.

Durable and Efficient Design

Constructed to IS 325 standards, the motor features Class F insulation, high starting torque, and a totally enclosed fan-cooled (TEFC) housing with an IP55 rating. These features ensure reliability, long service life, and resistance to dust and moisture. Low noise and maintenance requirements make it suitable for demanding, continuous-duty environments.

FAQ's of DC Brake Induction Motor:

Q: How does the DC brake enhance the safety of this induction motor?

A: The integrated DC brake, operating at either 190V or 220V DC, ensures rapid and secure stopping of rotating machinery, which is essential for safety in applications such as cranes, hoists, and lifts. This feature minimizes potential accidents by providing reliable braking even under heavy loads.

Q: What are the typical applications for this DC brake induction motor?

A: This motor is primarily used in material handling equipment including cranes, conveyor systems, lifts, and hoists, where precise stopping and starting control is necessary. Its robust design and reliable braking make it ideal for continuous industrial operation.

Q: When should a user choose a Totally Enclosed Fan Cooled (TEFC) motor with an IP55 rating?

A: A TEFC motor with IP55 protection is chosen when the motor needs to operate in dusty, humid, or harsh environments. The enclosure prevents the ingress of dust and water, ensuring long service life and reliable operation even under challenging industrial conditions.

Q: Where can this induction motor be installed, and what mounting options are available?

A: The motor is suitable for installation in industrial settings, such as factories or warehouses, where cranes, conveyors, or lifts are in use. It offers flexibility in mounting with both foot and flange options that can be tailored to specific installation requirements.

Q: What benefits does Class F insulation offer for this motor?

A: Class F insulation allows the motor to withstand higher operating temperatures, up to 155C, enhancing its ability to perform reliably in continuous-duty applications (S1). This insulation class extends motor life and minimizes the risk of thermal damage, especially in demanding operations.

Q: How does the high starting torque and direct-on-line (DOL) starting type improve motor performance?

A: High starting torque ensures smooth and efficient startup under load, which is essential for applications like lifting or moving heavy materials. Direct-on-line (DOL) starting provides immediate full-voltage power, enabling the motor to start quickly and handle demanding operations without delay.
