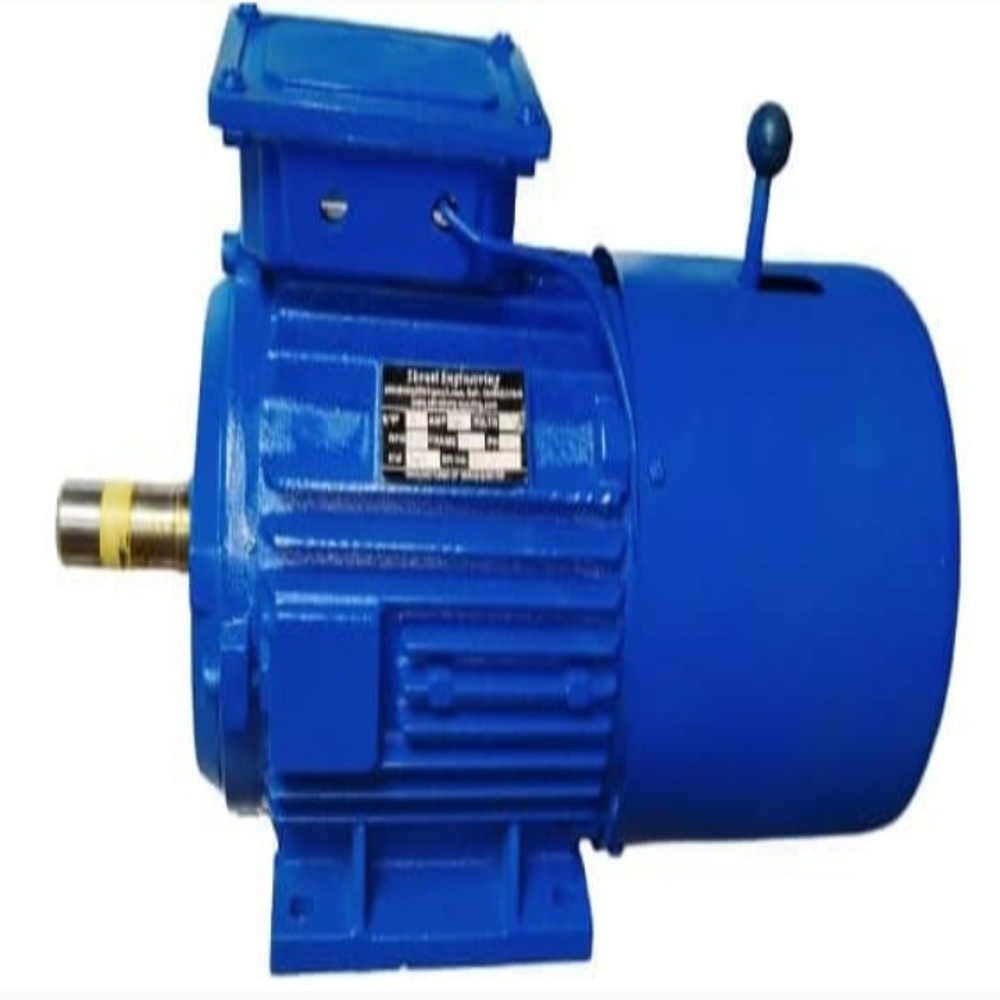

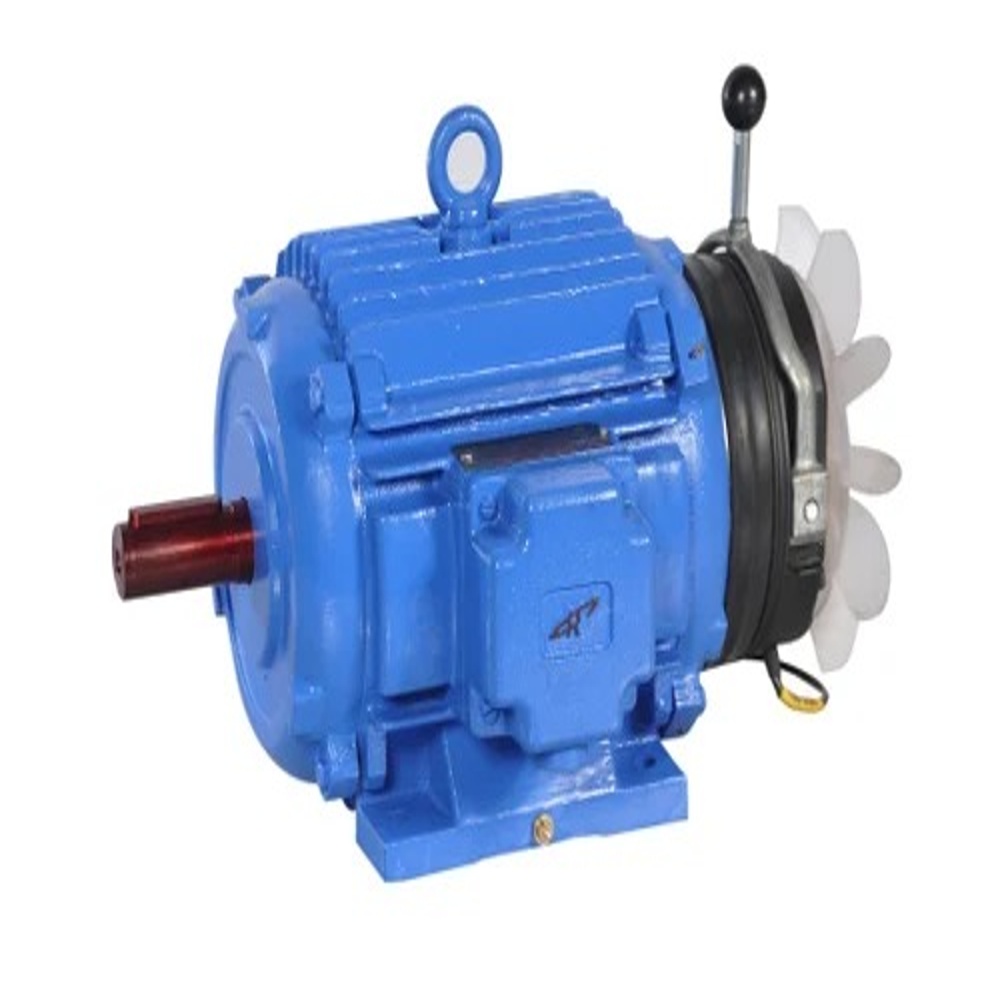

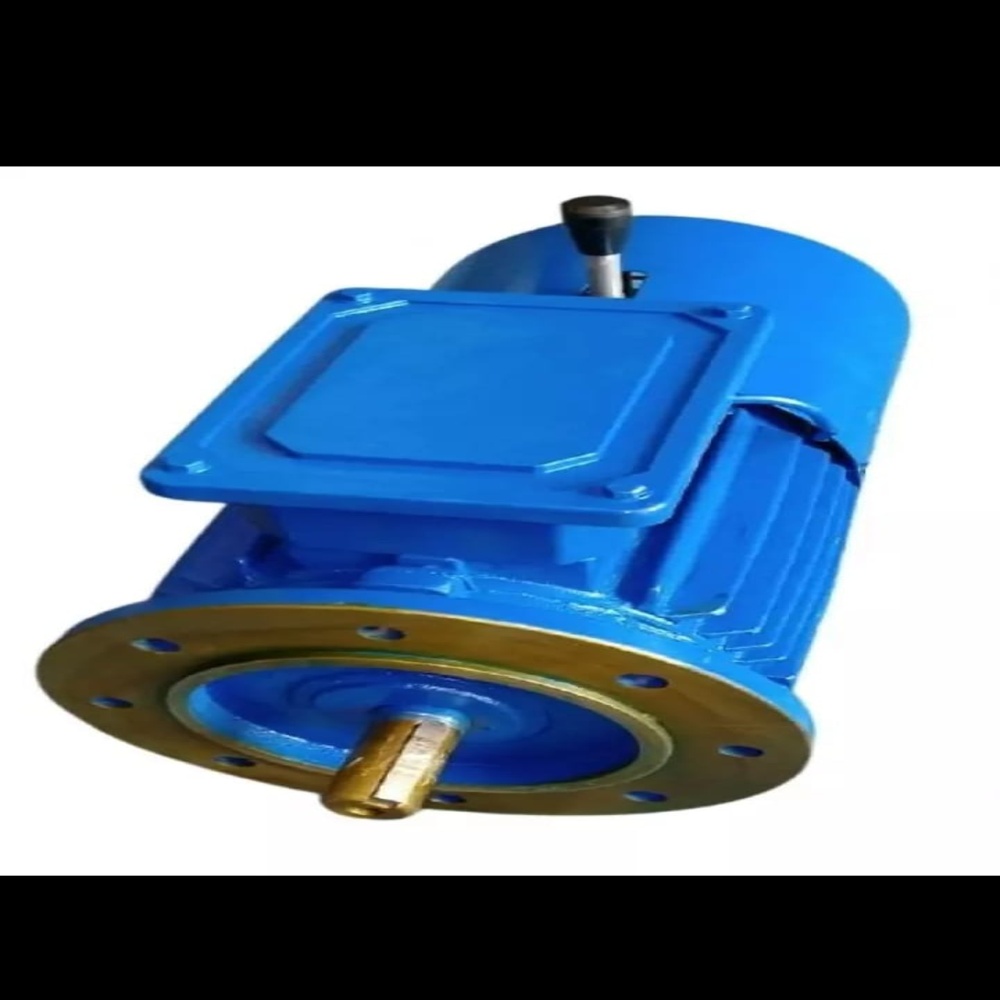

DC Disc Brake Motor

DC Disc Brake Motor Specification

Cooling Method
Fan Cooled

Pressure
Ambient

Rated Frequency
50 Hz

Features
Quick Stopping, Reliable Operation, Low Maintenance

Bearing Type
Deep Groove Ball Bearing

Current Type
AC

Efficacy
High Efficiency

Power Rating
0.37 kW - 22 kW

Torque
High Starting Torque

Motor Type
AC Induction Motor with DC Disc Brake

Sealed Type
Totally Enclosed Fan Cooled (TEFC)

Voltage
415 V AC

Starting Type
Direct On Line (DOL)

Poles Number
2 Pole / 4 Pole

Noise Level
Low Noise

Standard
IS 325 / IEC 60034

Ambient Temperature
-20C to +50C

Rated Voltage
415 V

Horse Power
0.5 HP to 30 HP

Product Type
DC Disc Brake Motor

Output Power
0.37 kW - 22 kW

Frequency (MHz)
50 Hz

Protect Feature
IP55 Protection

Phase
Three Phase

Speed
1440 RPM / 2880 RPM

Power
0.5 HP to 30 HP

Color
Blue

Dimension (L*W*H)
Customized as per model

Weight
Varies with model

Shaft Diameter
Customized as per requirement

Mounting Type
Foot Mounted

IP Rating
IP55

Application
Cranes, Hoists, Elevators, Conveyors, and Automations

Insulation Class
Class F

Frame Size
71 to 200 mm

Duty Cycle
S1 - Continuous

Brake Type
Electromagnetic Disc Brake

Body Material
Cast Iron

Brake Voltage
24V / 190V / 220V DC

DC Disc Brake Motor About

We, Shruti Engineering, are an appreciated manufacturer, exporter and supplier of high quality Disc Brakes and Industrial Hoists. Offered range of products includes Foot Mounted Brake Motor, Disc Brake and Liner Brake.

Electromagnetic Disc Brake Design

Incorporating a high-performance electromagnetic disc brake, this motor provides immediate and secure stopping, essential for safety in applications requiring precise control and rapid response, such as hoists and cranes. The brake is available in a variety of voltages to align with different control systems.

Dependable Construction and Protection

Constructed from cast iron and sealed to IP55 standards, the motor is engineered for durability and dependable performance in harsh industrial settings. The totally enclosed fan-cooled (TEFC) design shields internal components from dust, water ingress, and mechanical wear, enhancing service life.

Versatile Application Spectrum

Suitable for integration in cranes, elevators, conveyors, and automated systems, the DC Disc Brake Motor supports continuous operation (S1 duty). Its high starting torque and advanced control features make it ideal for demanding, high-reliability industrial automation tasks.

FAQ's of DC Disc Brake Motor:

Q: How does the DC disc brake operate in this motor?

A: The DC disc brake is an electromagnetic brake powered by a DC supply (24V, 190V, or 220V). When energized, it releases the disc, allowing the motor shaft to rotate. When de-energized, the brake engages, quickly stopping the shaft, ensuring rapid and reliable stopping for safety-critical applications.

Q: What applications are best suited for this DC Disc Brake Motor?

A: This motor is specifically engineered for use in cranes, hoists, elevators, conveyors, and a range of industrial automation systems where rapid, dependable stopping and secure holding are essential for operational safety and productivity.

Q: When should I use a motor with Class F insulation and high IP protection?

A: Class F insulation allows the motor windings to withstand higher temperatures, making it ideal for environments with fluctuating or elevated ambient conditions. IP55 protection ensures resistance to dust and water spray, making this motor suitable for both indoor and moderately harsh outdoor use.

Q: Where is the DC Disc Brake Motor typically installed?

A: These motors are commonly foot-mounted onto industrial machinery bases or frameworks. Their robust design and customizable frame sizes ensure easy integration into both new installations and upgrades of existing systems.

Q: What process is involved in starting this motor?

A: This motor uses a Direct On Line (DOL) starting method, which supplies full voltage directly to the motor terminals, resulting in high starting torque. This is particularly important for applications requiring the motor to carry heavy loads from standstill, such as hoists and conveyors.

Q: How does the DC Disc Brake Motor benefit industrial operations?

A: By delivering quick stopping and high starting torque, this motor enhances operational safety and productivity. Its reliable performance, low maintenance needs, and high efficiency minimize downtime and total cost of ownership in demanding industrial environments.
