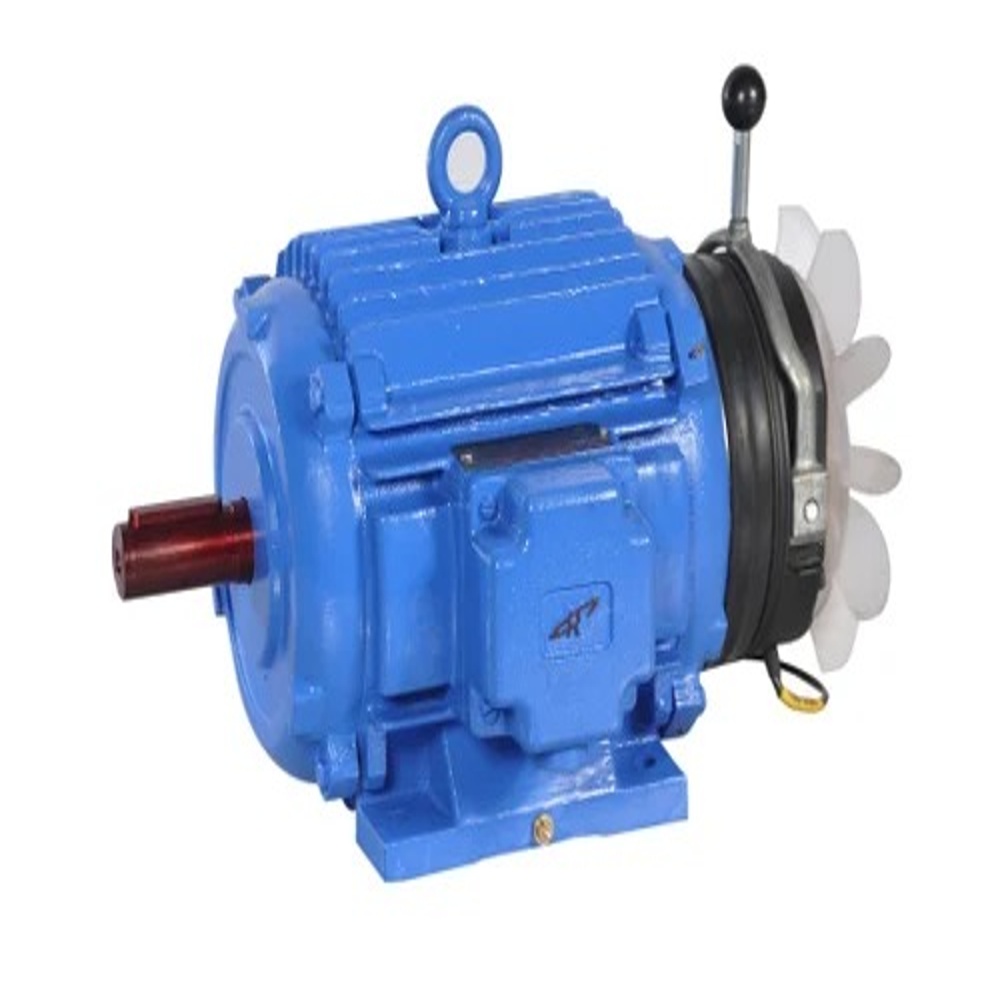

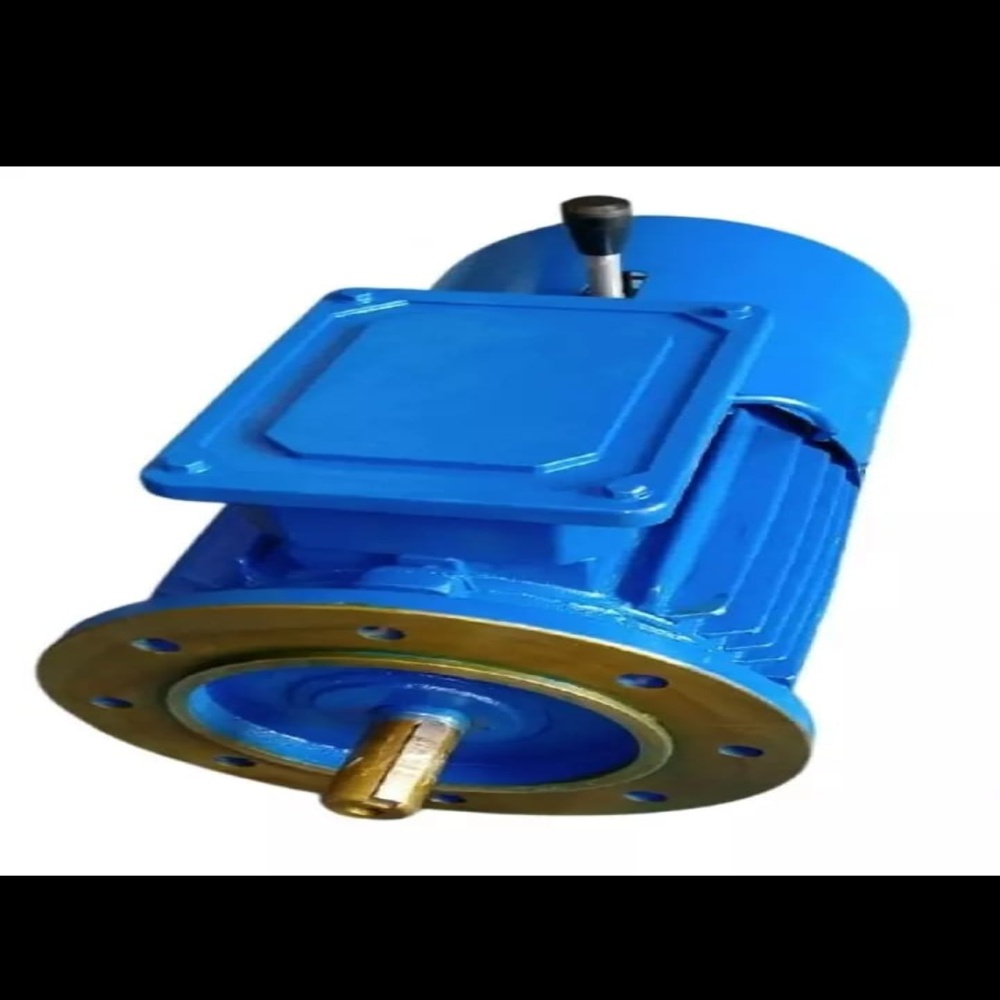

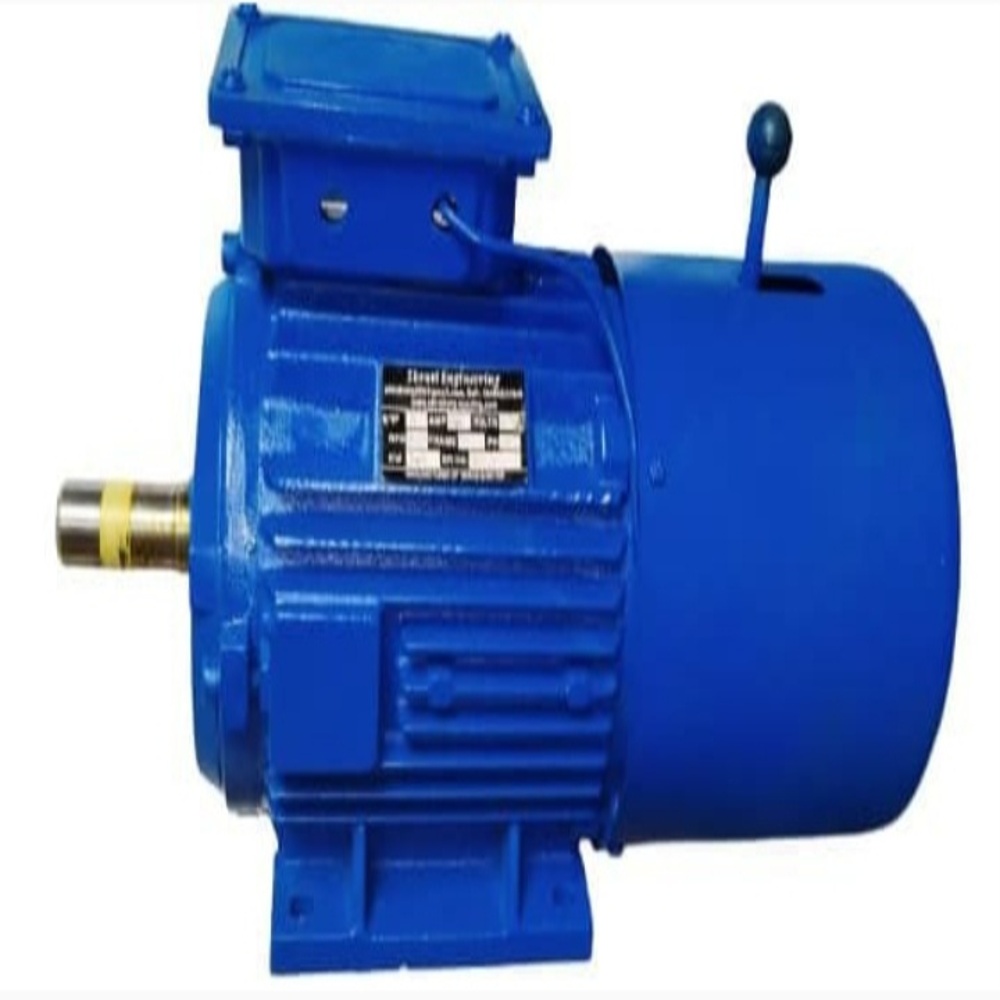

Shruti Engineering DC Brake Motor

Shruti Engineering DC Brake Motor Specification

Standard
IS 325

Efficacy
High Efficiency

Ambient Temperature
-20C to +55C

Power Rating
Standard

Rated Frequency
50 Hz

Starting Type
Direct On Line (DOL) / Star-Delta

Torque
Standard torque as per power rating

Poles Number
2, 4, 6

Current Type
AC

Sealed Type
TEFC

Features
High performance, Easy maintenance, Compact design, Rugged construction

Noise Level
Low

Motor Type
DC Brake Induction Motor

Pressure
Ambient

Cooling Method
Fan Cooled

Voltage
415V / 230V

Rated Voltage
415V / 230V

Bearing Type
Ball Bearing

Horse Power
0.5 HP to 30 HP

Product Type
DC Brake Motor

Output Power
0.37 kW to 22 kW

Frequency (MHz)
50 Hz

Protect Feature
Totally Enclosed Fan Cooled (TEFC)

Phase
Three Phase / Single Phase

Speed
1440 RPM, 960 RPM, 2880 RPM

Power
0.5 HP to 30 HP

Color
Blue

Dimension (L*W*H)
According to mounting size and power rating

Weight
Standard as per model

Shaft Diameter
Standard as per model

Mounting Type
Foot / Flange / Face Mounting

IP Rating
IP55

Application
Cranes, Hoists, Elevators, Conveyors, Material Handling, Textile Machinery

Frame Size
63 to 180 L

Thermal Protection
Yes, on request

Rotor Type
Squirrel Cage

Service Factor
1.0 to 1.15

Applicable Standards
IS 4722

Insulation Class
Class F / Class B

Brake Voltage
190 V DC / 24 V DC / 110 V DC

Duty Type
S1 (Continuous)

Material
Cast Iron Body

Shruti Engineering DC Brake Motor About

DC Brake Motor. Which are for various applications requiring almost instant stopping of drive load. The braking action is obtained without axial sliding of shaft and provided equal braking torque in both directions of rotations. Basically brake motor combination of an a.c. induction motor and a disc type, fail safe Electromagnetic brake unit. The IMB series covers products with outputs from as 0.18kW to 7.5kW in frame sizes 63 to 132M in 2, 4 & 6 pole speed. Brake motors are available in foot, flange mounting.

Precision Engineering and Reliable Safety

Shruti Engineering's DC Brake Motors are built for demanding applications requiring precise stopping and control. The integrated DC brake offers dependable holding and fast stopping, ensuring safety in material handling and textile processes. Compliance with IS 4722 and IS 325 assures standardized performance and quality.

Versatile and Efficient Operation

Available in output ranges from 0.5 HP to 30 HP and speeds of 960, 1440, and 2880 RPM, these motors cater to diverse industrial needs. Their TEFC (Totally Enclosed Fan Cooled) construction and high service factor (1.0 - 1.15) enable continuous, trouble-free operation in challenging environments. Multiple mounting options allow flexible installation.

FAQ's of Shruti Engineering DC Brake Motor:

Q: How does the integrated DC brake function in Shruti Engineering's DC Brake Motor?

A: The motor utilizes a direct current (DC) brake system for precise, rapid stopping and secure holding under load. The brake can operate on 190V DC, 24V DC, or 110V DC, making it suitable for applications where immediate motion control and enhanced safety are essential.

Q: What standards do the Shruti Engineering DC Brake Motors comply with?

A: These motors are manufactured according to IS 4722 and IS 325 standards, guaranteeing consistent quality, performance, and safety across industrial applications.

Q: Where are Shruti Engineering DC Brake Motors typically used?

A: These motors are extensively used in cranes, hoists, elevators, conveyors, textile machines, and other material handling equipment due to their reliability, high starting torque, and safe operational features.

Q: What are the advantages of the Totally Enclosed Fan Cooled (TEFC) design?

A: The TEFC design protects internal components from dust, moisture, and contaminants, extending motor lifespan and ensuring optimal cooling for continuous operation in harsh industrial environments.

Q: How can I select the right frame size and mounting type for my application?

A: Frame size (63 to 180 L) and mounting type (foot, flange, or face) are chosen based on the power rating, required torque, and space available at the installation site. Shruti Engineering offers customization to match your specific mounting and performance requirements.

Q: What is the process for requesting thermal protection with the motor?

A: Thermal protection can be included upon request during ordering. This feature helps prevent overheating by monitoring temperature and automatically shutting off the motor if necessary, thereby safeguarding your equipment.
