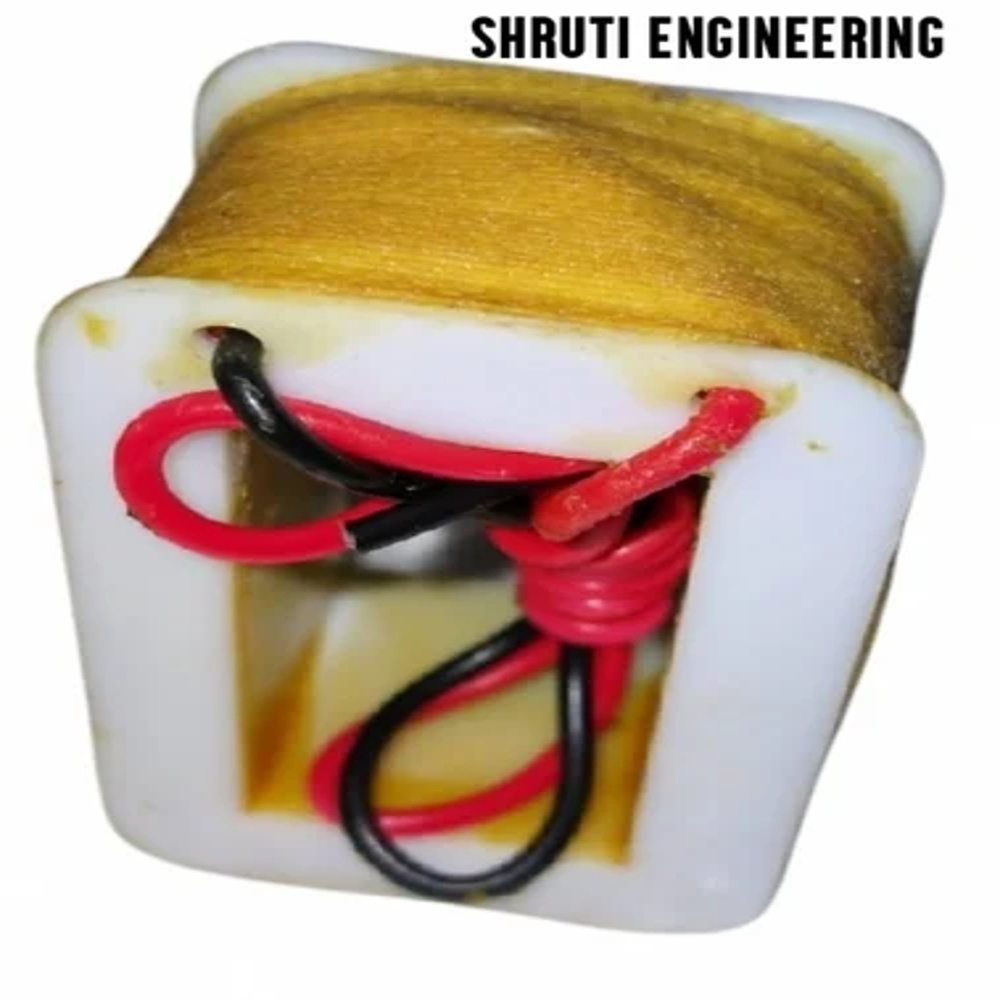

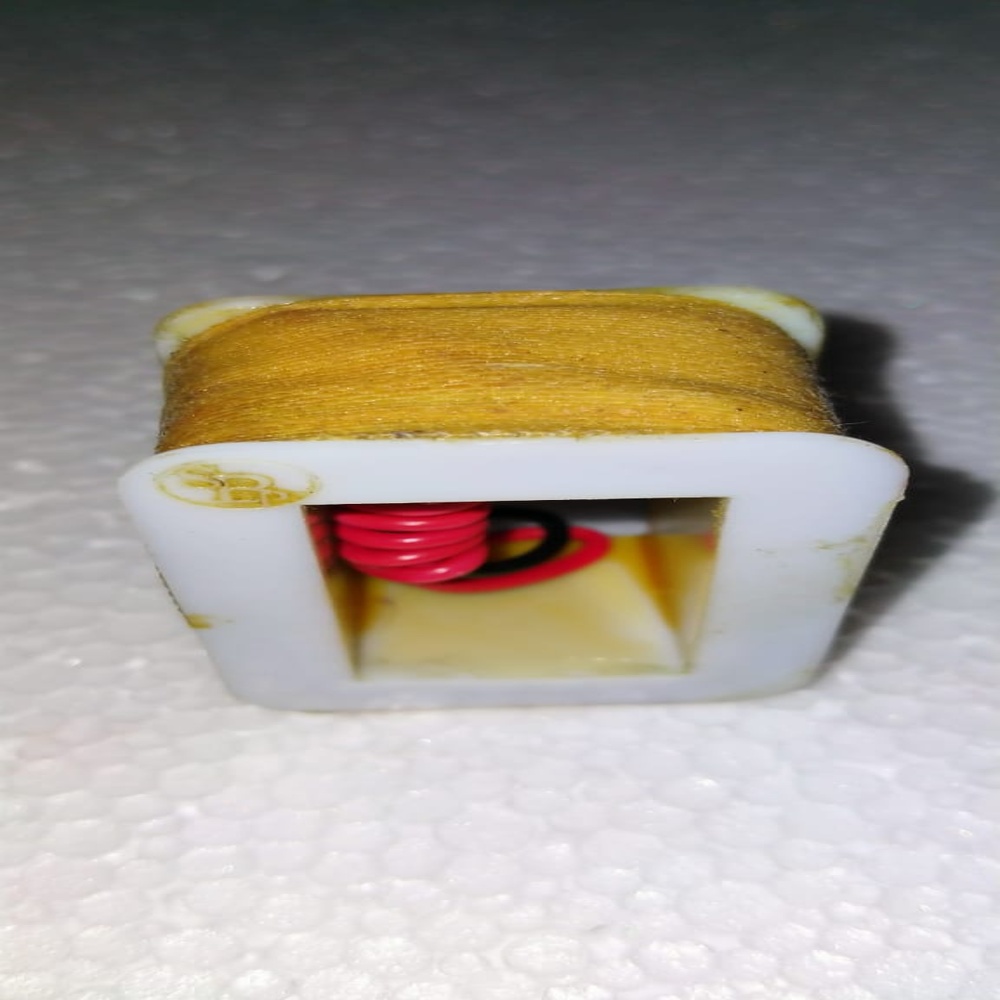

Electromagnetic Coil

Electromagnetic Coil Specification

Noise Level
Low noise operation

Features
High durability, Thermal resistant, Precision wound

Part Type
Coil

Usage & Applications
Electromagnetic Brakes, Lifting Equipment, Industrial Automation

Mounting Type
Insert/slot mount

Brake Type
Electromagnetic

Size
Customizable as per requirement

Material
Copper winding with insulated casing

Pattern Material
Epoxy Resin / Polymer Encapsulated

Surface Finish
Smooth insulated finish

Standard
IS / IEC standard compliant

Coil Resistance
Ohms as per coil design

Wire Gauge
SWG as per design specifications

Shape
Rectangular

Operating Temperature
-20C to 120C

Voltage Rating
12V / 24V / 110V / 220V AC-DC (as required)

Insulation Class
Class F/H

Lead Type
Flexible, color-coded leads

Weight
Dependant on size (custom)

Duty Cycle
Continuous / Intermittent

Minimum Order Quantity
As per customer request

About Electromagnetic Coil

Our Industrial AC Brake Coil is a high-quality electromagnetic coil designed for AC brake systems in cranes, hoists, lifts, and industrial machinery. It provides precise electromagnetic control for fail-safe braking, ensuring instant stopping and reliable performance in heavy-duty applications.

Manufactured using premium-grade copper wire and insulation materials, this coil offers high efficiency, long life, and consistent performance, even under frequent start-stop cycles.

Features:

Electromagnetic coil for AC fail-safe brakes
High efficiency and precise operation
Durable copper winding with premium insulation
Smooth, reliable, and vibration-free braking
Suitable for industrial and heavy-duty applications

Engineered for Versatile Applications

These electromagnetic coils, with voltage options ranging from 12V to 220V AC-DC, adapt seamlessly to various industrial uses, especially electromagnetic brakes and automation systems. Precision winding and robust encapsulation guarantee reliable performance, no matter the demands of your installation.

Customizable to Your Specifications

Understanding the unique needs of every application, these coils are available in custom sizes, SWG wire gauges, coil resistance, and duty cycles. Minimum order quantities are flexible, providing a tailored solution without unnecessary inventory or waste.

Compliant and Durable Construction

Manufactured to strict IS/IEC standards, these coils are insulated with Class F or H materials, operate between -20C and 120C, and feature smooth, insulated finishes. Their design ensures both safety and longevity in challenging industrial environments.

FAQ's of Electromagnetic Coil:

Q: What voltage ratings are available for these electromagnetic coils?

A: The coils can be manufactured to operate at 12V, 24V, 110V, or 220V AC-DC, depending on the specific application and customer requirements.

Q: How can I customize the coil for my application?

A: You can specify parameters such as coil size, wire gauge, resistance, duty cycle (continuous or intermittent), and lead configuration to ensure the coil fits your equipment and operational needs.

Q: Where are these coils typically used?

A: These electromagnetic coils are widely used in electromagnetic brake systems, lifting equipment, and industrial automation due to their reliability and thermal resistance.

Q: What is the process for ordering and what is the minimum order quantity?

A: Simply provide your design specifications and requirements. The minimum order quantity is flexible-the number is determined based on your needs as a customer.

Q: What benefits do epoxy resin or polymer encapsulation provide to the coil?

A: Encapsulation with epoxy resin or polymer protects the winding from environmental influences, enhances thermal resistance, and ensures a smooth, durable finish that extends the coil's lifespan.

Q: How does the insulation class affect coil performance?

A: Class F or H insulation enables the coil to operate safely at high temperatures (up to 120C), maintaining performance and durability in demanding settings.
