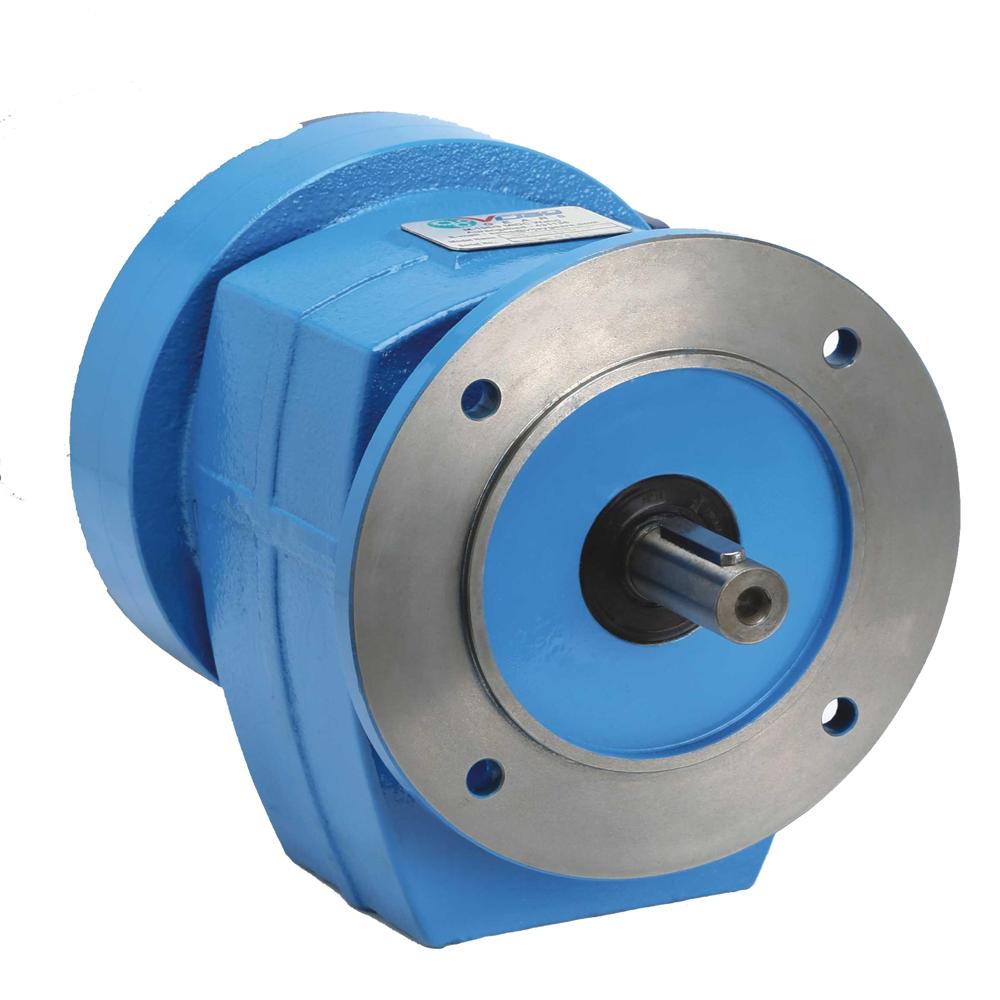

Helical Gear Box for Packaging Machine

Helical Gear Box for Packaging Machine Specification

Gear Type
Helical Gear

Material
Cast Iron / Alloy Steel

Processing Type
Precision Machined

Gear Tooth Profile
Helical

Gearing Arrangement
Parallel Shaft

Direction
Bidirectional

Output Torque
Up to 8000 Nm

Rated Power
0.18 kW to 45 kW

Input Speed
Up to 1500 rpm

Output Speed
5-300 rpm

Voltage
220V / 380V / 415V

Efficiency
Up to 96%

Coupling
Direct Coupling / Flexible Coupling

Noise Level
Low

Shaft Material
EN8 / EN19 Steel

Application
Packaging Machine, Conveyor Systems, Industrial Automation

Mounting Type
Flange / Foot Mounted

Housing Design
Rugged, One-piece Housing

Surface Finish
Anti-corrosive Painted

Shock Load Resistance
High

Operating Temperature Range
-10C to 60C

Customization
Available as per requirements

Sealing Type
Oil Seal / Double Lip Seal

Backlash
Low Backlash Option Available

Lubrication
Oil Bath / Grease Lubricated

About Helical Gear Box for Packaging Machine

We are an eminent entity that is engaged in offering an extensive range of quality assured Helical Geared Motors (Super SP Series). Our provided flange or foot mounted geared motors, motor mount reducers with hollow input shaft and solid input shaft inline gear reducers are available in the range of 0.4 kw to 5.5 kw and having ratio from 5:1 to 45 The units are suitable to meet the IEC frame 3-phase, 4 pole AC induction motors. Moreover, clients can avail this motor from us at economical prices.

Superior Performance and Efficiency

Designed for demanding industrial settings, the Helical Gear Box achieves efficiency levels up to 96%. The precision-machined helical gears provide seamless power transmission, delivering output torques of up to 8000 Nm, while maintaining low noise and high resistance to shock loads. The low backlash option ensures accuracy and reliability in every application.

Durable and Flexible Construction

Built with a rugged, one-piece housing and corrosion-resistant finish, the gear box is engineered for longevity in harsh environments. Users can choose from flange or foot mounting and benefit from reliable sealing through oil or double lip seals, ensuring minimal maintenance and extended service life. Customization is available to suit specific operational requirements.

FAQ's of Helical Gear Box for Packaging Machine:

Q: How is the Helical Gear Box customized to fit different packaging machines?

A: The Helical Gear Box can be tailored according to your operational needs, with options for mounting (flange/foot), coupling (direct/flexible), shaft material (EN8/EN19 steel), and lubrication style (oil bath or grease). Customization ensures optimal integration with various packaging machines, conveyor systems, or automation setups.

Q: What is the process for installing the gear box with mounting options?

A: The gear box can be installed using either flange or foot mounting methods, depending on your system design. Rugged construction and precision machining simplify alignment and integration, while comprehensive installation manuals are provided to ensure secure and efficient setup.

Q: Where can this gear box be applied in industrial settings?

A: This gear box is ideal for packaging machines, conveyor systems, and a broad range of industrial automation applications. Its high shock load resistance, low noise, and versatile mounting options make it suitable for many manufacturing and processing environments.

Q: When is low backlash important for my application?

A: Low backlash is crucial when precise motion control and accurate positioning are required, especially in automated packaging or material handling systems. Selecting the low-backlash configuration ensures smooth, repeatable operation and enhanced equipment lifespan.

Q: What are the benefits of using an anti-corrosive painted gear box housing?

A: The anti-corrosive painted finish protects the gear box from harsh environmental factors such as moisture, chemicals, and temperature fluctuations. As a result, this increases durability, minimizes maintenance, and prevents premature wear and rusting.

Q: How does the lubrication method affect gear box performance?

A: Efficient lubrication, either by oil bath or grease, reduces friction and wear on gears and bearings, ensuring smooth operation and a longer service life. Selection depends on application parameters and maintenance routines, with both options providing reliable sealing to prevent leakage.

Q: What voltage and speed options are supported by this gear box?

A: The Helical Gear Box supports voltages of 220V, 380V, or 415V. It accommodates input speeds up to 1500 rpm, with output speeds adjustable from 5 to 300 rpm to match various industrial process demands.
