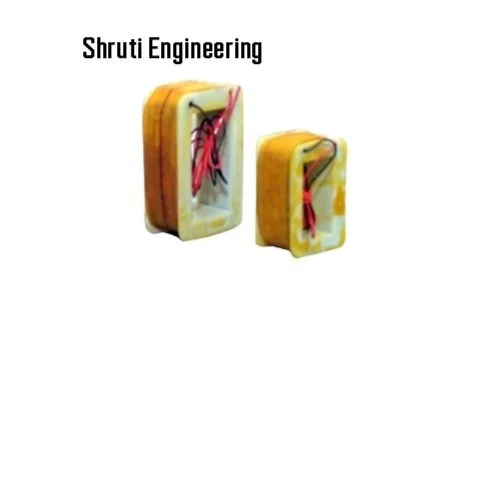

High Performance Brake Coil Specification

Usage & Applications
Industrial Brakes, Electromagnetic Brake Systems, Lifting & Automation Equipment

Part Type
Brake Coil

Features
High Performance, Durable, High Thermal Stability, Low Maintenance

Noise Level
Low

Mounting Type
Insert/Enclosure Mount

Brake Type
Electromagnetic Brake

Size
Custom/As per requirement

Material
Copper Wire, Insulated Material

Pattern Material
Epoxy/Fiber Board

Surface Finish
Polished/Coated

Standard
IS/IEC Standard

Usage Life
Up to 1 Million Operations

Current Type
AC/DC

Operating Temperature Range
-20C to +120C

Insulation Class
Class H (180C)

Color
Yellow/Custom

Wire Gauge
SWG 18-26 (As per Requirement)

Power Consumption
Low Power Consumption

Voltage Rating
24V, 110V, 220V, 415V (As required)

Coil Resistance
Custom/As per Design

Replacement
Direct Replacement Compatible

About High Performance Brake Coil

AC Brake Coil Assembly Description

The AC Brake Coil Assembly is a critical component used in electromagnetic AC brakes to ensure reliable braking performance in industrial machinery. Designed to generate the necessary magnetic field when energized, the coil assembly facilitates quick engagement and release of the brake, enabling precise motion control.

Manufactured with high-quality copper/aluminum windings and heat-resistant insulation, the AC brake coil assembly offers excellent thermal stability, durability, and low power consumption. It is engineered for long service life under continuous duty cycles and demanding industrial environments.

The coil assembly is commonly used in crane motors, hoists, conveyors, textile machinery, lifts, and other heavy-duty equipment, where dependable braking is essential. Available in various voltage ratings (110V, 220V, 415V, 50Hz/60Hz), it can be customized to suit different brake models and applications.

Customizable and Versatile Performance

Designed for adaptive use, this brake coil comes in various voltage ratings and accommodates both AC and DC currents, making it ideal for multiple industrial applications. Customizable coil resistance, size, and wire gauge options ensure a perfect fit for diverse operational needs.

Reliability and Longevity Assured

With Class H insulation and premium materials, this product endures high thermal stress and severe industrial conditions. Rated for up to 1 million operations, it combines low maintenance needs with consistent, high-performance operation in demanding environments.

FAQ's of High Performance Brake Coil:

Q: How do I select the suitable voltage rating for my application?

A: To determine the right voltage rating, match your operating environment's power source-available in 24V, 110V, 220V, or 415V-with your system requirements. This ensures optimal compatibility and performance of the brake coil.

Q: What is the installation process for this electromagnetic brake coil?

A: The brake coil is designed for direct replacement and is compatible with insert and enclosure mounting types. Simply follow your equipment's manufacturer guidelines to replace or install the coil with minimal adjustment or customization.

Q: Where can I use this high performance brake coil?

A: This coil is ideal for use in industrial brakes, electromagnetic brake systems, lifting mechanisms, and automation equipment that demand reliable, high-performance braking functions.

Q: What benefits does Class H insulation provide?

A: Class H insulation allows the coil to operate reliably up to 180C, protecting it from thermal stress under heavy-duty or continuous operation, thereby enhancing longevity and safety.

Q: When should I replace the brake coil?

A: Replace the coil after reaching its usable lifespan (up to 1 million operations) or if signs of wear, reduced braking efficiency, or overheating are observed to ensure optimal safety and performance.

Q: What makes this brake coil energy-efficient?

A: Its low power consumption and quality copper wire construction minimize energy loss, helping reduce operational costs while maintaining effective braking performance.

Q: How does the coil's design contribute to its durability?

A: Crafted with robust epoxy/fiber board insulation, copper windings, and a polished or coated surface finish, the coil withstands mechanical, thermal, and environmental stress, ensuring long-lasting service even in tough industrial settings.
