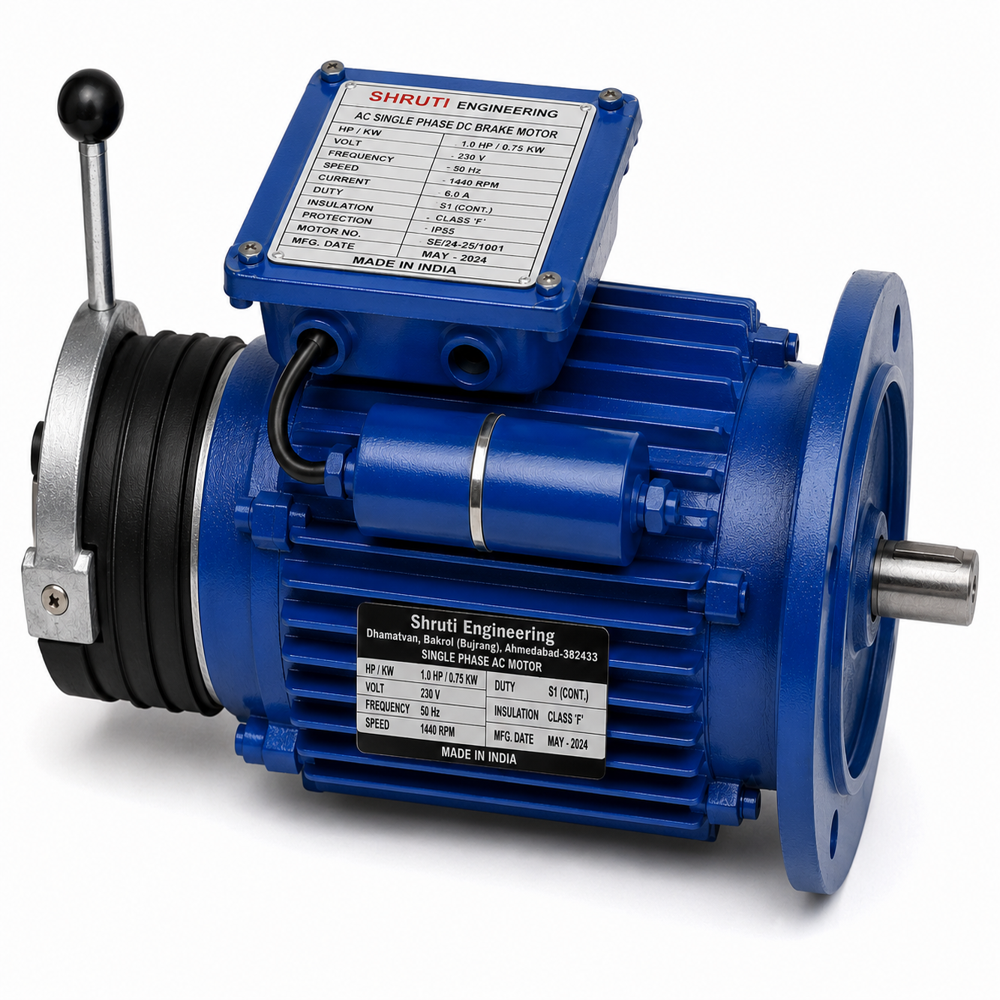

High Torque Single Phase Brake Motor

High Torque Single Phase Brake Motor Specification

Rated Frequency
50 Hz

Poles Number
4

Features
Heavy Duty Construction, Instant Braking, Reliable Performance

Rated Voltage
230 V

Standard
IS/IEC Standards

Starting Type
Direct On Line (DOL)/Capacitor Start

Torque
High Starting Torque

Ambient Temperature
-15C to +40C

Cooling Method
Fan Cooled

Pressure
Standard Atmosphere

Efficacy
High Efficiency

Bearing Type
Deep Groove Ball Bearing

Horse Power
3 HP

Power Rating
2.2 kW

Noise Level
Low Noise

Current Type
AC

Voltage
230 V

Sealed Type
Totally Enclosed

Motor Type
Induction Motor with Brake

Product Type
Single Phase Brake Motor

Output Power
Up to 3 HP

Frequency (MHz)
50

Protect Feature
Totally Enclosed Fan Cooled (TEFC)

Phase
Single Phase

Speed
1440 RPM

Power
2.2 kW

Color
Blue

Dimension (L*W*H)
445mm x 196mm x 250mm (Approx.)

Weight
25 kg (Approx.)

Shaft Diameter
28 mm

Mounting Type
Foot Mounted

IP Rating
IP55

Insulation Class
Class F

Brake Voltage
230 V AC

Duty Cycle
S1 (Continuous Duty)

Brake Type
Electromagnetic AC Brake

Rotation Direction
Reversible

Frame Size
112M

Finish
Powder Coated

Body Material
Cast Iron

Application
Textile, Packaging, Printing, Machine Tools, Conveyors

About High Torque Single Phase Brake Motor

We, Shruti Engineering, are an appreciated manufacturer, exporter and supplier of high quality Disc Brakes and Industrial Hoists. Offered range of products includes Foot Mounted Brake Motor, Disc Brake and Liner Brake.

Engineered for Continuous Performance

Built for S1 duty, the motor is optimized for continuous operation in intensive environments. The deep groove ball bearing and totally enclosed fan cooling system enhance its longevity and reliability. With reversible rotation and instant AC braking, this motor ensures operational flexibility, reducing downtime during frequent start-stop cycles.

Applications Across Industries

This brake motor is highly versatile, serving industries such as textiles, packaging, printing, machine tools, and conveyors. Its robust construction and powder-coated cast iron body provide corrosion resistance and withstand harsh working conditions. Its compact size allows for seamless integration into various machinery setups.

Reliable Safety and Efficiency

The electromagnetic AC brake, paired with IP55 protection and high starting torque, guarantees safe and efficient halting for demanding tasks. Operated on direct-on-line (DOL) or capacitor start, it meets stringent IS/IEC standards for performance, making it a dependable solution for manufacturers and operators.

FAQ's of High Torque Single Phase Brake Motor:

Q: How does the electromagnetic AC brake function in this single phase brake motor?

A: The electromagnetic AC brake uses an electromagnet powered by a 230 V AC supply to instantly engage or release the braking mechanism. This facilitates quick stopping of the motor shaft, enhancing safety and efficiency during operations where rapid halting is crucial.

Q: What are the main benefits of choosing a motor with insulation class F and IP55 rating?

A: Insulation class F allows the motor to withstand higher temperatures, promoting longer service life under continuous operation. The IP55 rating provides protection against dust and water jets, making the motor reliable in harsh industrial environments.

Q: When should this high torque brake motor be used in machinery setups?

A: This motor is ideal for applications requiring continuous, reliable operation with instant stopping, such as in textile, packaging, printing machines, conveyor systems, and machine tools, where safety and efficiency are essential.

Q: Where can this brake motor be mounted in industrial setups?

A: Designed with a foot mounting type, the motor can be securely fixed onto equipment or base frames, ensuring stability in various industrial machines and conveyor systems.

Q: What starting methods are supported and why are they beneficial?

A: The motor supports direct-on-line (DOL) and capacitor start methods, enabling easy integration and reliable starting with high starting torque-crucial for applications that experience heavy loads at startup.

Q: How does the totally enclosed fan cooled (TEFC) design enhance motor performance?

A: The TEFC design protects internal components from external contaminants while maintaining optimal cooling via an external fan. This design boosts motor lifespan and ensures consistent, efficient operation even in dusty or humid workplaces.

Q: What are the key features that provide operational reliability and efficiency in this motor?

A: Key features include heavy-duty cast iron construction, instant braking, deep groove ball bearings, high starting torque, and compliance with IS/IEC standards, all contributing to reliable, low-maintenance, and efficient performance.
