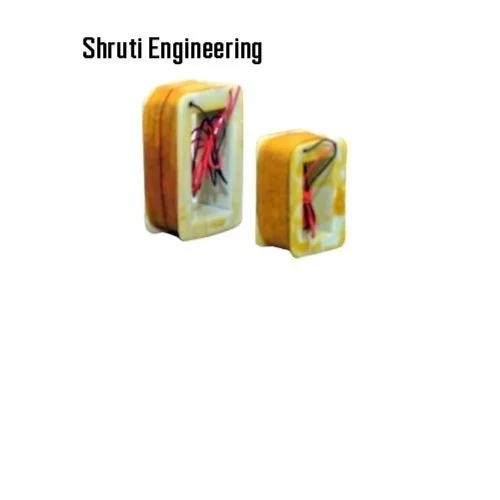

Industrial Magnet Coil

Industrial Magnet Coil Specification

Noise Level
Low

Usage & Applications
Industrial brakes, machinery, electromagnetic devices

Mounting Type
Flange/Plate mounted

Features
High durability, Efficient magnetic flux, Heat resistant, Precision wound

Part Type
Magnet coil

Brake Type
Electromagnetic

Size
Custom/Standard (as per requirement)

Material
Copper winding, Insulating material (phenolic/resin cast)

Pattern Material
Phenolic/Resin bonded insulation

Surface Finish
Smooth, Resin-coated

Standard
IS/IEC standard compliant

Rated Voltage
24V / 110V / 220V (custom options available)

Wire Gauge
Enamelled copper, Standard industrial gauge

Service Life
1 million cycles

Dimension Tolerance
0.5 mm

Insulation Class
Class F/H

Operating Temperature Range
-20C to +120C

Resistance to Moisture
High, resin-sealed

Current Type
DC/AC as specified

Lead Termination
Flexible insulated lead wires

About Industrial Magnet Coil

We are offering Brake Coil for AC Electromagnetic Brakes.We provide high-quality products to our clients.

High strength

High temperature

Wear-resistant

Copper winding

Noiselessly

Good stability

Long life

Precision Engineered for Industrial Use

These magnet coils are meticulously constructed from enamelled copper windings and insulated phenolic or resin-cast materials, promoting reliable operation in challenging industrial settings. The resin-coated, smooth finish and tight dimension tolerances guarantee dependable performance over extensive cycles, making them ideal for demanding machinery and electromagnetic applications.

Flexible Design and Customization Options

Standard and custom sizes, various voltage ratings, and selectable insulation classes allow our magnet coils to adapt seamlessly to client requirements. DC and AC compatibility, multiple mounting options, and custom lead terminations ensure integration into diverse setups, tailored precisely for specific mechanical or braking systems.

FAQ's of Industrial Magnet Coil:

Q: How do I select the appropriate voltage rating for my industrial magnet coil?

A: Determine your electrical system's voltage specifications-24V, 110V, or 220V-and match them with the coil's ratings. For unique requirements, custom voltage options can be specified during ordering to ensure compatibility with your machinery or electromagnetic application.

Q: What makes these magnet coils highly durable in industrial environments?

A: These coils feature resin-sealed, enamelled copper windings with Class F/H insulation and robust insulating materials, granting them exceptional resistance to moisture, heat (up to +120C), and demanding operational cycles exceeding one million, ensuring long service life and reliability.

Q: When is it necessary to use Class F or H insulation in magnet coils?

A: Class F or H insulation is recommended when the coil is expected to operate in high-temperature environments or where extra protection against heat buildup is required, providing enhanced safety and prolonged component lifespan.

Q: Where can these industrial magnet coils be applied?

A: They are widely used in industrial brakes, machinery, and electromagnetic devices requiring efficient and consistent magnetic flux. Their adaptability makes them suitable for a broad range of sectors, from automation systems to heavy equipment manufacturing.

Q: What benefits does the precision winding process offer?

A: Precision-wound coils ensure uniform distribution of magnetic flux, reduce electrical losses, and maintain efficient operation, all of which contribute to minimized noise levels and enhanced operational efficiency.

Q: How does the high moisture resistance benefit my application?

A: The coils' resin-sealed construction protects internal components against moisture ingress, preventing corrosion and short circuits, which is crucial for reliability especially in humid or harsh environments.
