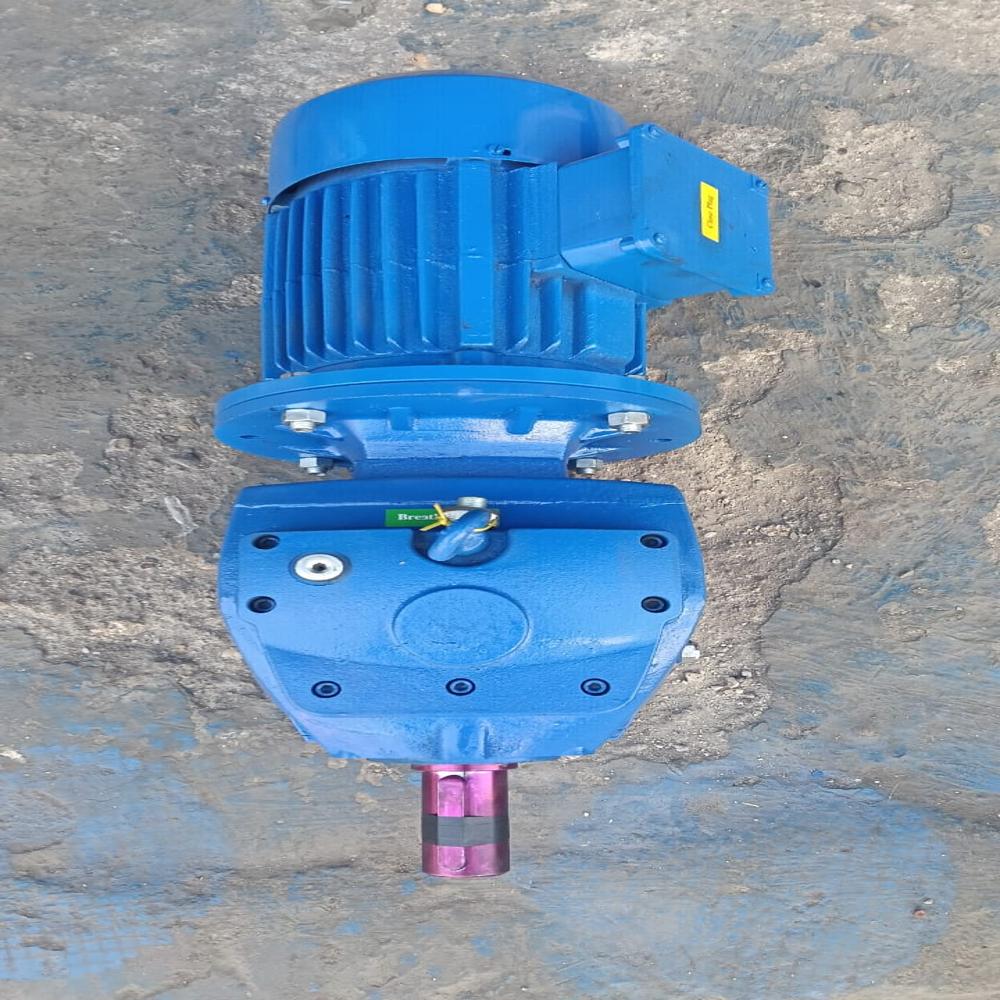

Solid Shaft Helical Gear Motor

Solid Shaft Helical Gear Motor Specification

Sealed Type
Fully Sealed

Features
Robust construction, High efficiency gears, Easy installation

Voltage
415 V

Noise Level
Low Noise (<70 dB)

Efficacy
IE2/IE3 Class

Cooling Method
IC411

Rated Voltage
415V AC

Current Type
AC

Standard
IEC/IS standard

Starting Type
DOL/Star-Delta

Power Rating
0.12 kW to 200 kW

Motor Type
Helical Gear Motor

Rated Frequency
50 Hz

Poles Number
2/4/6/8 Poles

Ambient Temperature
-15C to +40C

Torque
Up to 18,000 Nm

Bearing Type
Heavy Duty Ball Bearing

Horse Power
0.16 HP to 268 HP

Pressure
Standard Atmospheric

Product Type
Solid Shaft Helical Gear Motor

Output Power
0.12 kW to 200 kW

Frequency (MHz)
50 Hz

Protect Feature
IP55 Protection

Phase
Three Phase

Speed
Up to 350 RPM

Power
Variable as per model

Color
Blue

Dimension (L*W*H)
Customized as per model

Weight
Varies with model

Shaft Diameter
Varies per model

Mounting Type
Foot or Flange Mounted

IP Rating
IP55

Thermal Protection
Available on request

Overload Capacity
150% for 60 seconds

Duty Cycle
S1 Continuous

Service Factor
1.0 - 1.5

Lubrication
Oil Bath/Lifetime Greased

Housing Material
Cast Iron or Aluminum

Vibration Level
Within permissible limits

Insulation Class
F or H

Application
Conveyors, Crushers, Mixers, Industrial Machinery

Gear Ratio
Up to 250:1

Enclosure
Totally Enclosed Fan Cooled (TEFC)

About Solid Shaft Helical Gear Motor

Shruti Engineering is a reputed Exporter of Helical Gear Motors, offering high-performance and energy-efficient drive solutions for industrial and material handling applications. Our Helical Gear Motors are designed with precision-engineered gears that ensure smooth torque transmission, low noise, and high efficiency under heavy load conditions.

These motors are built to deliver maximum output with minimum maintenance, making them ideal for conveyors, cranes, hoists, mixers, and packaging machinery.

Rugged Design for Demanding Applications

Crafted from solid cast iron or aluminum, the helical gear motor is built for strength and longevity. Its robust housing and fully sealed design ensure resistance to harsh industrial environments and consistent performance even under heavy-duty cycles. This construction enables reliable operation in applications such as conveyors, crushers, and mixers.

Energy Efficient and Versatile Performance

With IE2/IE3 efficiency class, low noise output, and an extensive speed and torque range, this gear motor delivers tailored performance for various machinery. Its wide selection of gear ratios (up to 250:1) and power ratings suit diverse needs, while the totally enclosed fan cooled (TEFC) design and lifetime lubrication guarantee minimal maintenance.

Easy Installation and Flexible Mounting

Designed for user convenience, the gear motor offers foot or flange mounting to fit different equipment layouts. Its simple installation process, adherence to IEC/IS standards, and availability for three-phase AC supply make it a universal choice for OEMs and plant managers looking for a reliable, efficient drive solution.

FAQ's of Solid Shaft Helical Gear Motor:

Q: How does the Solid Shaft Helical Gear Motor ensure reliable performance in harsh environments?

A: The gear motor features a fully sealed, IP55-rated enclosure made of robust cast iron or aluminum. This design protects internal components from dust, water, and mechanical damage, ensuring long-term reliability even in demanding industrial settings.

Q: What lubrication options are available for this gear motor, and how does it impact maintenance?

A: You can choose between oil bath lubrication or lifetime greased options. Both systems are designed to minimize maintenance needs, with oil bath providing superior lubrication in heavy-duty use and lifetime grease requiring little to no upkeep during its operational lifespan.

Q: Where can this gear motor be effectively used?

A: The Solid Shaft Helical Gear Motor is suited for conveyors, crushers, mixers, and a range of industrial machinery. Its high torque, variable power output, and efficient cooling allow it to adapt to various equipment in manufacturing and processing plants.

Q: When is thermal protection recommended for this gear motor?

A: Thermal protection is advisable when the gear motor is used in applications with potential for overheating due to high ambient temperatures or frequent overloads. It is available on request to enhance safety and prolong motor life.

Q: What is the installation process and how flexible is the mounting arrangement?

A: This gear motor supports both foot and flange mounting types, catering to different installation needs. Its standardized dimensions and user-friendly interfaces enable quick and straightforward installation on new or existing equipment.

Q: What are the key benefits of choosing this helical gear motor over other options?

A: Key benefits include high energy efficiency, low noise operation, a service factor of 1.0 to 1.5 for demanding cycles, overload capacity up to 150%, and easy maintenance. The robust build and versatile specifications suit diverse applications in harsh industrial environments.

Q: How does the motor minimize vibration and noise during operation?

A: It employs precision-machined gears and is dynamically balanced, maintaining vibration and noise levels well within permissible industry limits-typically below 70 dB-ensuring a quieter and more stable working environment.
