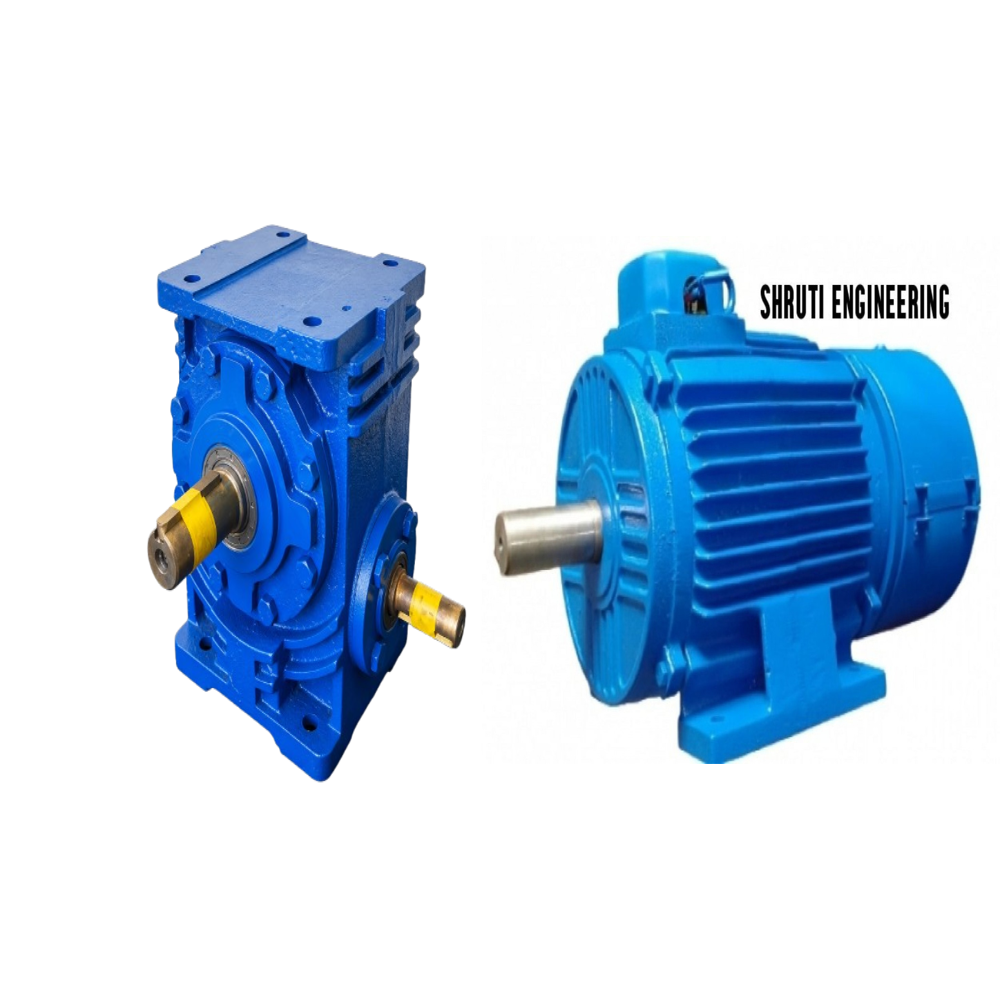

NXU GEAR BOX, NU GEAR MOTOR, NXU GEAR BRAKE MOTOR

ELECTRO HYDRAULIC THRUSTER

Textile Machine Gear Box

Textile Machine Gear Box Specification

Gear Type
Helical Gear

Material
Cast Iron / Alloy Steel

Processing Type
Hobbing / CNC Machined

Gear Tooth Profile
Helical

Gearing Arrangement
Parallel Shaft

Direction
Bidirectional

Output Torque
260 Nm

Rated Power
3.7 kW

Input Speed
1440 RPM

Output Speed
55 RPM

Voltage
415V AC

Efficiency
Up to 95%

Mounting Type
Foot Mounted

Service Factor
1.5

Enclosure
Totally Enclosed

Application
Textile Machinery

Cooling
Natural Air Cooled

Paint Coating
Industrial Grade Blue Paint

Lubrication
Splash / Oil Bath

Noise Level
< 75 dB

About Textile Machine Gear Box

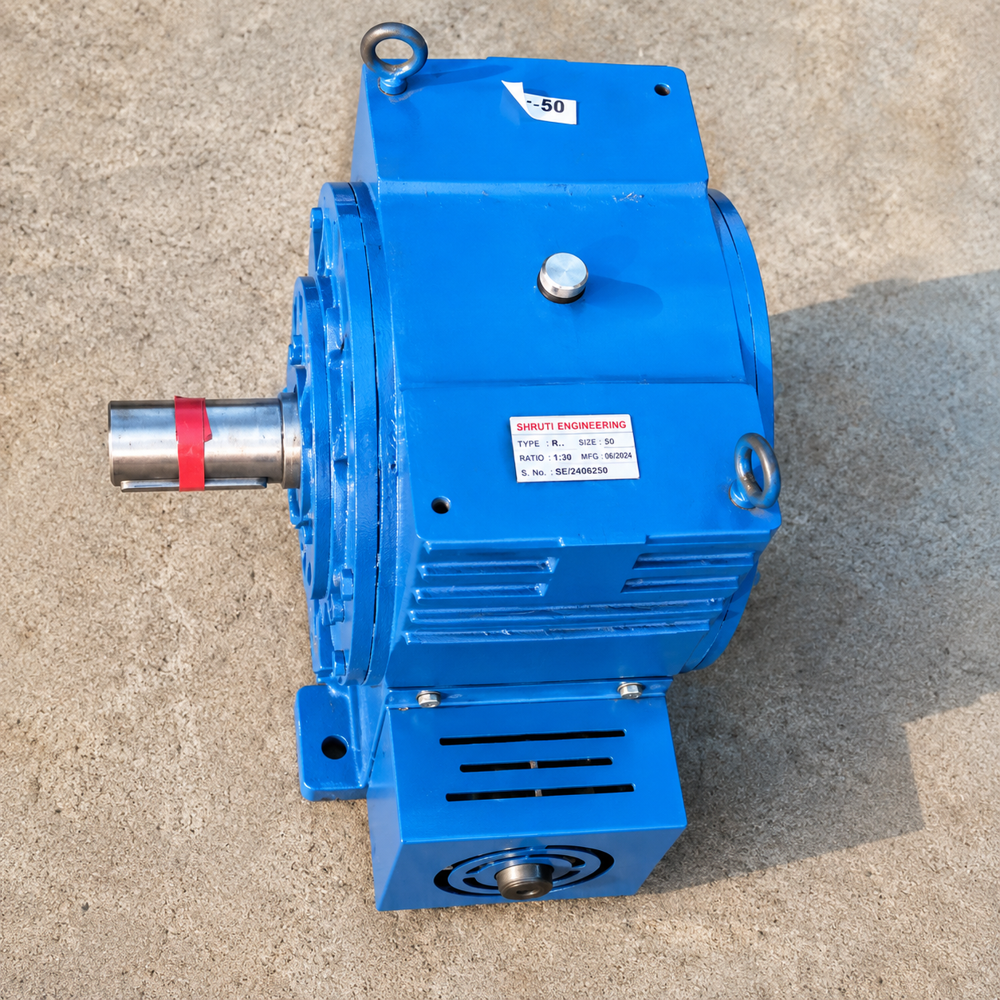

NXU Gear Reducer Description

The NXU Gear Reducer is a high-performance, compact, and efficient transmission unit designed for various industrial automation and power transmission applications. Built with precision engineering, it ensures smooth torque transmission, high load capacity, and long service life.

This gearbox features a modular design that allows easy installation and compatibility with different types of motors, including AC, DC, and brake motors. The NXU series is known for its high torque output, low noise operation, and excellent efficiency, making it ideal for demanding applications such as conveyors, packaging machines, lifting systems, and material handling equipment.

Superior Durability and Performance

Built from cast iron and alloy steel, the gear box ensures long-lasting durability while minimizing maintenance. Its helical gear tooth design and precise machining provide optimal meshing for low noise and high efficiency, making it ideal for demanding textile machinery.

Efficient Design and Cooling System

This gear box features a natural air-cooled system and splash or oil bath lubrication, maintaining consistent operating temperatures and extending gear life. The industrial-grade paint not only enhances appearance but also protects against harsh operating environments.

Versatile and Reliable Operation

Supporting bidirectional motion with a parallel shaft arrangement, this gear box delivers up to 95% efficiency. Its totally enclosed housing shields internal components from dust and debris, ensuring uninterrupted textile production and consistent output.

FAQ's of Textile Machine Gear Box:

Q: How is the Textile Machine Gear Box installed and where can it be used?

A: The gear box features a foot-mounted design, allowing it to be easily secured to the base of textile machinery. Its robust construction suits various textile applications, including spinning, weaving, and processing equipment.

Q: What benefits does the splash/oil bath lubrication provide?

A: Splash or oil bath lubrication offers consistent and thorough coverage of internal gears, reducing wear and extending service life. This method minimizes maintenance and enhances overall gear efficiency.

Q: When should the gear box be inspected or maintained?

A: Regular inspections are recommended every six months or in alignment with machinery service intervals. Check lubrication levels, inspect for abnormal noise, and ensure all mounting bolts remain secure for optimal performance.

Q: Where does the noise rating of below 75 dB make a difference in operation?

A: A noise level under 75 dB ensures a quieter working environment, which is particularly beneficial in textile plants where multiple machines operate simultaneously, promoting operator comfort and reducing noise pollution.

Q: What process is used in manufacturing the gear tooth profile?

A: The gear box employs both hobbing and CNC machining processes to create precision helical gear tooth profiles. These methods result in reliable meshing, reduced vibration, and improved power transmission.

Q: How is the natural air cooling beneficial for this enclosure?

A: Natural air cooling dissipates heat effectively, maintaining consistent temperatures without the need for external cooling systems. This extends component life and increases overall reliability in textile environments.

Q: What efficiency can users expect, and what are the advantages?

A: Users can expect up to 95% efficiency from this gear box. High efficiency reduces power consumption, minimizes operational costs, and supports higher productivity in textile manufacturing.
