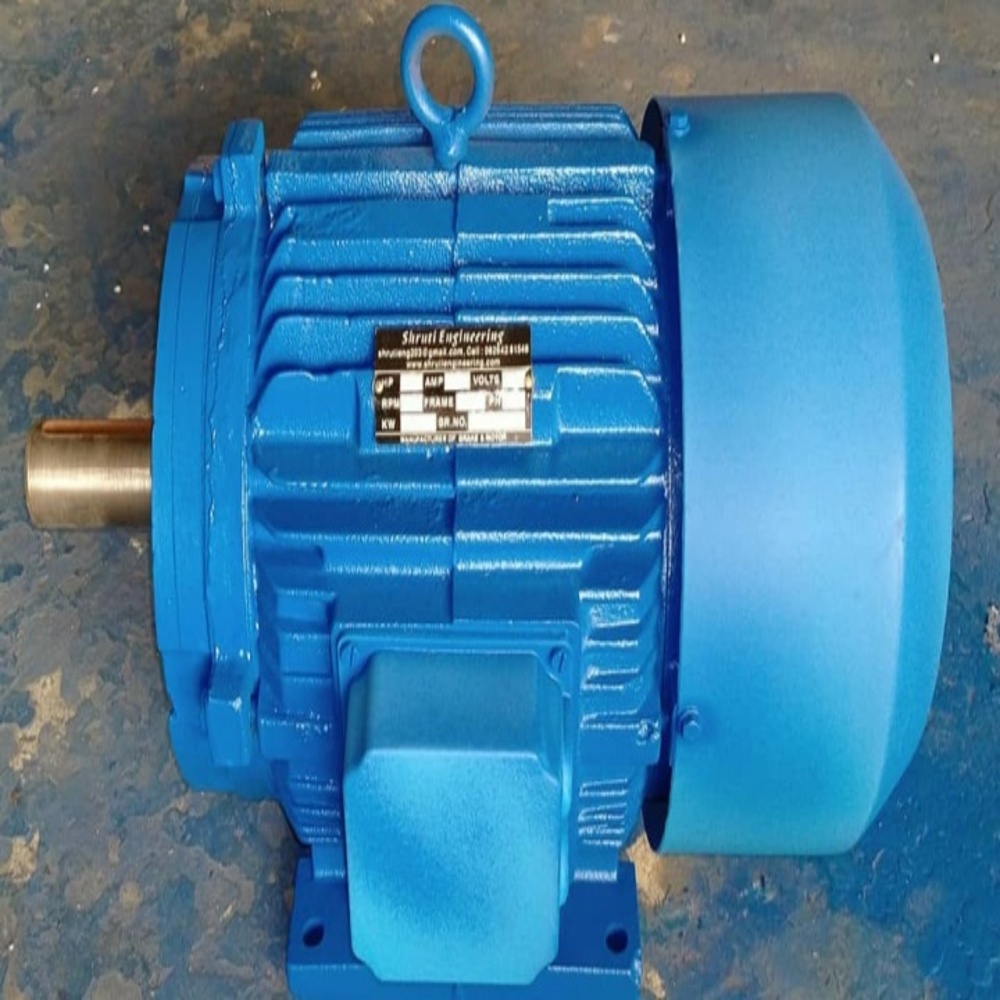

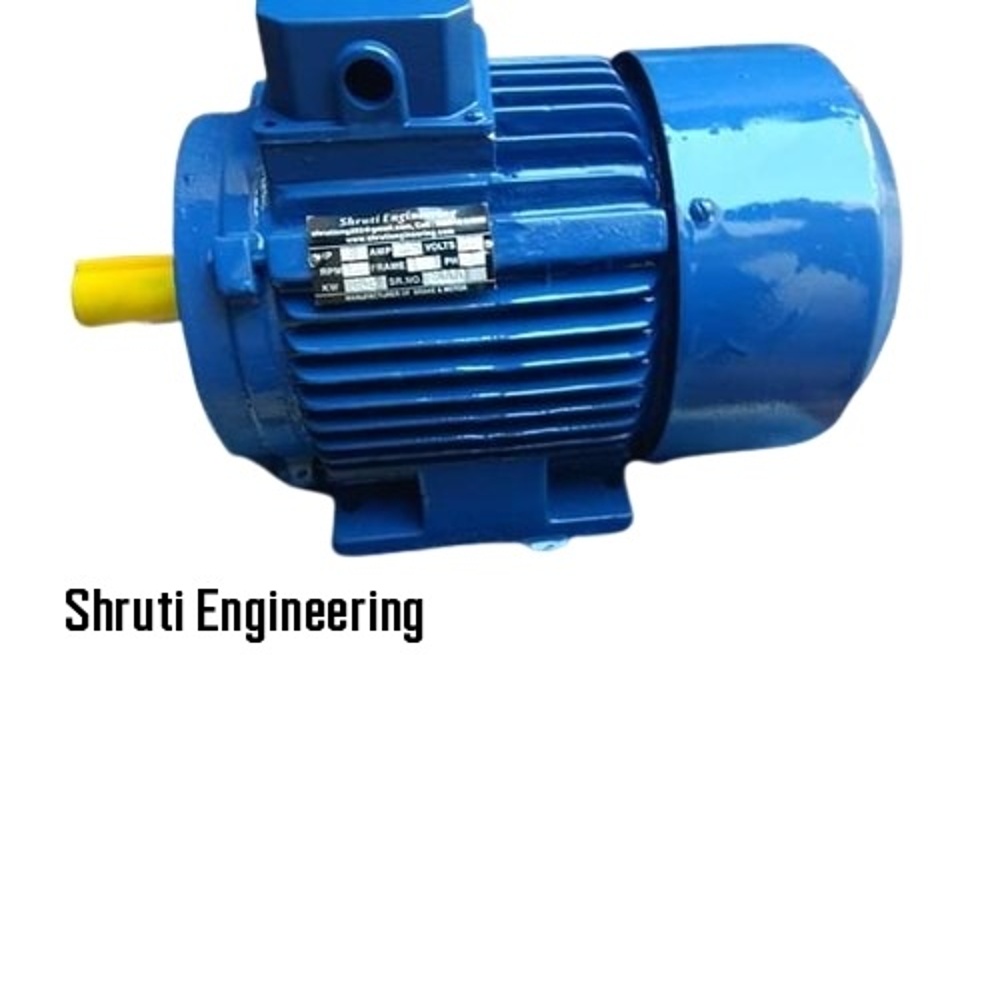

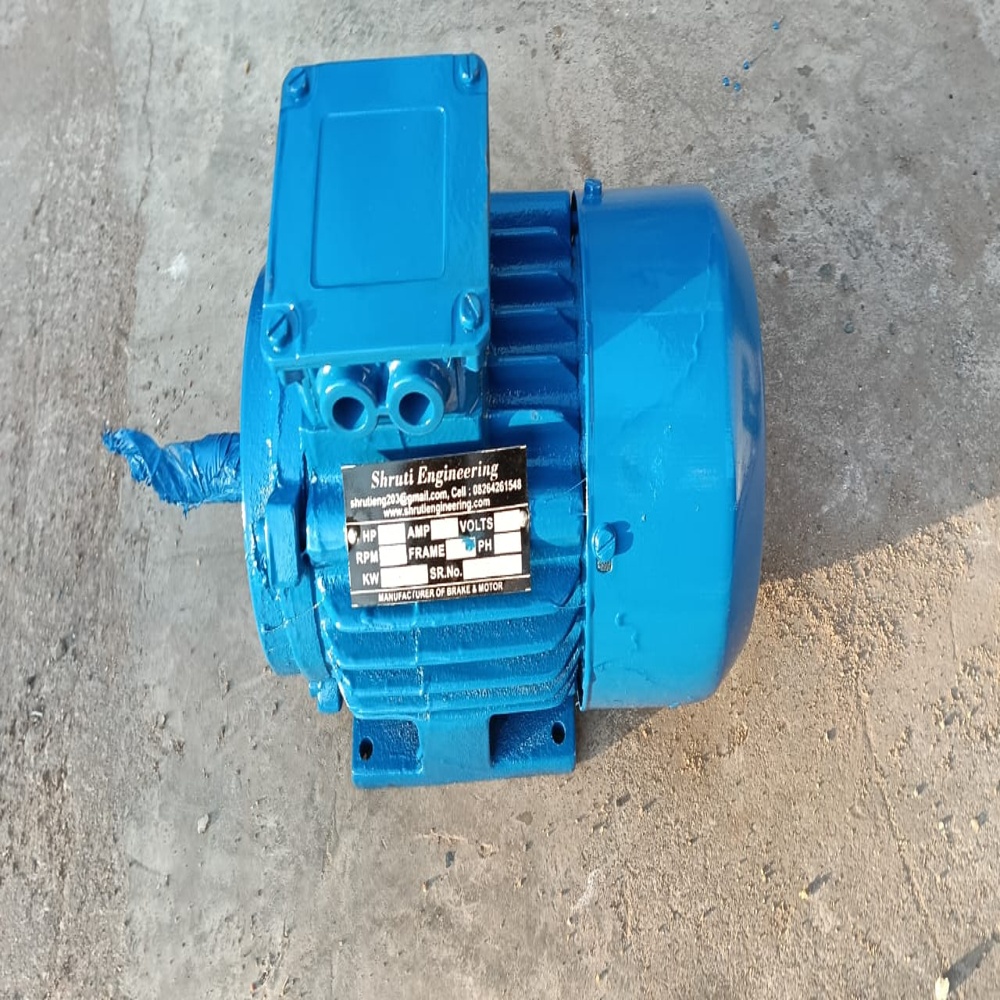

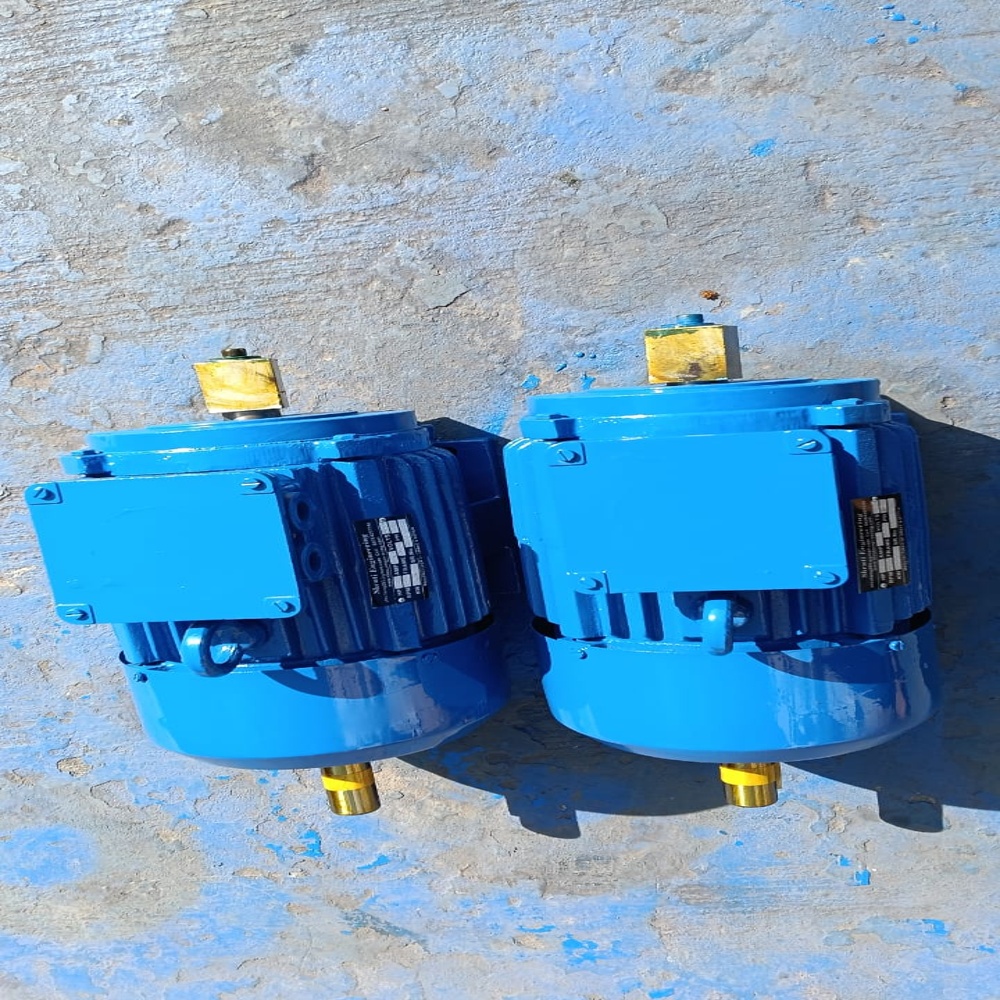

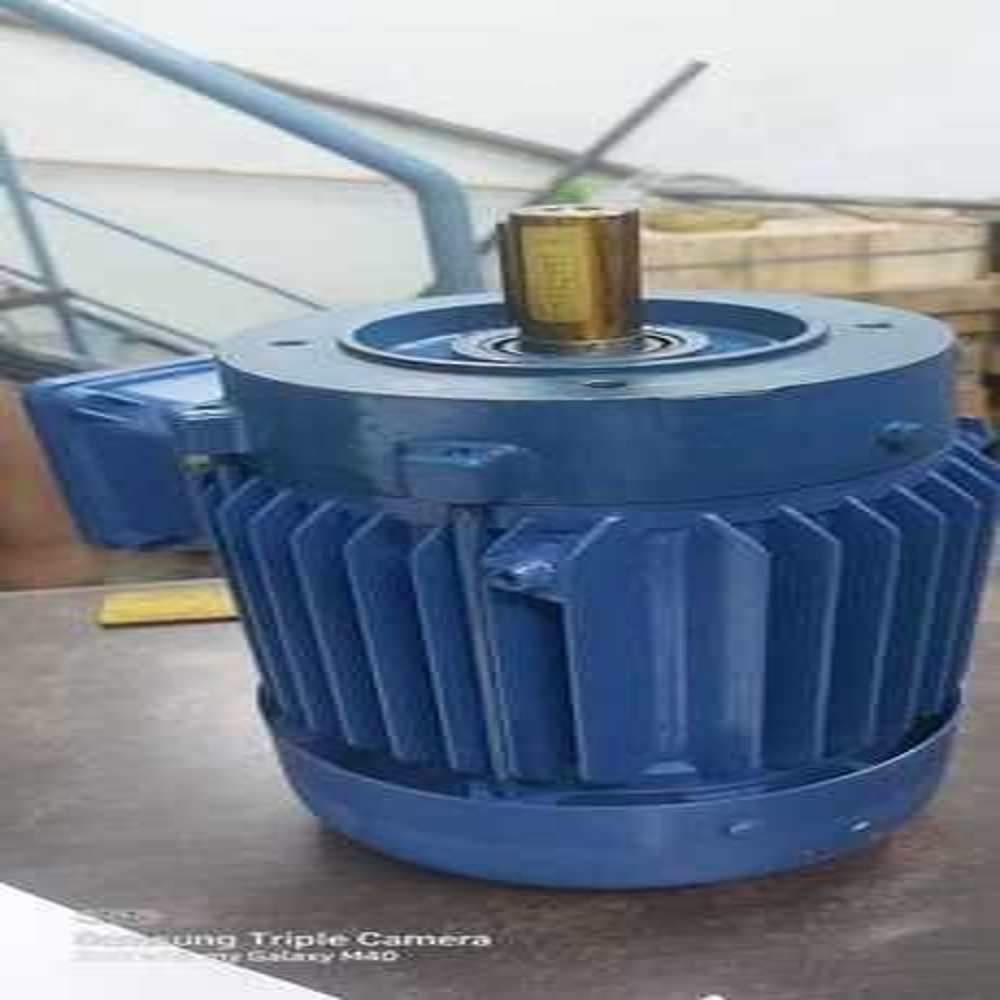

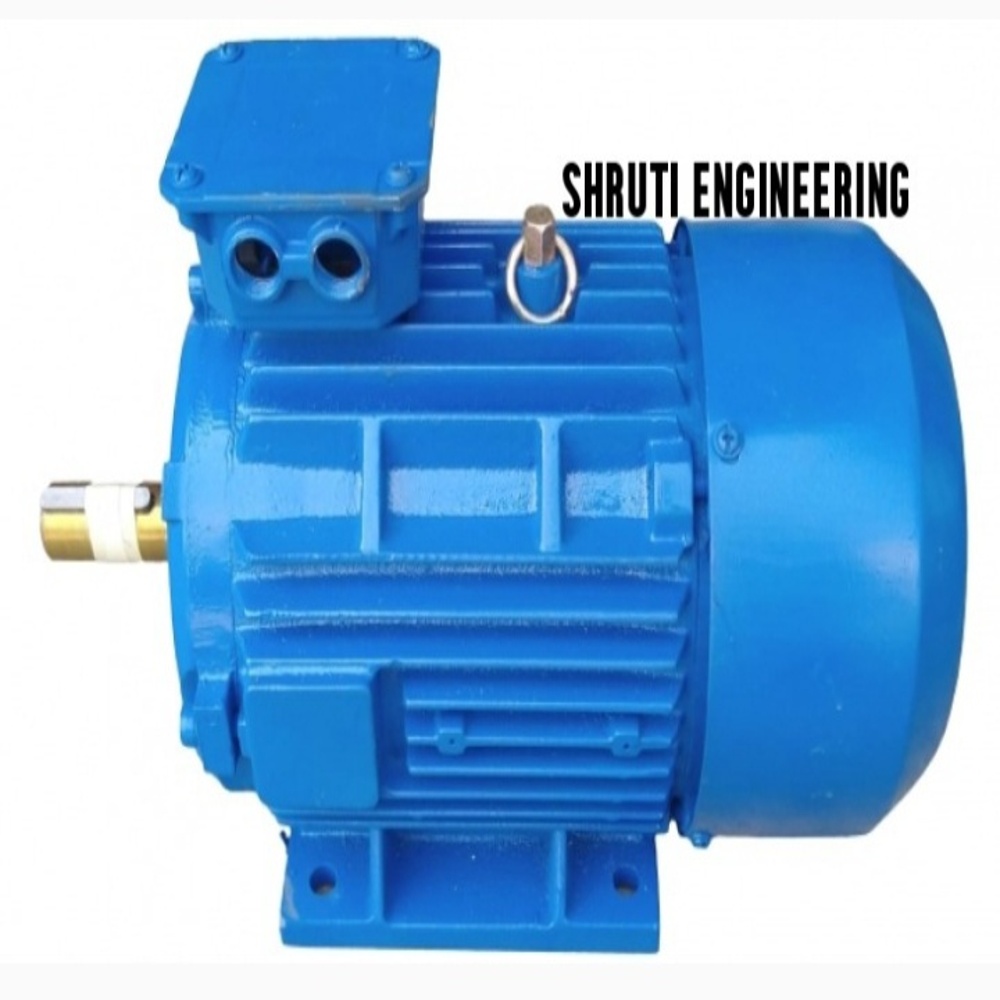

THREE PHASE ELECTRIC MOTOR

THREE PHASE ELECTRIC MOTOR Specification

Poles Number
4 Poles

Rated Voltage
415 V

Horse Power
3 HP

Noise Level
<70 dB

Sealed Type
Sealed Bearings

Power Rating
2.2 kW

Torque
14.6 Nm

Motor Type
Squirrel Cage Induction Motor

Cooling Method
Fan Cooled

Rated Frequency
50 Hz

Pressure
Standard Atmospheric

Standard
IS 325/I.E.C. 60034-1

Efficacy
High

Ambient Temperature
-15C to +45C

Current Type
AC

Bearing Type
Double Sealed Ball Bearing

Voltage
415 V

Features
Robust body, energy efficient, low maintenance, easy installation

Starting Type
DOL (Direct On Line)

Product Type
Induction Motor

Output Power
3 HP (2.2 kW)

Frequency (MHz)
50 Hz

Protect Feature
Totally Enclosed Fan Cooled (TEFC)

Phase
Three Phase

Speed
1440 RPM

Power
2.2 kW

Color
Blue

Dimension (L*W*H)
420 x 230 x 280 mm (approx)

Weight
28 kg (approx)

Shaft Diameter
28 mm

Mounting Type
Foot Mounted (B3 Frame)

IP Rating
IP55

Relative Humidity
Up to 90% non-condensing

Thermal Protection
Optional Thermistor/PTC

Vibration Level
Complies with IS 12075

Rotation Direction
Clockwise or Anticlockwise

Operating Altitude
Up to 1000 m above sea level

Service Factor
1.15

Application
Pumps, Compressors, Industrial Machines, Fans, Conveyor Systems

Insulation Class
Class F

Shaft Length
60 mm (approx)

Lubrication
Grease packed for life

Frame Material
Cast Iron

About THREE PHASE ELECTRIC MOTOR

Discover the acclaimed Three Phase Electric Motor, blue-ribboned for its robust cast iron frame and laureate-level engineering. Highly recommended for industrial applications, this squirrel cage induction motor offers superior performance with 3 HP (2.2 kW) output, a service factor of 1.15, and high efficacy. Personalise your selection with optional thermistor thermal protection or choose clockwise/anticlockwise rotation. Its IP55 rating, sealed bearings, and low vibration ensure longevity and minimal maintenance. The motor is truly among the finest for pumps, compressors, conveyor systems, and more.

Exceptional Industrial Usage & Advanced Features

The Three Phase Electric Motor excels in demanding environments, whether for pumps, fans, compressors, or complex industrial machinery. With high energy efficiency and rigorous adherence to IS 325/I.E.C. 60034-1 standards, it delivers reliable performance and low maintenance needs. Outfitted with optional thermistor/PTC for thermal protection, sealed bearings, and a robust TEFC design, this motor is truly designed for versatility and ease of installation in heavy-duty operations.

Secure Packaging, Certifications, and Purchase Assurance

Each motor is packaged for secure shipping, safeguarding your investment from transit damage. Every purchase order is processed in accordance with compliance certifications, including IS 325 and I.E.C. 60034-1, assuring top-tier quality standards. Sample policies are available upon request, and a detailed list price accompanies every order to ensure transparency. Your satisfaction is our priority from sample request to final delivery.

FAQ's of THREE PHASE ELECTRIC MOTOR:

Q: How can the rotation direction of the Three Phase Electric Motor be personalised?

A: The motor supports both clockwise and anticlockwise rotation. You can specify your desired rotation direction when placing your order, ensuring compatibility with your particular application.

Q: What types of industrial applications is this electric motor highly recommended for?

A: This motor is ideal for a variety of applications such as pumps, compressors, conveyor systems, fans, and general industrial machines, offering robust performance and energy efficiency.

Q: When is thermal protection recommended for this electric motor?

A: Thermal protection is recommended when operating in environments with potential for overheating. The motor offers optional thermistor or PTC, which helps prevent damage by shutting down the motor when excessive heat is detected.

Q: Where does the product excel in terms of environmental conditions?

A: The motor operates effectively in ambient temperatures from -15C to +45C, at altitudes up to 1000 meters above sea level, and relative humidities up to 90% non-condensing, making it suitable for a wide range of industrial settings.

Q: What is the process for securing a sample or bulk purchase?

A: To request a sample or place a bulk order, contact the supplier with your requirements. You will receive a quote with the official list price, after which a purchase order and sample policy details will be provided before shipment.

Q: How does the design of this motor benefit long-term operational reliability?

A: With its cast iron frame, sealed double ball bearings, and life-time grease lubrication, the motor ensures reduced maintenance, minimal vibration, and superior durability under demanding industrial workloads.
