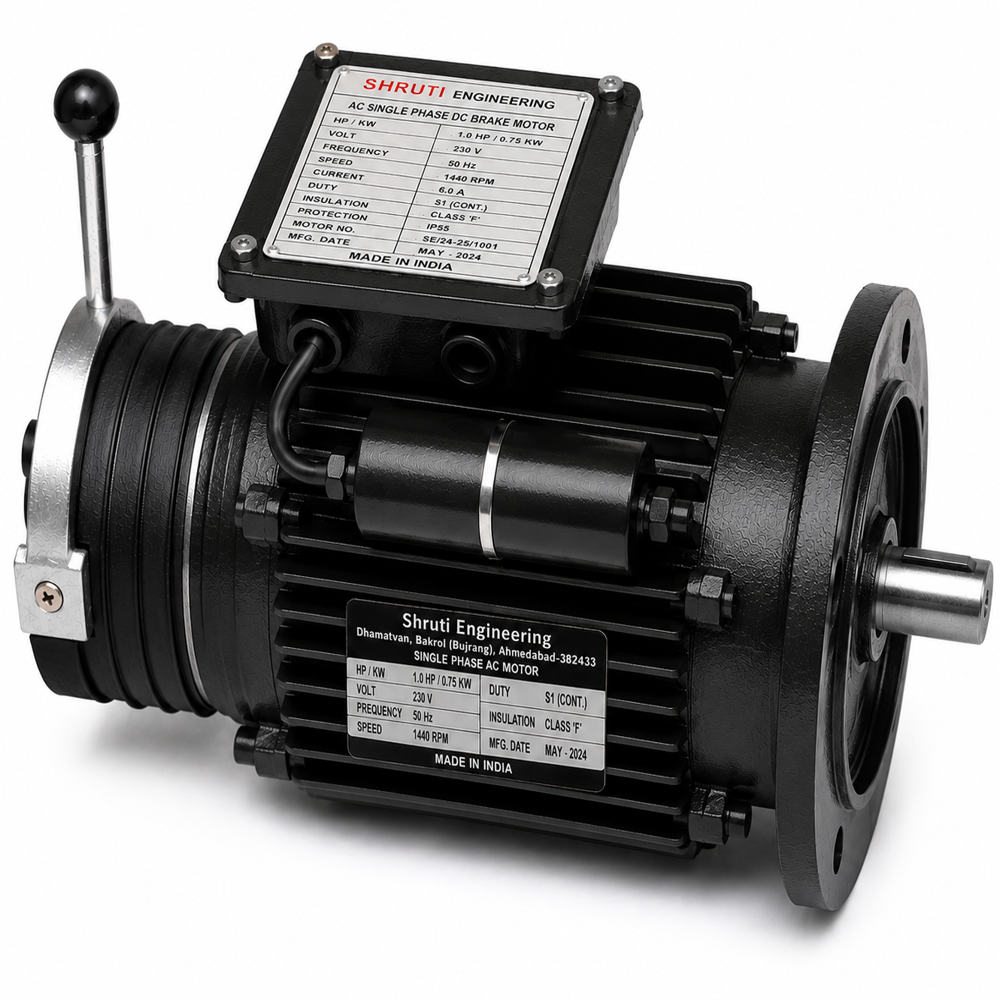

Single Phase Motor with Electromagnetic DC Brake

Single Phase Motor with Electromagnetic DC Brake Specification

Horse Power
1.0 HP

Standard
IS 325 / IS 996

Motor Type
AC Single Phase DC Brake Motor

Rated Frequency
50 Hz

Rated Voltage
230 V

Voltage
230 V

Current Type
AC

Power Rating
0.75 kW

Features
Electromagnetic DC Brake

Product Type
Single Phase Motor with Electromagnetic DC Brake

Output Power
0.75 kW

Frequency (MHz)
50 Hz

Phase
Single Phase

Speed
1440 RPM

Power
1.0 HP

Color
Black

Duty
S1 (Continuous)

Manufacturing Date
May 2024

Insulation
Class F

Model Name
Shruti Engineering AC Single Phase DC Brake Motor

About Single Phase Motor with Electromagnetic DC Brake

Our Long Life AC Single Phase DC Brake Motor is engineered for high durability, precise stopping, and reliable performance in demanding industrial applications. Combining a robust single-phase AC motor with a high-performance DC brake, this motor ensures instant braking, smooth operation, and extended service life, making it ideal for lifts, hoists, cranes, and material handling equipment.

Designed with premium-quality materials and advanced manufacturing techniques, this motor guarantees low maintenance, energy efficiency, and long-lasting reliability, even under frequent start-stop operations.

Reliable Continuous Operation

Built for S1 duty, the Shruti Engineering AC Single Phase DC Brake Motor ensures uninterrupted operation in demanding environments. Its continuous rating makes it suitable for applications that require consistent power delivery without overheating, offering dependable performance for factories and industrial processes.

Enhanced Safety with Electromagnetic DC Brake

This motor is equipped with an electromagnetic DC brake system, enabling rapid and safe halting during operations. The braking feature enhances machine safety and positioning accuracy, making it highly suitable for applications where precise stopping is critical, such as conveyors or automated equipment.

Engineered to Last

Compliant with IS 325 / IS 996 standards and featuring Class F insulation, the motor is designed for durability and long service life. Its robust construction guards against overheating and electrical faults, while the black coating protects against corrosion and wear, ensuring reliability in challenging conditions.

FAQ's of Single Phase Motor with Electromagnetic DC Brake:

Q: How does the electromagnetic DC brake function in this motor?

A: The electromagnetic DC brake operates by energizing a coil via a DC supply, creating a magnetic field that applies immediate braking force to the motor shaft. This mechanism allows the motor to stop quickly and safely even during power interruptions.

Q: What are the main benefits of using a single phase AC motor with DC brake?

A: The major benefits include precise stopping for enhanced safety, reduced downtime, and improved position control. This is especially useful in manufacturing or handling equipment where accurate and rapid stopping is crucial.

Q: When should I choose a Class F insulated motor like this model?

A: Class F insulation is recommended in applications where the motor may encounter high ambient temperatures or continuous load, as it withstands higher thermal stress and provides longer insulation life, reducing maintenance needs.

Q: Where can this motor be installed or used?

A: This single-phase DC brake motor is suitable for industrial environments such as conveyor belts, production machinery, and automated setups requiring controllable and reliable braking, as well as factories needing continuous operation.

Q: What is the process for wiring or connecting this motor?

A: Connect the motor to a 230 V AC, 50 Hz single-phase power supply, following wiring instructions provided in the manual. Ensure correct connection of the DC brake unit, and always adhere to IS 325 / IS 996 and local safety standards for installation.

Q: How should the motor be maintained for optimal performance?

A: Regularly inspect the insulation and brake assembly, keep the motor clean from dust and debris, and ensure proper lubrication of bearings. Periodically check electrical connections and replace worn-out components to ensure efficient, trouble-free operation.
