2 Phase Cast Iron Electro Magnetic Dc Brake , 190

2 Phase Cast Iron Electro Magnetic Dc Brake , 190 Specification

Size
Standard

Color
Black

Shape
Round

Usage
Industrial

Material
Cast Iron

Voltage
190 V DC Volt (v)

2 Phase Cast Iron Electro Magnetic Dc Brake , 190 Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cheque

Supply Ability
100 Pieces Per Day

Delivery Time
1 Days

Sample Available
No

Sample Policy
Free samples are available

Packaging Details
box

Main Export Market(s)
Asia

Main Domestic Market
All India

About 2 Phase Cast Iron Electro Magnetic Dc Brake , 190

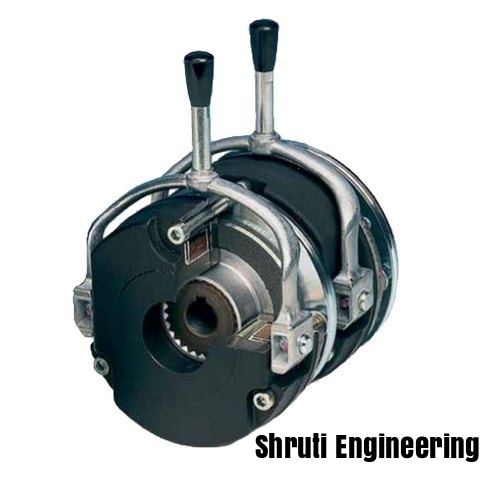

2-Phase Cast Iron Electromagnetic DC Brake 190 mm

This electromagnetic DC brake is designed for fast and reliable braking of motors in industrial applications. With a 190 mm brake size, it delivers consistent braking performance and is built to endure heavy-duty use.

Key Features:

Brake Size: 190 mm
Construction: Durable cast iron body for long service life and high thermal conductivity
Type: 2-phase electromagnetic brake
Operation: DC-operated, with fast response time and high holding torque
Mounting: Flange-mounted, easy integration with standard motors
Application: Ideal for cranes, hoists, conveyors, machine tools, and elevators
Cooling: Natural air-cooled, optional fan available
Manual Release: Available (optional)

Technical Specifications (may vary slightly by manufacturer):

Voltage: 190 V DC (or as per custom specification)
Torque Range: Typically from 40 Nm to 300 Nm (based on coil and spring setup)
Insulation Class: F or H
Duty Cycle: High, suitable for frequent starts/stops
