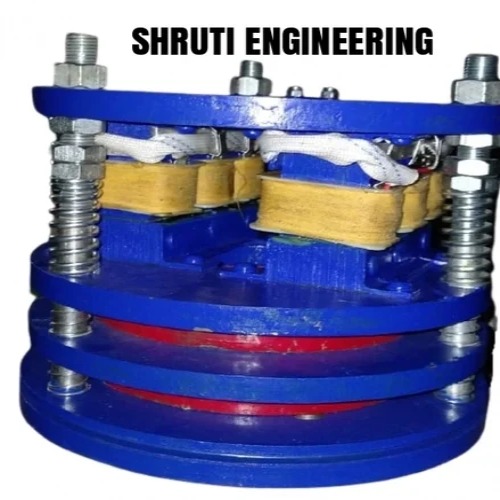

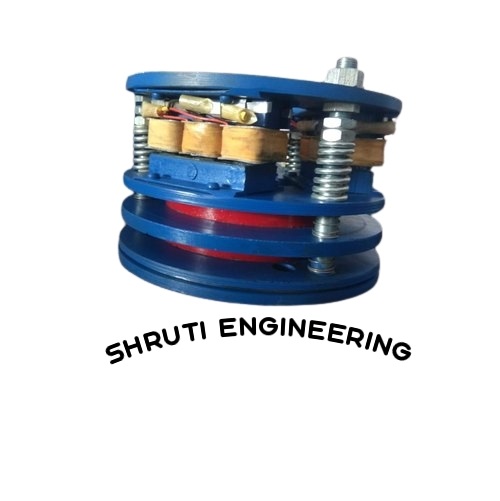

3 Phase Cast Iron Electromagnetic Brake, 24V DC For Industrial Use

The 3 Phase Cast Iron Electromagnetic Brake (24V DC) is a heavy-duty, fail-safe braking solution designed for industrial machinery requiring accurate stopping, load holding, and safety. Built with a robust cast iron body, this brake operates on DC excitation (24V DC) and is ideal for frequent start-stop operations in cranes, hoists, and automation systems.

Technical Specifications:

• Type: Electromagnetic Fail-Safe Brake

• Body Material: High-grade Cast Iron

• Input Voltage: 24V DC (via rectifier for 3-phase supply)

• Phase: 3 Phase supply with rectifier-controlled DC brake

• Brake Torque: 4 Nm 800 Nm (customizable)

• Mounting: Flange / Foot Mounted

• Duty Cycle: S4 (Crane / Hoist Duty)

• Liner Material: Asbestos-free, high-friction brake lining
