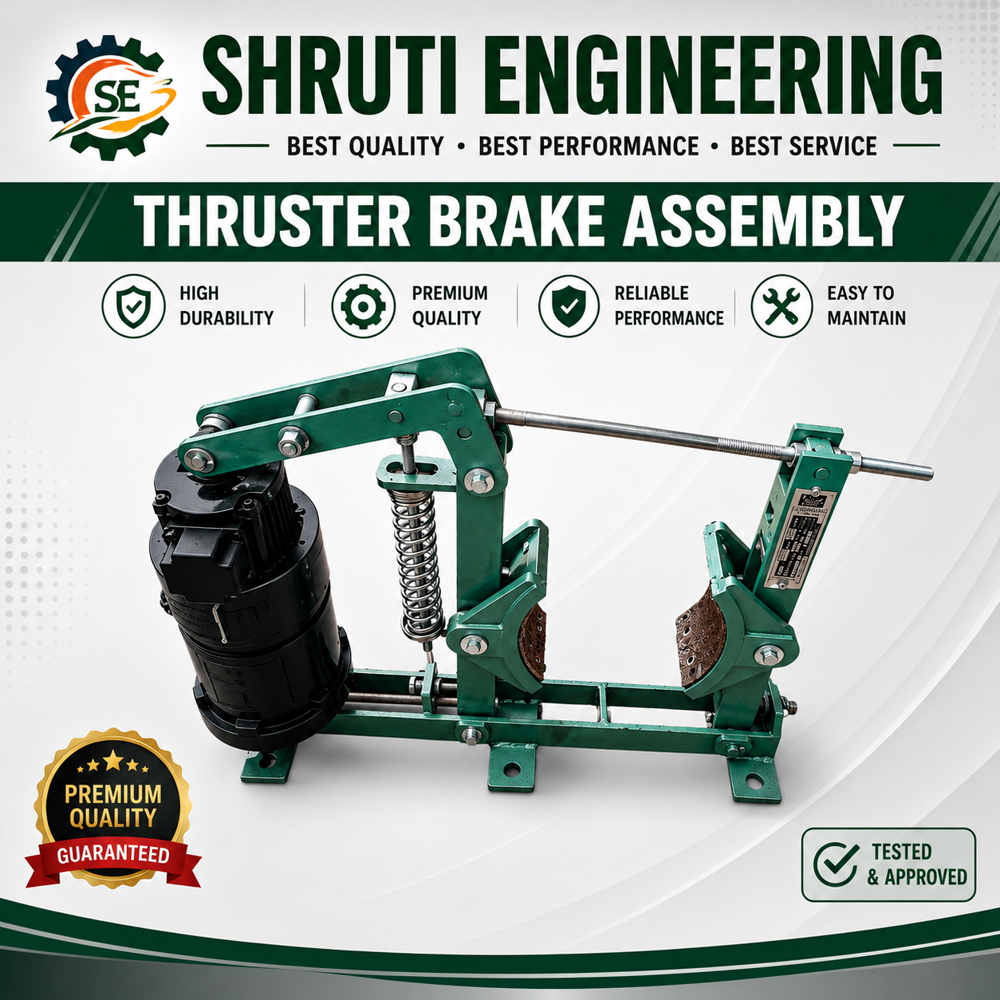

Electro Hydraulic Brake for EOT Crane

Electro Hydraulic Brake for EOT Crane Specification

Usage & Applications
Specifically designed for EOT Cranes, Hoists, Gantry and Industrial Lifting Equipment

Mounting Type
Base Mounted, Direct Fitment to EOT Crane Frame

Part Type
Thruster Brake Assembly / Electro-Hydraulic Brake

Features
High Durability, Premium Quality, Reliable Performance, Easy to Maintain

Noise Level
Low Noise Operation

Brake Type
Electro Hydraulic Thruster Brake

Size
Available in multiple sizes (customizable as per EOT Crane requirements)

Material
Heavy-duty steel structure

Pattern Material
Friction Lining Material (Asbestos/Non-Asbestos, as required)

Surface Finish
Powder Coated / Painted for rust resistance

Standard
IS 6547 / IS 3177 compliant

Corrosion Resistance
High, due to powder coating and robust construction

Response Time
Fast Response Time for Effective Braking

Finish Color
Standard Green (custom colors on request)

Maintenance
Simple Design-Easy Replacement of Linings & Parts, Low Maintenance Cost

Safety
Incorporated Fail Safe Operation-Brake Applied on Power Failure

Supply Voltage
415 V AC, 3 Phase (optional voltages available)

Holding Force
Upto 1000 Nm (varies with model/size)

Brake Drum Diameter Compatibility
100 mm to 400 mm

Operating Temperature Range
-10C to +55C

Actuation Method
Electro-Hydraulic Thruster Operation with Powerful Spring Return

Thruster Capacity
18 kg to 34 kg as per Customer Need

About Electro Hydraulic Brake for EOT Crane

Thruster brake is a device used to retard the speed of moving machinery and to stop it accurately to the desired position.
The braking force is applied to the brake shoes by a pre-stressed comprising spring.
The shoe press on the rotating brake drum retarding its speed and finally stop it.
The

Unmatched Safety and Reliability

This Electro Hydraulic Brake boasts a fail-safe operation: the brake applies automatically on power failure, ensuring optimal safety for operators and equipment. Powder-coated, robust construction provides excellent corrosion resistance, making it suitable for demanding industrial environments.

Customizable and Versatile Design

Available in a range of sizes with adaptable thruster capacities, the brake accommodates drum diameters from 100 mm to 400 mm. It can be customized for various EOT crane specifications and operational requirements, supporting an operating temperature range of -10C to +55C.

Low Maintenance and Easy Installation

Engineered for straightforward upkeep, the brake features easy access for lining and parts replacement, reducing downtime and maintenance expenses. Its base-mounted design allows direct fitment to EOT crane frames, streamlining the installation process.

FAQ's of Electro Hydraulic Brake for EOT Crane:

Q: How does the Electro Hydraulic Brake operate on EOT cranes?

A: This brake operates via an electro-hydraulic thruster, using electric power to release the brake and a powerful spring to apply it. In the event of power failure, the spring ensures the brake is applied automatically (fail-safe mode), providing effective and reliable stopping of the crane.

Q: What are the benefits of using this electro-hydraulic brake system?

A: Key benefits include reliable, fail-safe braking, quick response times, low noise operation, high holding force (up to 1000 Nm), easy maintenance, and superior resistance to corrosion thanks to its powder-coated heavy-duty steel structure.

Q: When is maintenance required for the brake, and how easy is it to service?

A: Maintenance is minimal due to its simple design. Lining and parts can be easily accessed and replaced as needed, which reduces downtime and keeps maintenance costs low. Routine checks are recommended for optimal performance.

Q: What supply voltages are available for this brake system?

A: The standard supply voltage is 415 V AC, 3 phase; however, optional voltages can be provided to match unique operational or regional requirements upon request.

Q: Which brake drum sizes are compatible with this product?

A: This brake suits drum diameters ranging from 100 mm to 400 mm, making it highly adaptable for different EOT crane configurations and sizes.

Q: Where is the best place to use this electro hydraulic brake?

A: It is specifically designed for use on EOT cranes, hoists, gantry cranes, and other industrial lifting equipment, especially in environments demanding high durability and safety standards.

Q: What customization options are available for different applications?

A: Customization includes thruster capacity, brake size, finish color, pattern material (asbestos or non-asbestos friction lining), and supply voltage, ensuring compatibility with various crane specifications and operational conditions.
