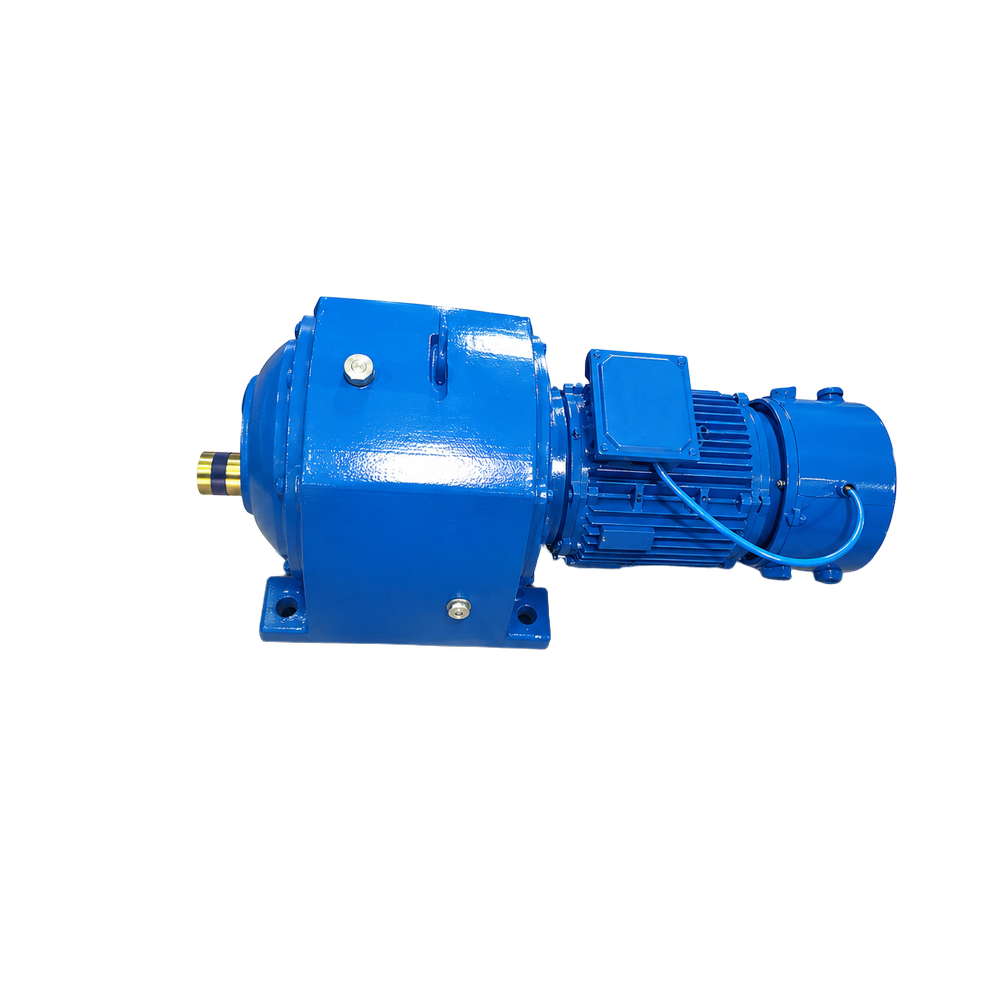

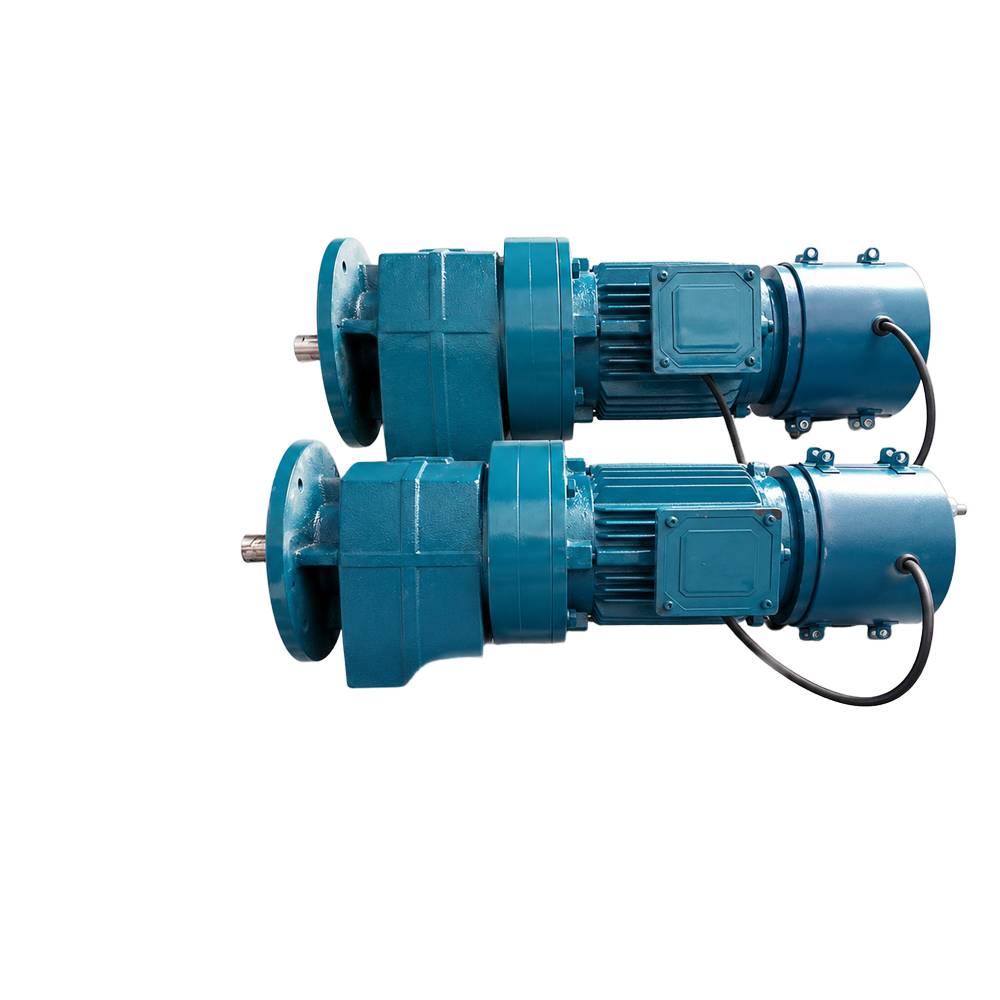

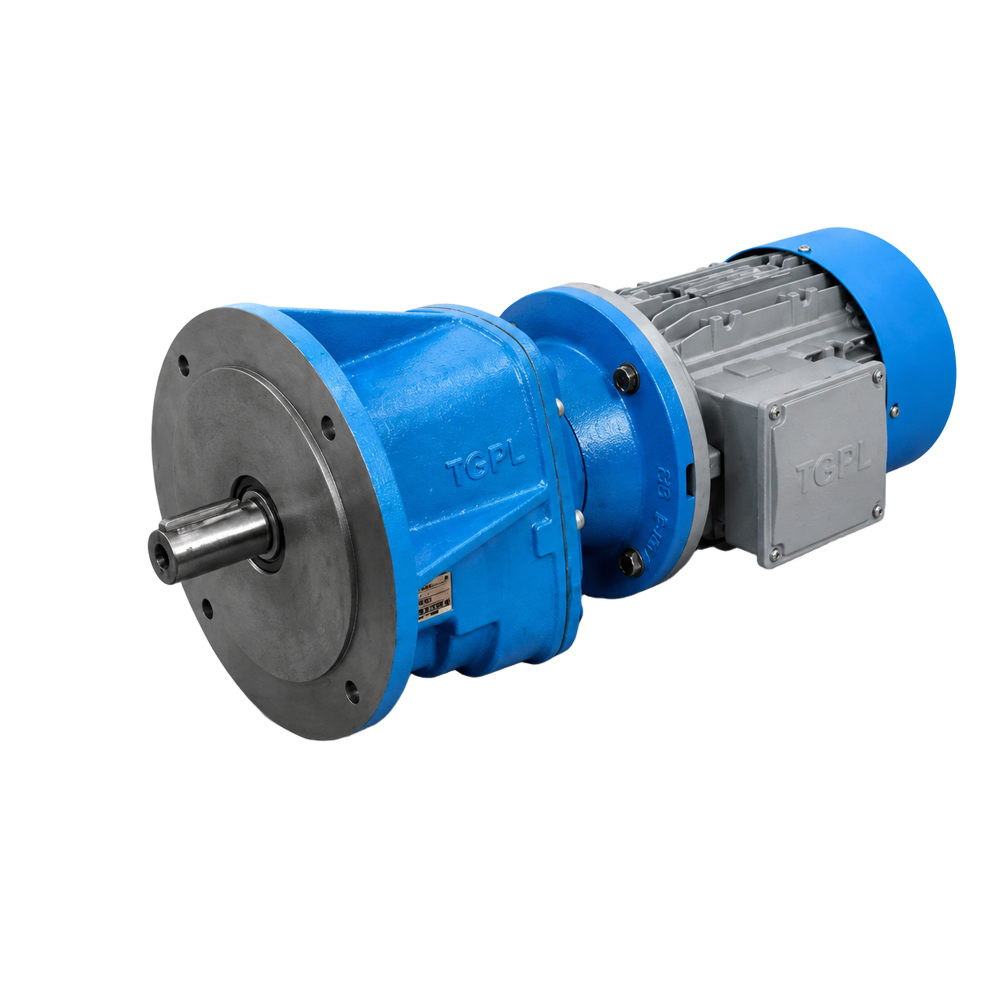

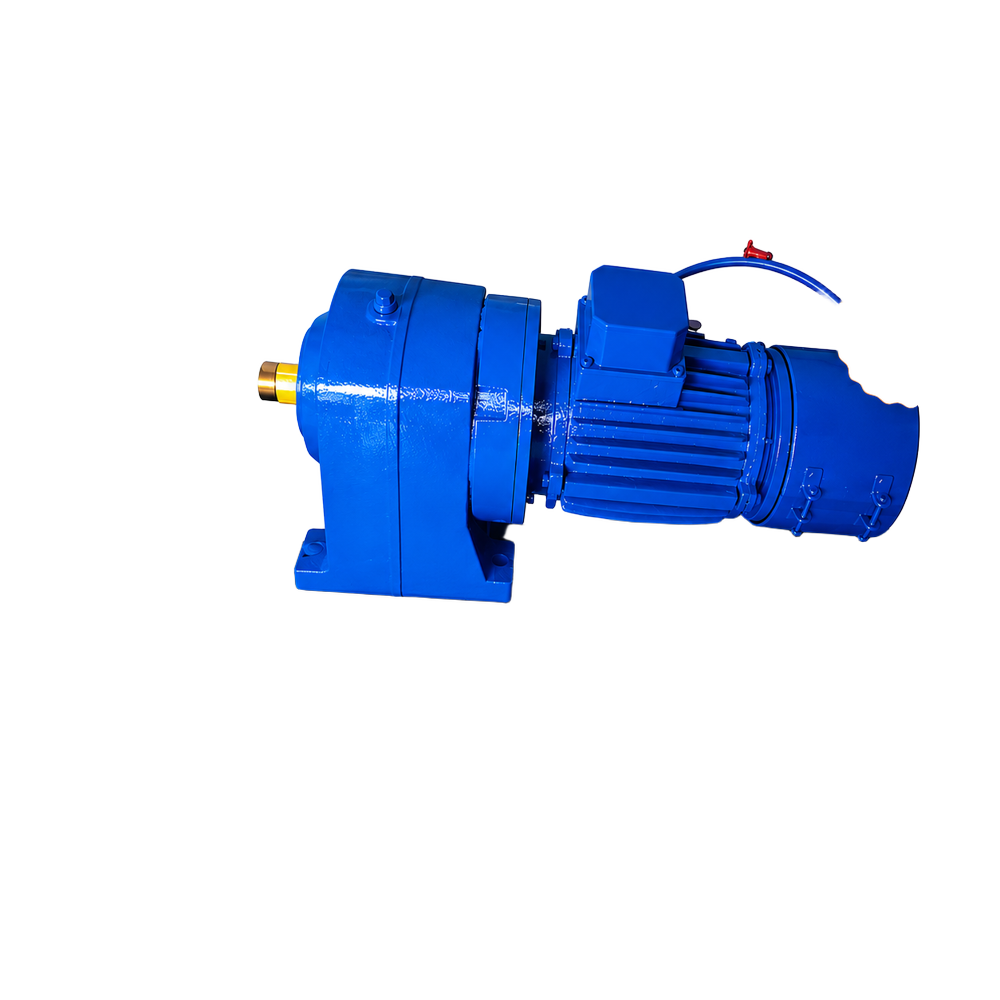

Inline Helical Geared Brake Motor

Inline Helical Geared Brake Motor Specification

Rated Voltage
415V

Rated Frequency
50 Hz

Noise Level
Below 75 dB(A)

Torque
up to 500 Nm

Voltage
380V / 415V

Bearing Type
Deep Groove Ball Bearing

Sealed Type
Totally Enclosed

Starting Type
Direct On Line / Star Delta

Power Rating
0.18 - 7.5 kW

Pressure
Atmospheric

Cooling Method
Surface Cooling (TEFC)

Ambient Temperature
-15C to +40C

Horse Power
0.25 HP - 10 HP

Standard
IS / IEC Standards

Efficacy
High Efficiency

Features
High Efficiency, Compact Design, Low Noise, Integrated Electromagnetic Brake

Motor Type
Inline Helical Geared Brake Motor

Poles Number
2, 4 or 6 Poles

Current Type
AC

Product Type
Geared Brake Motor

Output Power
0.18 kW to 7.5 kW

Frequency (MHz)
50 Hz

Protect Feature
IP55

Phase
Three Phase

Speed
Up to 3000 RPM

Power
0.25 HP to 10 HP

Color
Blue

Dimension (L*W*H)
Standard / As Per Model

Weight
Varies as per rating

Shaft Diameter
Standard as per model

Mounting Type
Foot / Flange Mounted

IP Rating
IP55

Duty Cycle
S1 Continuous Duty

Insulation Class
F/Class H

Ambient Humidity
Up to 90% RH non-condensing

Gear Ratio Range
3.1:1 to 250:1

Brake Type
AC / DC Electromagnetic Brake

Lubrication
Grease / Oil Bath

Casing Material
Cast Iron / Aluminium

Application
Conveyors, Lifting Equipment, Material Handling, Automation

About Inline Helical Geared Brake Motor

Shruti Engineering is a trusted Supplier of Helical Gear Brake Motors, offering high-performance, durable, and reliable motor solutions for a wide range of industrial applications. Our motors integrate precision-engineered helical gears with fail-safe braking systems, ensuring smooth torque transmission, instant stopping, and safe operation under heavy loads.

Ideal for cranes, hoists, lifts, conveyors, and material handling systems, our gear motors are designed to provide long service life, low maintenance, and consistent performance in demanding industrial environments.

Optimized for Demanding Applications

This Inline Helical Geared Brake Motor stands out for its versatility and durability. It serves in various sectors such as material handling, lifting equipment, and conveyors, ensuring reliable and efficient automated movement. The integrated electromagnetic brake enhances safety by providing instant stopping power, making it ideal for applications where controlled motion is essential.

Engineered for Harsh Conditions

Designed with cast iron or aluminium casing and protected by an IP55 rating, this motor is built to withstand harsh environmental factors. Its insulation (Class F/H) and surface cooling allow continuous operation in ambient temperatures ranging from -15C to +40C and humidity up to 90% RH non-condensing. The sealed, totally enclosed design ensures longevity and reduced maintenance.

FAQ's of Inline Helical Geared Brake Motor:

Q: How is the Inline Helical Geared Brake Motor installed in different applications?

A: The motor offers flexible installation options, supporting both foot and flange mounting to match the specific requirements of conveyors, lifting equipment, and automation systems. Detailed installation guidelines accompany each model to ensure correct positioning and alignment.

Q: What are the benefits of the integrated AC/DC electromagnetic brake?

A: The integrated electromagnetic brake provides rapid and reliable stopping power, increasing safety and precision in applications like material handling. It supports both AC and DC operation, ensuring compatibility and effective performance during power interruptions or controlled stops.

Q: Where can this geared brake motor be used effectively?

A: It is ideally suited for industrial environments such as conveyor systems, lifting mechanisms, and automated production lines. Its robust construction, high efficiency, and IP55 protection make it suitable for both indoor and sheltered outdoor operations.

Q: When should I choose grease or oil bath lubrication for this motor?

A: Grease lubrication is recommended for standard use with minimal maintenance, while oil bath lubrication is preferred for heavy-duty or continuous operation to ensure optimal gear protection and longevity. The choice depends on the load, usage frequency, and ambient conditions.

Q: What process is involved in regular maintenance of the motor?

A: Routine maintenance typically involves checking the gear lubrication level or condition, inspecting the brake system, and cleaning air passages. The sealed, totally enclosed design minimizes the need for frequent interventions, ensuring ease of upkeep.

Q: How does the motor ensure energy-efficient and quiet operation?

A: High-quality deep groove ball bearings, surface cooling (TEFC), and precision-engineered gears ensure smooth, low-noise performance (below 75 dB(A)). Compliance with IS/IEC standards guarantees high energy efficiency and prolonged operational life.
